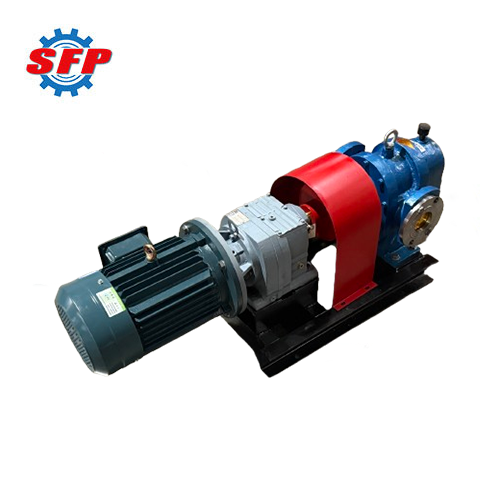

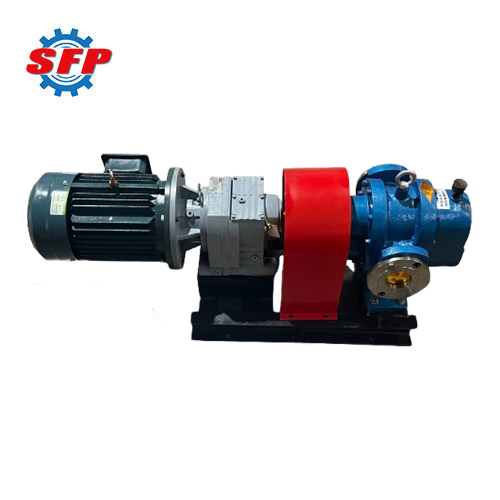

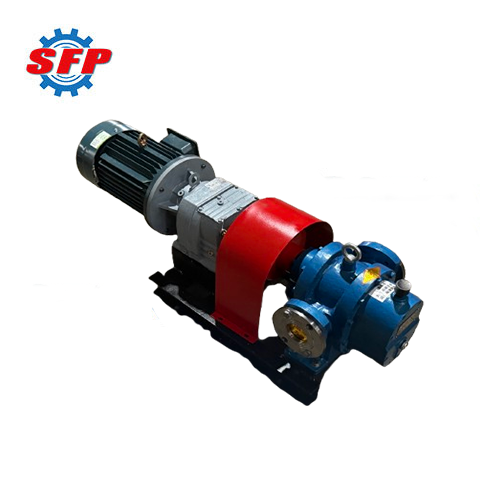

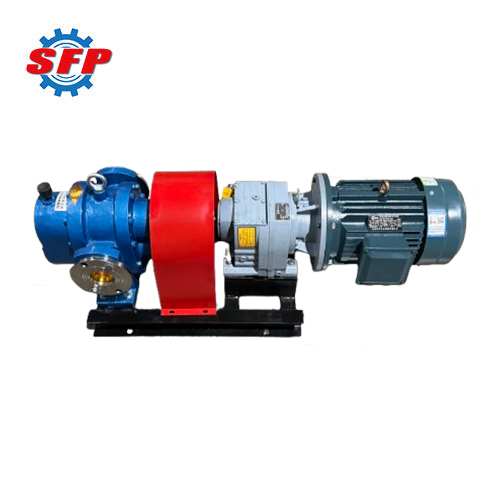

Large Quantity LC Series Horizontal High Viscosity Roots Gear Pump for Asphalt

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

LPG Gas Pump for Sale

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

LC roots pumps are primarily intended to convey lubricating oil or liquid media with properties similar to lubricating oil that are free of solid particles and fibers and non-corrosive, making them particularly well suited for handling high-viscosity liquids and media containing a certain amount of particles. This pump utilizes two continuously rotating rotors to draw in and discharge the medium, providing stable flow rates in applications such as fuel delivery, oil circulation, loading and unloading, and the transfer of high-viscosity materials. It minimizes fluctuations in material supply, ensuring smooth downstream production and improving production efficiency.

Product Details:

When the unit is in operation, the two rotors rotate in sync in the preset direction, forming multiple relatively independent working chambers between the rotors and the pump housing. As the rotors rotate from the suction side, the volume of the working chambers gradually increases, drawing in fluid, and continues to move the fluid along the pump chamber toward the discharge end. Upon reaching the discharge port area, the volume of the working chambers changes, continuously discharging the fluid.

Application:

LC roots pumps transfer fuel oil, lubricating oil, and heavy oil in the petroleum and petrochemical industries, and are also used to transfer resins, polymers, additives, and viscous chemical liquids in chemical production. In addition, they can transfer high-viscosity media such as syrups, fats and oils, and thick liquids in the food and personal care industries.

Feature:

1. LC Roots pumps are well-suited for high-viscosity media. For heavy oil, asphalt, and similar media with poor flowability at room temperature, the viscosity can be reduced through heating, temperature maintenance, or trace heating to ensure smooth conveyance.
2. For different media, appropriate materials and seal types can be selected based on temperature, viscosity, and corrosiveness.
3. The relative sliding speed of the rotors is extremely low, resulting in smooth operation, minimal wear, low noise, and a long service life.

Performance Data:

Model	Flow m³/h	Pressure Mpa	Inlet&Outlet Size mm	Motor		Speed r/min
Model	Flow m³/h	Pressure Mpa	Inlet&Outlet Size mm	Model	Power KW	Speed r/min
LC-10/0.6	10	0.6	40	100L 2 -4	3.0	400
LC-18/0.6	18	0.6	50	I 132S-4	5.5	400
LC-18/0.6	18	0.6	50	II 112S-4	4.0	400
LC-38/0.6	38	0.6	65	132M-4	7.5	400
LC-50/0.6	50	0.6	80	180M-4	11	445
LC-80/0.6	80	0.6	200	225M-6	30	209
LC-100/0.6	100	0.6	200	250M-6	37	254
LCT-10/0.6	10	0.6	40	100L 2 -4	3.0	400
LCT-18/0.6	18	0.6	50	I 132S-4	5.5	400
LCT-18/0.6	18	0.6	50	II 112M-4	4.0	400
LCT-38/0.6	38	0.6	65	132M-4	7.5	400
LCT-50/0.6	50	0.6	80	180M-4	11	445
LCT-80/0.6	80	0.6	200	225M-6	30	209
LCT-100/0.6	100	0.6	200	250M-6	37	254
LCW-10/0.6	10	10	40	100L 2 -4	3.0	400
LCW-18/0.6	18	0.6	50	I 132S-4	5.5	400
LCW-18/0.6	18	0.6	50	II 112M-4	4.0	400
LCW-38/0.6	38	0.6	65	132M-4	7.5	400
LCW-50/0.6	50	0.6	80	180M-4	11	445
LCW-80/0.6	80	0.6	200	225M-6	30	206
LCW-100/0.6	100	0.6	200	250M-6	37
