Industrial CBN Electric High Viscosity Fuel Oil & Resin Gear Pumps

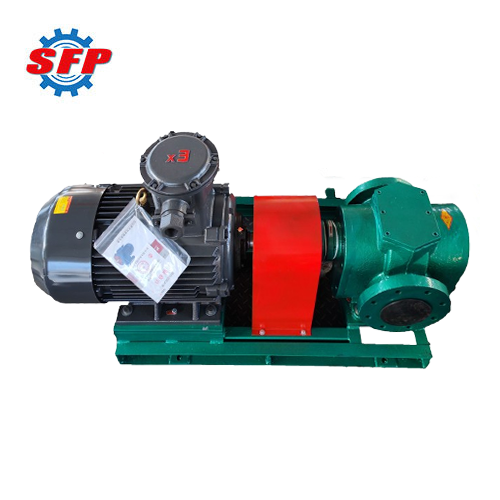

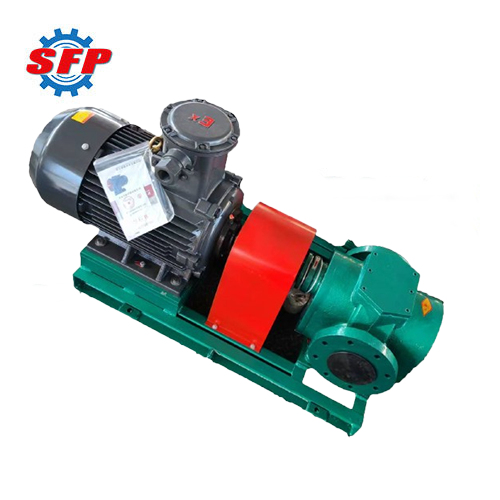

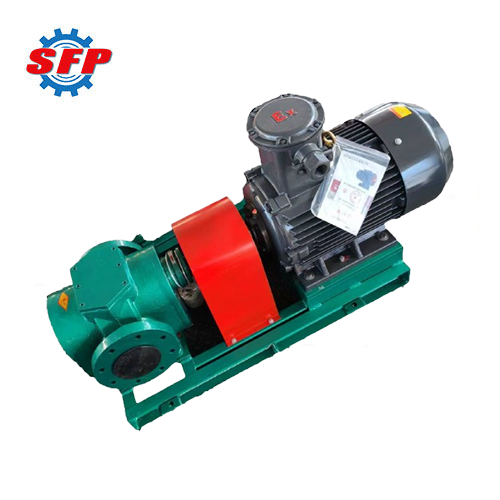

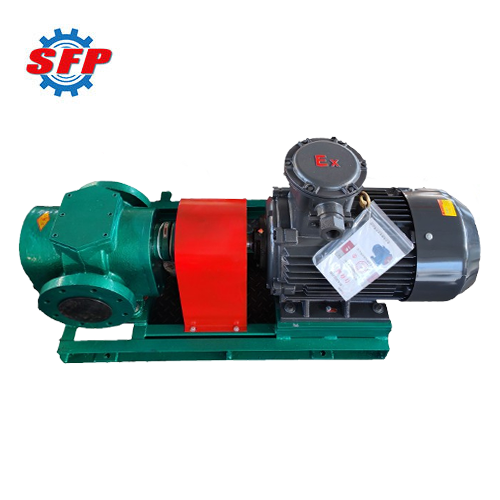

CBN Electric Fuel Gear Pump

CBN series gear pumps are engineered for conveying high-viscosity media and are suitable for materials such as asphalt, paraffin, rosin, paint, and sludge with viscosities below 2,000 mm²/s. They provide stable flow, reliable performance, low vibration, and excellent wear resistance, offering efficient and safe pumping solutions for industries such as food, pharmaceuticals, chemicals, and marine applications. With a compact overall design, easy installation, and a small footprint, these pumps allow users to select motors of different power ratings and materials based on specific operating conditions to meet the demands of continuous industrial production.

Power: 1.5-22kW

Flow Rate: 4-60m³/h

Speed: 930r/min

Send Email Chat Now

Share With:

Product Classification

Gear Pump

Centrifugal Pump

Rotary Lobe Pump

Screw Pump

LPG Gas Pump

Filling Machine

Self-Priming Pump

Diaphragm Pump

Vacuum Pump

Multistage Pump

Magnetic Pump

Chemical Pump

Application

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

LPG Gas Pump for Sale

Mineral Water Bottle Filling Machine

Product Description

Summarize:

CBN series high viscosity gear pump achieves continuous and uniform delivery of media such as asphalt, resins, syrups, fats and oils, lubricants, and heavy oil through the stable meshing of its gears. When conveying high-viscosity media, it maintains a stable flow rate and is less affected by changes in viscosity, keeping its high-efficiency delivery capacity and meeting long-term continuous production requirements. It offers the option of direct drive or belt drive depending on specific operating conditions, providing customers with customized pumping solutions to ensure smooth and efficient production.

Product Details:

After the CBN gear pump is started, the motor drives the drive gear to rotate, meshing with the driven gear, gradually increasing the volume at the suction inlet where the fluid enters the pump chamber under the influence of the pressure differential. Through the continuous rotation of the gears, the fluid is carried to the discharge port, with the re-meshing of the gears causing the enclosed space to continuously shrink, thereby discharging the fluid continuously and uniformly to ensure stable delivery.

Application:

CBN gear pumps are intended for handling media with temperatures below 230°C and viscosities not exceeding 2,000 mm²/s, such as asphalt, resins, rosin, syrups, vegetable oils, fuel oil, and diesel, which is diffusely applicable in industries including petroleum, chemicals, building materials, rubber, asphalt processing, consumer chemicals, and machinery manufacturing.

Feature:

1. The product features a compact and well-designed structure with a relatively small number of components, making maintenance and servicing more convenient and effectively reducing downtime and maintenance frequency.
2. This pump maintains high volumetric efficiency and low energy consumption during prolonged continuous operation, thereby improving conveying efficiency while significantly reducing production costs.
3. It supports various drive configurations, allowing for flexible selection based on production conditions to better accomplish conveying tasks.

Performance Data:

Model	Port (mm)	Flow (m³/h)	Flow (L/min)	Pressure (Mpa)	Speed (r/min)	Motor Power(w)
CBN -4	32	4	66	0.75	960	1.5
CBN -7	40	7	116	0.75	960	3
CBN -13	50	13	216	0.75	960	5.5
CBN -18	70	18	300	0.6	960	7.5
CBN -30	80	30	500	0.6	960	11
CBN -45	100	45	750	0.6	960	15
CBN -60	100	60	1000	0.4	960	22
