Product Description

Summarize:

KCB series horizontal gear pumps can be applied to handle lubricating oils or other liquids with properties similar to lubricating oils that do not contain solid particles and fibers, are non-corrosive, have temperatures not higher than 300°C, and have viscosities of 5-1500 cSt. Therefore, it can be used for fluid transportation in various industries such as chemical, petroleum, building materials, hardware, paint, grease, ship, dye, food as well as medicine. Moreover, in order to effectively reduce the energy consumption in the conveying process, the product adopts advanced gear design and precise manufacturing process.

Product Details:

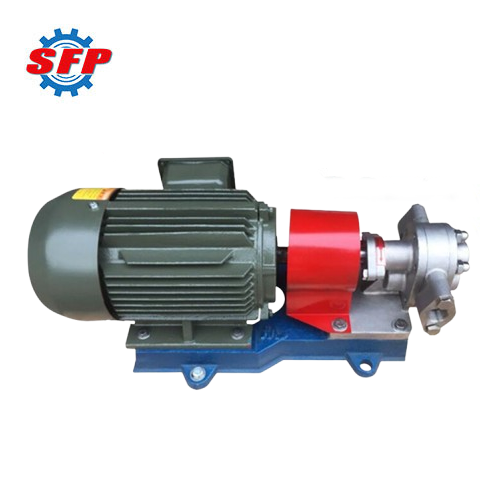

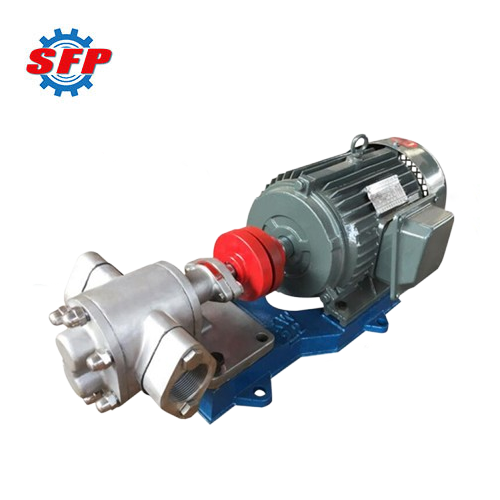

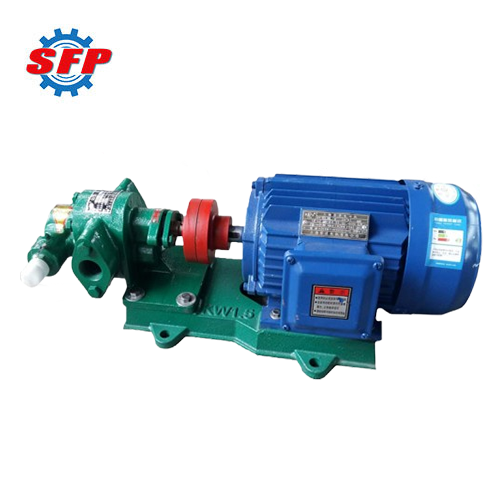

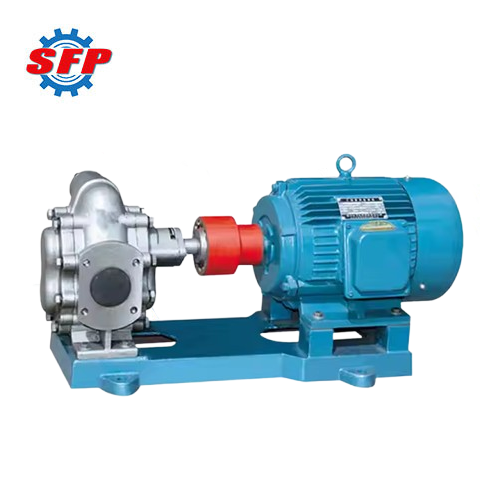

KCB series gear oil pumps are mainly composed of gears, shafts, pump body, valves and shaft end seals and other parts. The gears of this pump have been heat-treated by a special process and are characterized by high hardness and high strength, which extends the service life of the product. At the same time, we have designed reasonable discharge and return grooves. This design minimizes the torque of the gears during operation, resulting in low bearing load, less wear and high pump efficiency. The pump is also designed with a safety valve for overload protection, and the full return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump.

Application:

1. Pulp and Paper: Acid, soap, lye, black liquor, kaolin, lime, latex, sludge.
2. Chemicals: Sodium silicate, acids, plastics, mixed chemicals, isocyanates.
3. Petrochemicals: Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil.
4. Food: Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food.

Feature:

1. It can suction oil by itself without external force, which is convenient to use and especially suitable for some special working environments.
2. The optimized gear meshing structure and vibration damping design can generate low noise during operation, providing a quiet working environment.
3. Its advanced gear design and precision manufacturing process make the pump more efficient, which can effectively reduce the energy consumption in the conveying process.

Performance Data:

Model	Capacity Q		Speed	Exhaust Pressure P	Motor
Model	M³/H	L/Min	R/Min	Mpa	Power Kw
KCB-18.3	1.1	18.3	1400	1.45	1.5
KCB-33.3	2	33.3	1420	1.45	2.2
KCB-55	3.3	55	1400	0.33	1.5
KCB-83.3	5	83.3	1420	0.33	2.2
KCB-135	8	135	940	0.33	2.2
KCB-200	12	200	1440	0.33	4
KCB-300	18	300	960	0.36	5.5
KCB-483.3	29	483.3	1440	0.36	7.5
KCB-633	38	633	970	0.28	11
KCB-960	58	960	1470	0.28	11
KCB-1200	72	1200	740	0.6	37
KCB-1600	96	1600	980	0.6	45
KCB-1800	110	1800	740	0.6	55
KCB-2500	150	2500	985	0.6	75
KCB-2850	170	2850	740	0.6	90
KCB-3800	230	3800	989	0.6	110
KCB-4100	245	4100	743	0.6	132
KCB-5400	325	5400	989	0.6	160
KCB-5600	330	5600	744	0.6	160
KCB-7600	460	7600	989	0.6	200
KCB-7000	420	7000	744	0.6	185
KCB-9600	570	9600	989	0.6	250
KCB-13000	800	13000	490	0.6	315
