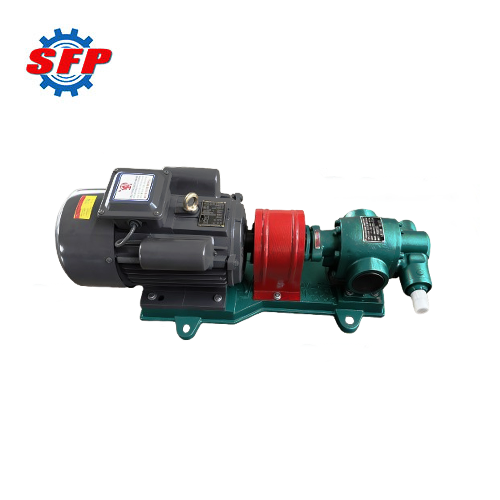

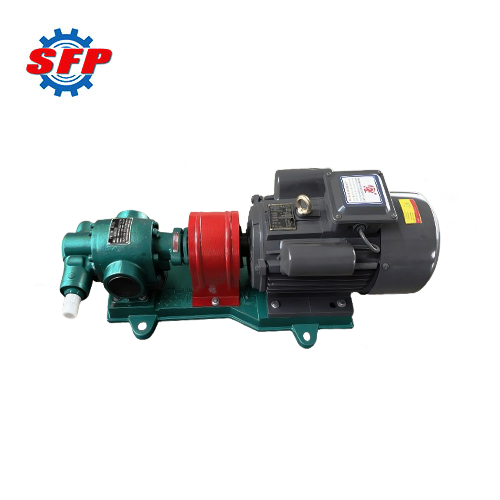

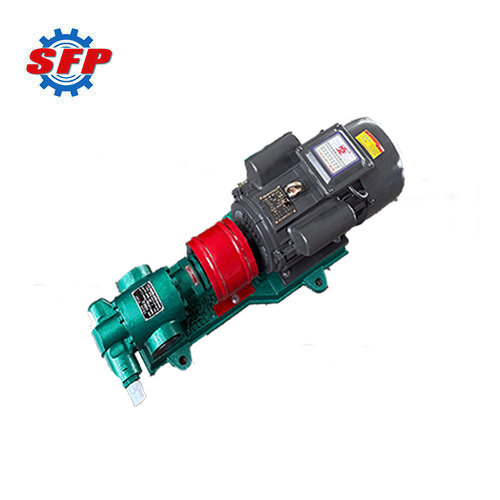

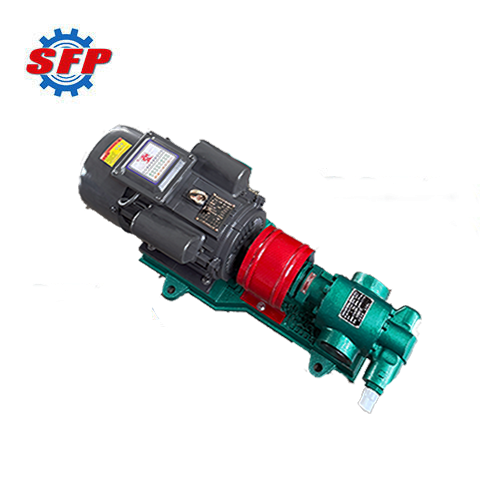

KCB 83.3 series gear pump is an external gear pump specifically designed to convey non-corrosive lubricants or similar oil-based fluids with a viscosity ranging from 5 to 1,500 cSt, provided they contain no solid particles or fibers. It is manufactured from durable, high-strength materials using precision machining processes to significantly improve delivery efficiency and reduce energy consumption during operation. Hence, it typically offers advantages such as high efficiency, energy savings, compact design, and ease of maintenance in lubrication systems, fuel delivery, and the transfer of high-viscosity fluids.
Product Details:
KCB horizontal gear pump consists of components such as gears, a pump housing, shaft seals, and other sealing elements. When the motor drives the drive gear to rotate, it causes the driven gear to rotate in the opposite direction, thereby increasing the clearance between the meshing gears and creating a vacuum, which draws in the fluid. As the gears continue to rotate, the volume between the teeth decreases, forcing the fluid out, thereby achieving stable and continuous positive displacement delivery.
.png)
Application:
1. Food Industry: This pump is equipped with stainless steel materials to meet the requirements for conveying viscous, particle-free materials such as chocolate, honey, and syrup.
2. Machinery Manufacturing Industry: I tis used as lubrication pumps or hydraulic pumps for machine tools and construction machinery.
3. Petrochemical Industry: For conveying lubricating oil, diesel, gasoline, crude oil, asphalt, and other petroleum products.
4. Marine Industry: It is applicable for marine fuel delivery, lubricating oil circulation, and transfer operations.
5. Paint Industry: For conveying paint, ink, resin, adhesive, and similar materials.
Feature:
1. During operation, the gears mesh continuously and smoothly, resulting in minimal pressure fluctuations and a consistent flow rate during liquid transfer.
2. It is equipped with a safety protection device that effectively prevents damage to the pump body caused by overpressure due to blockages in the discharge line.
3. The overall design of this equipment is simple, with a compact footprint that facilitates installation and maintenance, making it ideal for use in spaces with limited production area.
4. The gears are made of high-strength materials that have undergone precision machining and heat treatment, offering excellent wear resistance and ensuring stable and reliable long-term operation.
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust Pressure P |
Motor |
| m³/H |
l/min |
r/min |
Mpa |
Power Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
