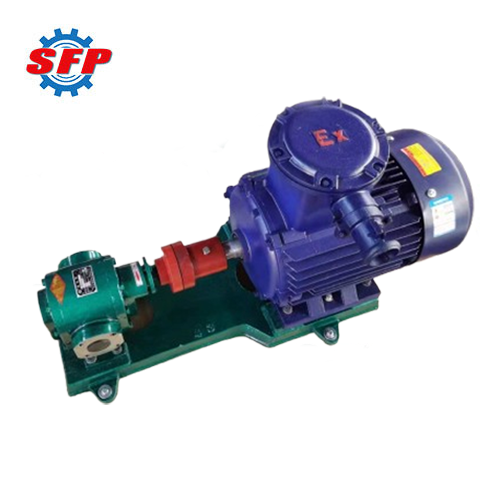

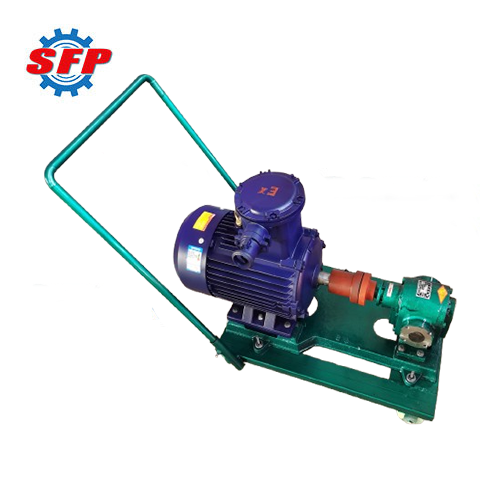

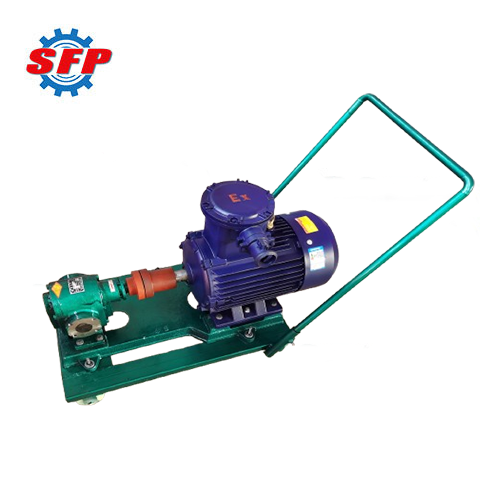

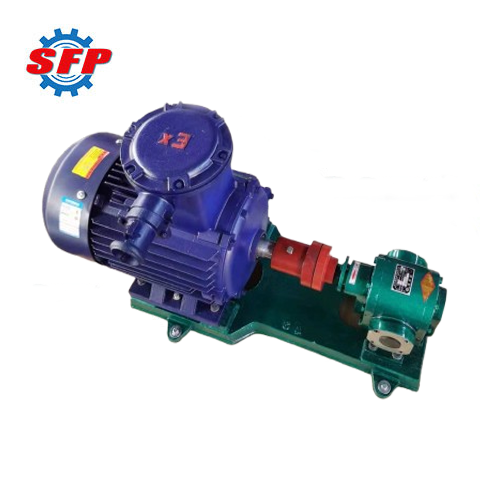

CBN series gear pump adopts a bridge-type external pulley drive and motor direct connection design, thereby featuring a wide oil suction range, low speed, large suction stroke, and low noise. This pump is specifically designed for conveying high-viscosity media such as asphalt, paint, paraffin, oil sludge, rosin, soap solution, and high-viscosity oils with viscosities below 2000 mm²/s. Since the pump is entirely constructed using acid-resistant and corrosion-resistant materials, it is increasingly being used in industries such as agriculture, food processing, pharmaceuticals, and cosmetics for conveying raw materials like cream, sauces, toothpaste, and oils.
Product Details:
CBN series gear oil pump is made up of a pump body, pump cover, gears, shaft end seals, and other main parts. When the gears rotate, the volume of the working chamber gradually increases, creating a local vacuum. As the gears keep rotating, the volume of the working chamber gradually decreases, causing the liquid to be compressed and eventually discharged through the outlet. Through the continuous rotation of the gears, the liquid is continuously sucked in and discharged, thereby achieving a continuous and stable flow.
Application:
CBN series gear oil pump is specifically designed for conveying various high-viscosity liquids. It can handle media with temperatures below 230°C and viscosities of approximately 2000 mm²/s, such as paraffin, paint, soap, rosin, asphalt, toothpaste, syrup, high-viscosity oil, grease, sauce products, pharmaceutical raw materials, etc.
Feature:
1. The CBN series gear pumps are compact in structure, small in size, and lightweight, making them easy to install and maintain.
2. It has high flow and stable pressure to meet various transportation needs, and can maintain stable output even in high or low temperature environments.
3. This product features low friction loss and high energy conversion efficiency, enabling efficient fluid transmission and reducing energy consumption in hydraulic systems.
Performance Data:
| Model |
Inlet/Outlet
mm |
Flow |
Discharge Pressure
MPa |
Motor Power
KW |
| m³/h |
L/min |
| CBN-4 |
32 |
4 |
66 |
0.75 |
1.5 |
| CBN-7 |
40 |
7 |
116 |
0.75 |
3 |
| CBN-13 |
50 |
13 |
216 |
0.75 |
5.5 |
| CBN-18 |
70 |
18 |
300 |
0.6 |
7.5 |
| CBN-30 |
80 |
30 |
500 |
0.6 |
11 |
| CBN-38 |
100 |
38 |
633 |
0.6 |
15 |
| CBN-45 |
100 |
45 |
750 |
0.6 |
18.5 |
| CBN-60 |
100 |
60 |
1000 |
0.4 |
22 |
