Product Description

Summarize:

2CY series gear oil transfer pumps are designed for handling transfer systems, pressurization and injection of oil supply systems and various industrial fields. The machine adopts the principle of internal and external meshing gear transmission and is characterized by simple structure, smooth operation and low noise. At the same time, the gears of the product are nitrided, so they have high hardness and wear resistance, which makes the product have a long service life.

Product Details:

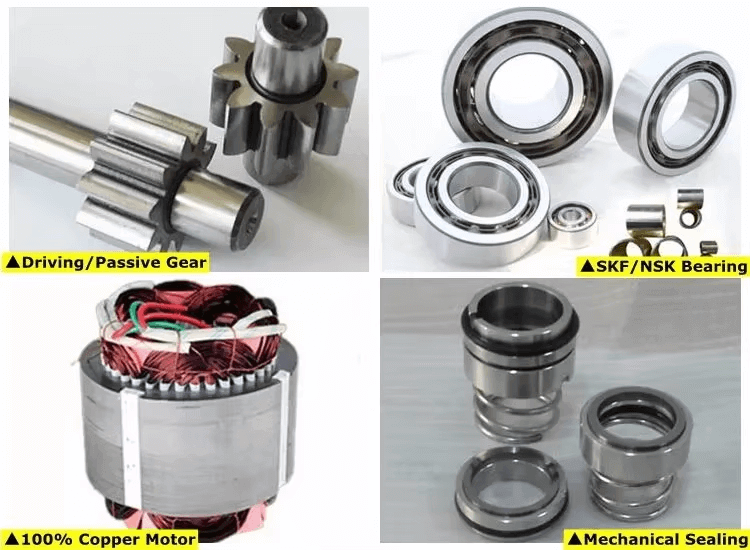

2CY gear pump belongs to a kind of volumetric pump, which is mainly composed of gear, shaft, pump body, pump cover, bearing sleeve, shaft end seal and so on. When the gear rotates, the volume of the inlet chamber becomes larger from small due to the continuous disengagement of the meshing teeth, forming a vacuum and sucking in the liquid. However, due to the meshing teeth constantly into the engagement and from large to small, the oil is compressed and discharged, so as to achieve the purpose of conveying oil.

Application:

2CY gear pump can give performance as transfer pump or booster pump in oil delivery system, and fuel pump for. pressurization and injection in fuel supply system. It can be also applied as hydraulic pump supplying hydraulic power in hydraulic system and in all industry fields as lubricating pump.

Advantage:

1. Wide Application : Including but not limited to water, oil, solvents, etc., with strong adaptability.
2. Compact Structure: The overall structure is compact, small footprint, easy to install and maintain.
3. Efficient Conveying Performance: Adopt advanced technology to ensure uniform flow of liquid in the pump body, providing stable and reliable flow output.
4. Strong Durability: Key components are made of high-quality alloy steel or cast iron, and after special heat treatment, it improves wear resistance and prolongs the service life.
5. Low-noise Operation: Optimized gear tooth design and high-precision machining process make the noise extremely low during operation, and the working environment is more quiet and comfortable.

Performance Data:

Model	Capacity Q		Pressure	Power	Speed	Inlet/Outlet Diameter
Model	M3/h	L/min	M pa	Kw	r/min	Inlet/Outlet Diameter
2CY-0.6/2.5	0.6	10	2.5	61	940	G3/4”
2CY-1.08/2.5	1.08	18		61	1400	G3/4”
2CY-1.5/2.5	1.5	25		63	960	G1”
2CY-2.1/2.5	2.1	35			1420
2CY-3/2.5	3	50			1440
2CY-4	4	66	0.75	65	960
2CY-4.2/2.5	4.2	70	2.5		1440	G1 1/4”
2CY-5-2.5	5	83			960	G1 1/2”
2CY-6-2.5	6	100		67	1440
2CY-7	7	116	0.75	63	960
2CY-7.5/2.5	7.5	125	2.5	67	1440
2CY-8.5/2.5	8	135		69	960	G2’
2CY-12/2.5	12	200		69	1450	G2’
2CY-18/2.5	18	300		70	970	80mm
2CY-20/2.5	20	335			1470
2CY-30/2.5	30	500			1470
2CY-38/1.0	30	633	1.0	72	980	100mm
