QBY series stainless steel diaphragm pump is available for conveying various corrosive liquids, mediums with particles, high viscosity, volatility, flammability, and highly toxicity, as well as special liquids such as ceramic glaze slurry, fruit pulp, glue, and temporary tank drains. It is a positive displacement pump that combines the advantages of self-priming pumps, submersible pumps, slurry pumps, and other delivery pumps, including stable fluid delivery, strong self-priming ability, low viscosity of the delivered fluid, low vibration, and low noise.
Product Details:

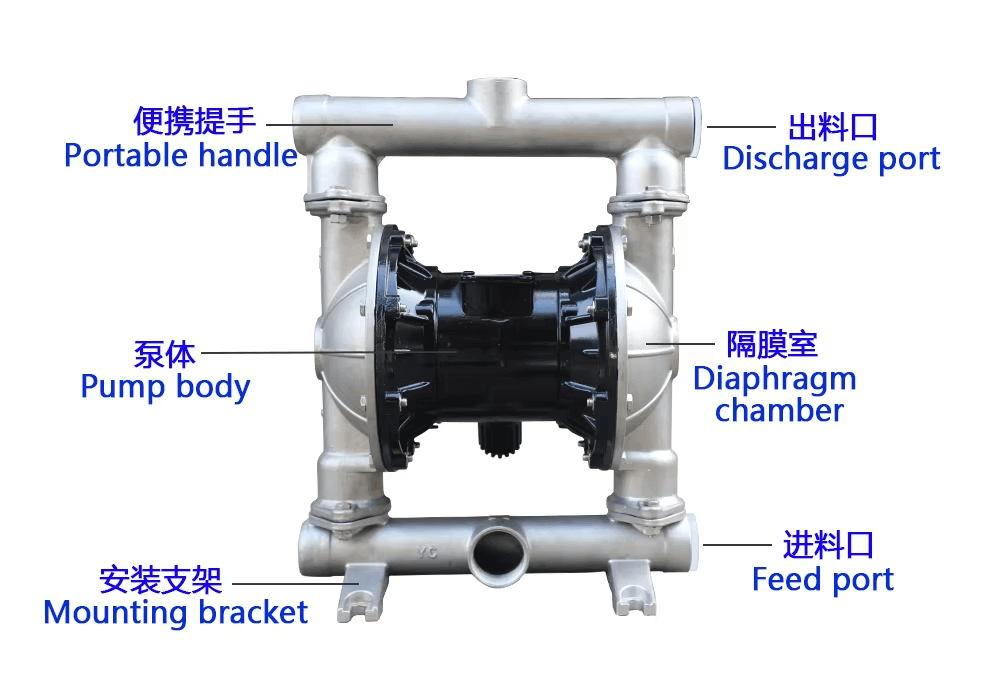

The two symmetrical working chambers of this machine are each equipped with an elastic diaphragm, and the two diaphragms are connected together by a connecting rod. Compressed air enters the air distribution valve from the air inlet joint of the pump, and is introduced into one of the chambers through the air distribution mechanism, pushing the diaphragm in the chamber to move, while the gas in the other chamber is discharged. Once the end of the stroke is reached, the reciprocating motion of the diaphragm causes the volume of the working chamber to change, forcing the two ball valves to open and close alternately, thereby achieving continuous suction and discharge of liquid.
(4).png)
(4).png)
Application:
1. It can be used for the treatment of sewage and waste oil in drains and sewers.
2. This diaphragm pump can be used to transport naphthenic acid, sodium sulfite liquid and benzene.
3. It can convey all kinds of highly toxic, flammable and volatile liquids, as well as all kinds of strong acid, alkali and corrosive liquids.
4. The gas residue and acidic water at the bottom of refineries, which need to be centralized, our diaphragm pumps can be used to transport these waste liquids.
5. In the petroleum refining process, oil often needs to be poured, loaded and sampled temporarily, in order not to contaminate the normal pipeline, diaphragm pumps can be a temporary substitute to get the job done quickly and easily.
Advantage:
1. The air-operated diaphragm pump's valve structure eliminates traditional valves' “O” ring and column valve structure. It adopts three-way pilot type, which removes valve sticking points and pump-stopping phenomenon.
2. Designed with a simple air reversing valve, expensive downtime costs due to shutdowns can be avoided. Replacement of air-reversing valve components eliminates the need to disassemble fluid components.
3. It can provide the correct reversing signal to avoid stoppage, and the reversing is more rapid, so that the pump flow is large, the conveying performance is good, the pulse is small, and the flow is stable.
4. The slider inside the valve is made of durable material that is not easily damaged, realizing a smooth air path and flexible direction change.
5. Aluminum parts are otherwise treated to resist corrosion caused by unclean air.
Performance Data:
| Model |
Flow
(m 3 /h) |
Pressure
(kgf/cm 2) |
Suction
(m) |
Max Solid Size
(mm) |
Max Air Consumption
(m 3 /min) |
Material |
| Aluminum Ally |
ss304 |
Cast Iron |
FRPP |
| QBY-10 |
0~0.8 |
5 |
5 |
1 |
0.3 |
Yes |
Yes |
Yes |
Yes |
| QBY-15 |
0~1 |
5 |
5 |
1 |
0.3 |
Yes |
Yes |
Yes |
Yes |
| QBY-25 |
0~2.4 |
5 |
7 |
2.5 |
0.6 |
Yes |
Yes |
Yes |
Yes |
| QBY-40 |
0~8 |
5 |
7 |
4.5 |
0.6 |
Yes |
Yes |
Yes |
Yes |
| QBY-50 |
0~12 |
5 |
7 |
8 |
0.9 |
Yes |
Yes |
Yes |
/ |
| QBY-65 |
0~16 |
5 |
7 |
8 |
0.9 |
Yes |
Yes |
Yes |
/ |
| QBY-80 |
0~24 |
5 |
7 |
10 |
1.5 |
Yes |
Yes |
Yes |
/ |
| QBY-100 |
0~30 |
5 |
7 |
10 |
1.5 |
Yes |
Yes |
Yes |
/ |
