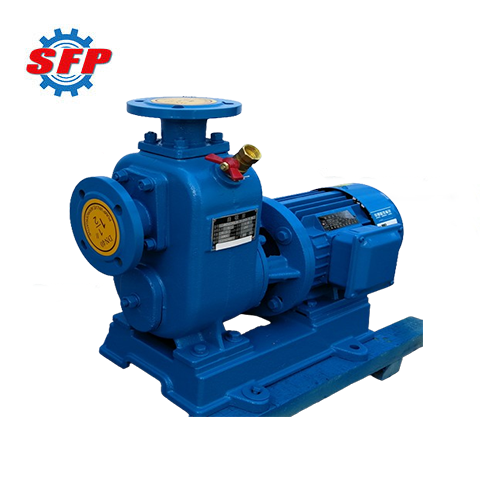

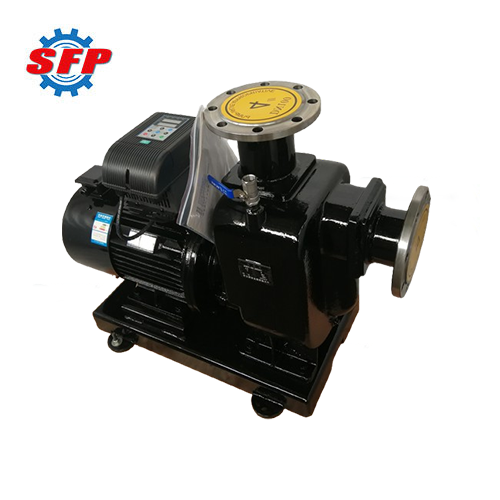

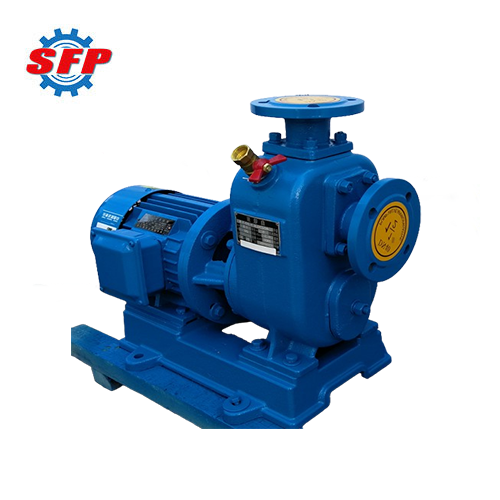

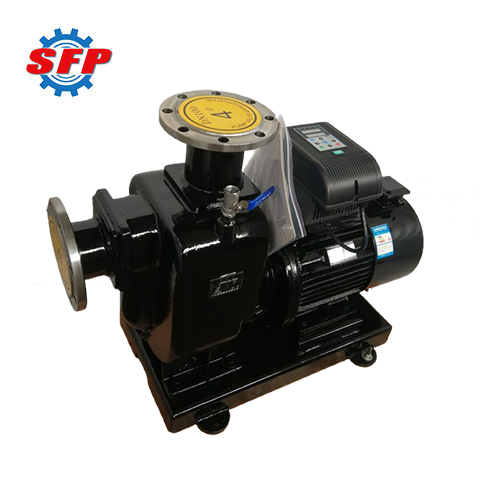

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

ZX series self priming centrifugal pump is single-stage, single-suction horizontal centrifugal pumps that integrate self-priming and centrifugal functions. They feature strong self-priming capability, compact structure, stable operation, and easy maintenance. Specifically designed for handling clean water, seawater, acidic and alkaline chemical liquids, and ordinary slurry materials, these pumps meet the transportation requirements in agricultural irrigation, municipal drainage, industrial processes, environmental protection projects, and building water supply and drainage systems.

Product Details:

ZX series centrifugal pumps are newly developed high-efficiency, energy-saving centrifugal pumps designed using internationally advanced software. The equipment primarily consists of the pump body, impeller, seals, bearings, and coupling. Centrifugal force propels the liquid toward the outer edge of the volute, where it is discharged through the pump outlet. Simultaneously, the rotation of the impeller converts the mechanical energy from the motor into kinetic energy and pressure energy of the liquid, thereby achieving fluid transportation.

Application:

ZX series self priming centrifugal pump is suitable for clean water, seawater, acidic and alkaline chemical media liquids, as well as general slurries (media viscosity ≤100 PCT, maximum solid content 30%). It is primarily applicable in urban environmental protection, construction, firefighting, chemical, pharmaceutical, brewing, power generation, electroplating, papermaking, petroleum, mining, and other fields. Additionally, it can be fitted with an oscillating nozzle to atomize water into fine mist droplets dispersed into the air, making it an ideal tool for farms, nurseries, orchards, and tea plantations.

Feature:

1. The use of a compact, lightweight design enables simple and efficient installation and maintenance.
2. This equipment is manufactured from high-quality, durable materials to deliver stable and reliable performance over the long term.
3. Advanced hydraulic design ensures optimized flow and pressure, thereby minimizing energy consumption and operational costs.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	m³/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
