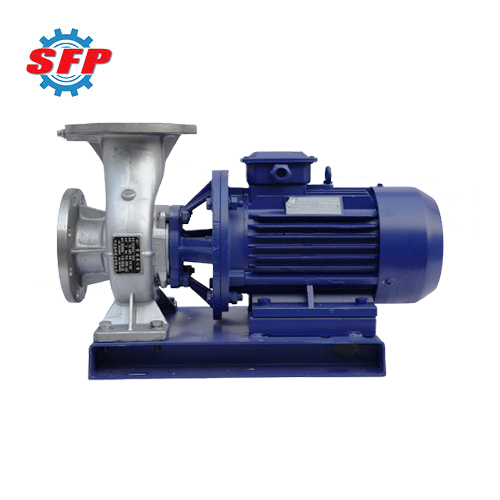

  • ISW Series Horizontal Centrifugal Pump for Sale

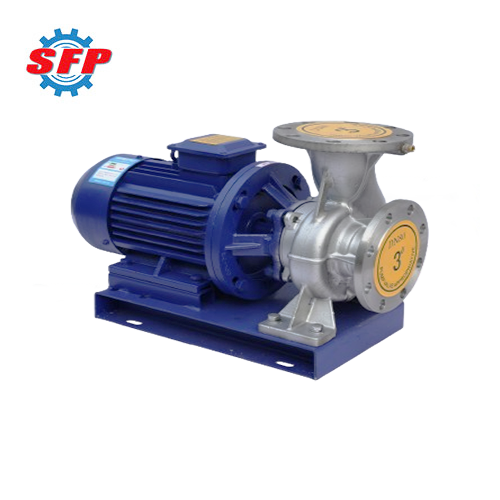

  • ISW Series Pipeline Centrifugal Pump

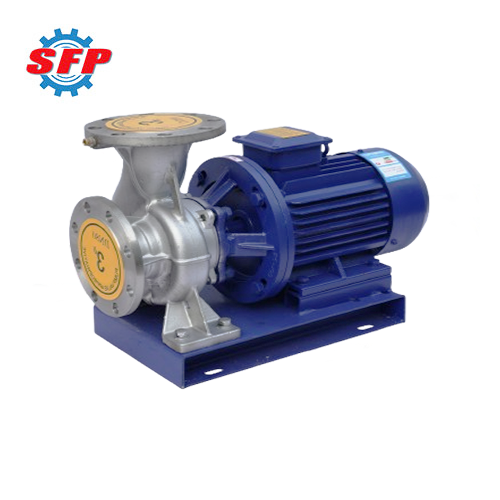

  • ISW Series Single Stage Centrifugal Pump
ISW Series Centrifugal Water Pump
ISW Series Centrifugal Water Pump

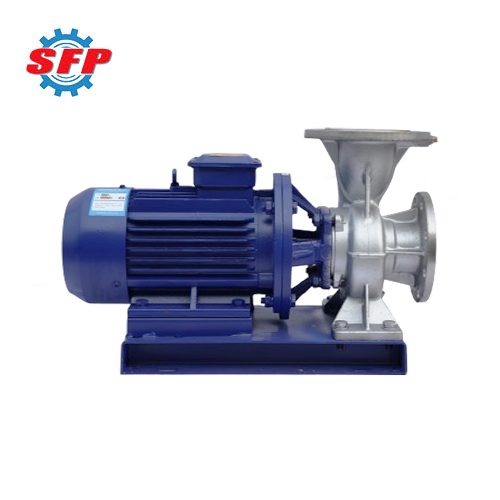

ISW Horizontal Inline Pump
ISW series horizontal inline pump is a horizontal pipeline pumps specifically designed for conveying seawater or media with physical and chemical properties similar to fresh water. By virtue of its high efficiency and energy savings, low noise operation, compact structure, and durable seals, they have become the preferred energy-saving conveyance equipment for municipal water supply, air conditioning circulation, landscape sprinkler irrigation, high-rise building pressurization, and boiler feed water systems.
Head Lift: 8-160m
Power: 0.75-355kW
Flow Rate: 1.1-2400m³/h
Product Description
Summarize:


ISW pipeline centrifugal pump is a single-stage, single-suction centrifugal pump primarily designed for handling liquids with physical properties similar to clean water, such as seawater or mildly corrosive fluids. It finds application in constant-pressure water supply for high-rise buildings, HVAC hot/cold water circulation, agricultural irrigation, long-distance water supply, and boiler feedwater systems. To ensure leak-free operation, this equipment employs hard alloy wear-resistant materials to effectively resolve severe packing seal leakage issues, thereby guaranteeing uninterrupted production.

Product Details:
ISW series horizontal inline centrifugal pumps are designed and manufactured in accordance with the international standard ISO 2858 and the national pipeline centrifugal pump standard JB/T 53058-93. Upon motor startup, the impeller is driven to rotate at high speed, creating a low-pressure zone that draws liquid into the pump casing under negative pressure. Once inside the casing, the liquid is discharged from the pump body into the delivery pipeline under pressure, completing the pumping process.
Application:
ISW series single-stage centrifugal pumps are available for conveying clean water or other liquids with physical and chemical properties similar to clean water. They are applicable for industrial and municipal water supply and drainage, pressurized water supply in high-rise buildings, landscape sprinkler irrigation, fire protection pressure boosting, long-distance conveyance, cooling circulation in HVAC systems, and hot/cold water circulation pressure boosting in bathrooms.
Feature:
1. This machine housing is supported by low-noise bearings, producing virtually no noise beyond minimal operational sounds, making it suitable for use in production environments with strict acoustic requirements.
2. Its critical components are manufactured from high-quality, durable materials to effectively extend the unit's uninterrupted operational time and enhance operational efficiency.
3. The pump shaft and impeller exhibit exceptional absolute concentricity in both static and dynamic balancing, ensuring smooth, vibration-free operation.
Performance Data:
Model Capacity
(m³/h)
Lift Head
(m)
Speed
(r/min)
Motor
(KW)
Inlet&Outlet Diameter
(mm)
15-80 1.1
1.5
2.0
8.5
8
7
2800 0.18 15
20-110 1.8
2.5
3.3
16
15
13.5
2800 0.37 20
20-160 1.8
2.5
3.3
33
32
30
2900 0.75 20
25-110 2.8
4
5.2
16
15
13.5
2900 0.55 25
25-125 2.8
4
5.2
20.6
20
18
2900 0.75 25
25-125A 2.5
3.6
4.6
17
16
14.4
2900 0.55 25
25-160 2.8
4
5.2
33
32
30
2900 1.5 25
25-160A 2.6
3.7
4.9
29
28
26
2900 1.1 25
32-100 4.5 12.5 2900 0.55 32
32-100(I) 4.4
6.3
8.3
13.2
12.5
11.3
2900 0.75 32
32-125 3.5
5
6.5
22
20
18
2900 0.75 32
32-125A 3.1
4.5
5.8
17.6
16
14.4
2900 0.55 32
32-160 6.5 32 2900 1.5 32
32-160A 4 25 2900 1.1 32
32-160(I) 4.4
6.3
8.3
33.2
32
30.2
2900 2.2 32
