Product Description

Summarize:

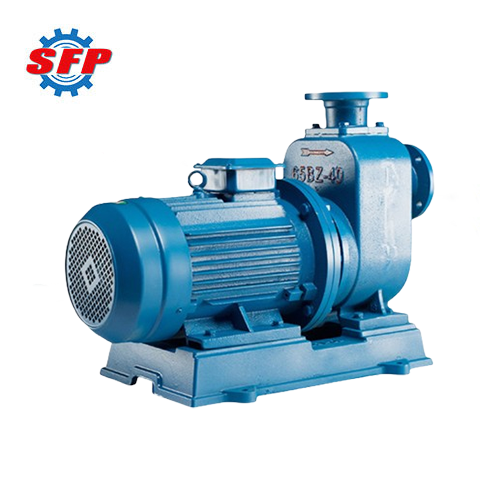

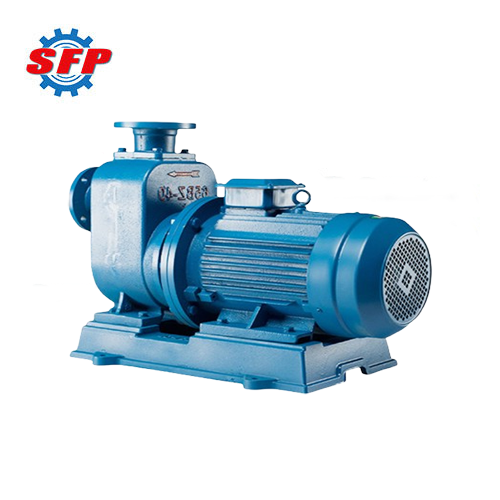

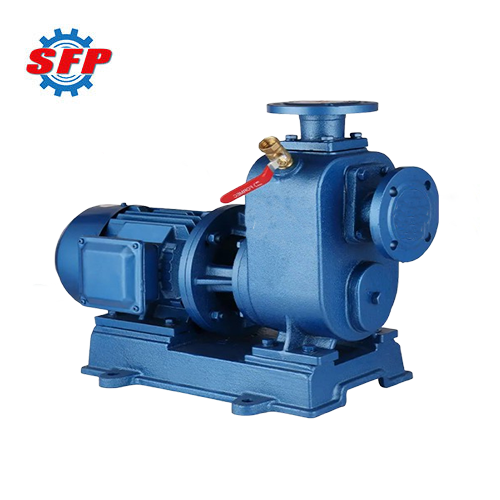

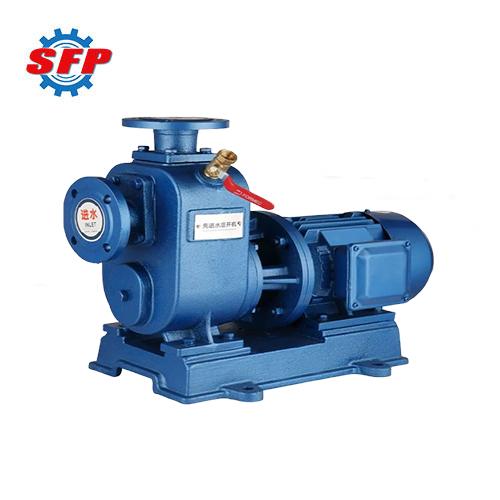

ZW series self-priming centrifugal pump combines self-priming capability with high-performance sewage transfer, eliminating the need for a foot valve or priming water during operation while handling large solid particles and various types of industrial wastewater. This pump resolves the three major issues of failure to prime, incomplete drainage, and susceptibility to clogging, making it an optimal pumping solution for municipal sewage, agricultural irrigation, building pressure boosting, and industrial systems.

Product Details:

Before operation, the ZW series centrifugal pump requires a certain amount of water to be pre-filled in the inlet pipeline. When the pump starts, the liquid inside the impeller is flung outward toward the periphery under centrifugal force, creating a low-pressure zone at the impeller's center. Under atmospheric pressure, liquid from the pipeline is drawn into the pump's suction inlet and enters the impeller center. This liquid is driven by the impeller to rotate at high speed, increasing its velocity, and the ejected liquid then enters the pump casing and is discharged.

Application:

ZW series horizontal self priming centrifugal pumps can handle solid-liquid mixtures containing large particles and long fibers, meeting the requirements for conveying wastewater from municipal sewage systems, building pressure boosting, agricultural irrigation, shipboard water supply, and environmental treatment applications.

Feature:

1. The pump shaft's concentricity and the impeller's excellent static and dynamic balancing ensure smooth, vibration-free operation.
2. It has excellent self-priming capability, with a self-priming height exceeding that of ordinary self-priming pumps and a shorter self-priming time.
3. Utilizing an advanced hydraulic model, this pump enhances conveying efficiency by approximately 5% compared to standard self-priming pumps.

Performance Data:

Type	Flow (m³/h)	Lift Head (m)	Power (kw)	Rotation Speed (r/min)	Cavatation Allowance(m)
25ZW8-15	8	15	2.2	2900	2.0
32ZW5-20	5	20	2.2	2900	2.5
32ZW10-20	10	20	2.2	2900	2.5
32ZW9-30	9	30	2.2	2900	2.5
40ZW10-20	10	20	2.2	2900	2.5
40ZW15-30	15	30	3	2900	2.5
40ZW20-15	20	15	2.2	2900	2.5
50ZW10-20	10	20	2.2	2900	2.5
50ZW20-12	20	12	2.2	2900	2.5
50ZW15-30	15	30	3	2900	2.5
50ZW20-35	20	35	5.5	2900	2.5
65ZW30-18	30	18	4	1450	2.5
65ZW25-30	25	30	5.5	2900	3.0
65ZW25-40	25	40	7.5	2900	3.0
65ZW40-25	40	25	7.5	2900	3.0
65ZX65-25	65	25	7.5	2900	3.0
80ZW40-16	40	16	4	1450	3.0
80ZW40-25	40	25	7.5	2900	3.0
80ZW65-25	65	25	7.5	2900	5.5
80ZW80-35	80	35	15	2900	5.5
80ZW80-45	80	45	22	2900	5.5
80ZW50-60	50	60	22	2900	5.5
100ZW100-15	100	15	7.5	1450	5.5
100ZW100-20	100	20	11	1450	5.5
100ZW100-30	100	30	22	2900	5.5
100ZW80-60	80	60	37	2900	5.5
I00ZW80-80	80	80	45	2900	5.5
125ZW120-20	120	20	15	1450	5.5
150W200-15	200	15	15	1450	5.5
150ZW200-20	200	20	22	1450	5.5
