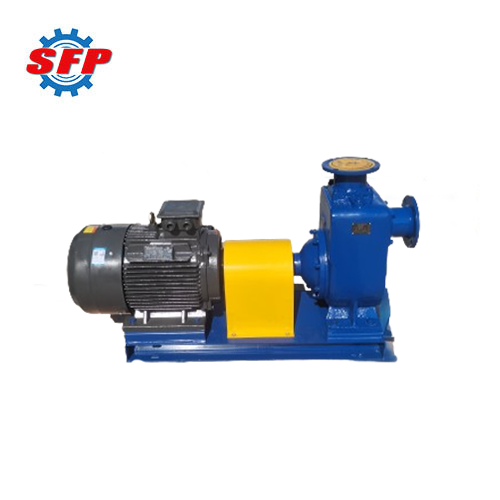

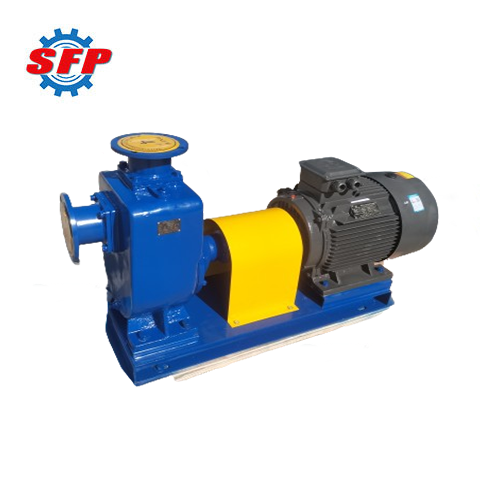

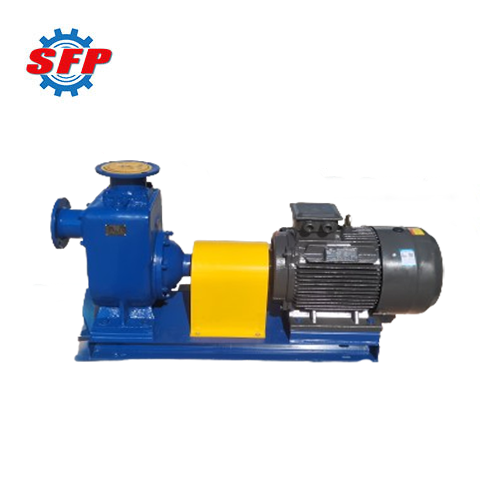

High Efficiency ZX Electric Driven Centrifugal Chemical Self Priming Pumps

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

LPG Gas Transfer Pump for Sale

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

ZX Self-Priming Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

ZX series chemical centrifugal pumps are horizontal centrifugal pumps with self-priming capabilities, making them particularly suitable for situations where a foot valve cannot be installed and rapid priming is difficult. These pumps are designed to handle clean water, acidic and alkaline chemical liquids, seawater, and liquid media containing small amounts of solid particles. They offer a head range of 12–80 meters and a flow rate typically ranging from 3 to 550 cubic meters per hour. It meets the pumping requirements for groundwater and river water extraction, as well as most surface water storage applications, making it an essential pumping solution in industries such as fire protection boosting, industrial water supply and drainage, agricultural irrigation, chemical transportation, and municipal wastewater discharge.

Product Details:

In the ZX series self-priming centrifugal pumps, when the motor drives the impeller to rotate at high speed, a low-pressure zone forms at the impeller inlet, causing the air in the suction pipe to mix vigorously with the liquid in the impeller volute, forming a gas-liquid mixture. When this mixture enters the gas-liquid separation chamber, the gas returns to the impeller inlet through the return port and mixes with the air inside the pump. As the air inside the pump is gradually expelled, a vacuum forms in the pipeline, drawing liquid into the pump under atmospheric pressure. Ultimately, the pump completes the self-priming process and transitions to normal centrifugal pump operation, thereby delivering a continuous and stable flow of liquid.

Application:

This equipment is capable of conveying waste water, seawater, acidic and alkaline liquids and media containing up to 30% solids. It is primarily used in industries such as urban environmental protection, construction, chemicals, pharmaceuticals, dyes, textile printing and dyeing, brewing, power generation, electroplating, papermaking, petroleum, mining, and agricultural irrigation.

Feature:

1. With its fast self-priming speed and high capacity, it can replace deep well pumps or submersible pumps in certain applications.
2. This pump features high concentricity, minimal vibration, and low operating noise, meeting the demands of industrial and agricultural production.
3. The mechanical seal is made of high-quality wear- and corrosion-resistant materials, significantly extending its service life and ensuring long-term leak-free operation.
4. Featuring a rear-pull-out design, it eliminates the need to disconnect the inlet and outlet piping during disassembly and maintenance, significantly reducing repair time and labor costs.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	m³/h	l/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
