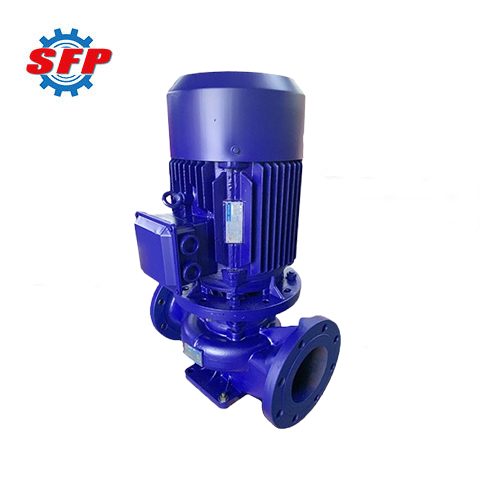

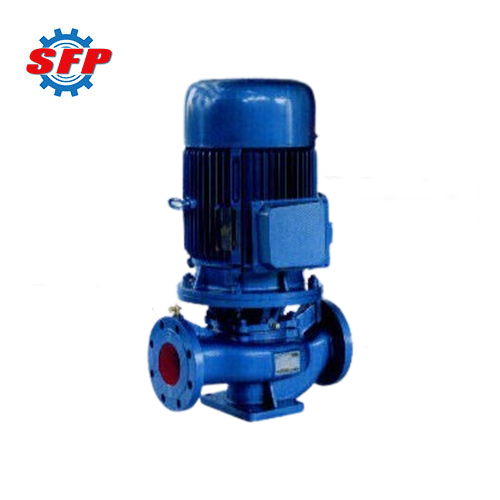

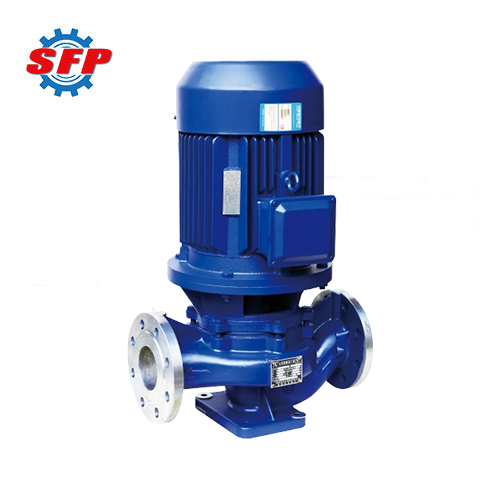

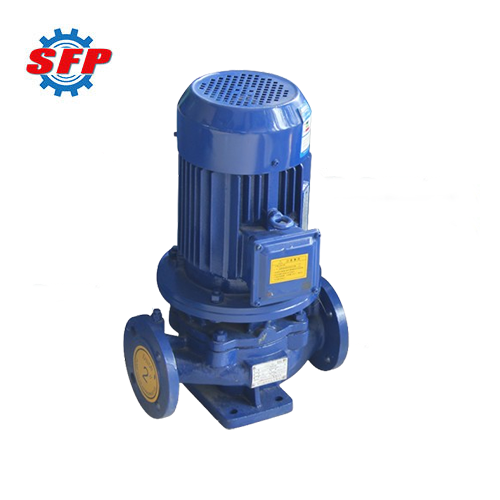

ISG series vertical pipeline pumps represent a new generation of high-efficiency, energy-saving products designed to meet national industry standards. They feature high efficiency, compact structure, smooth operation, minimal vibration, and leak-free performance. Featuring a unique vertical configuration, this equipment occupies minimal floor space and can be directly integrated into piping systems. It is particularly well-suited for applications with limited workspace, such as high-rise buildings, municipal drainage, and landscape irrigation. Furthermore, manufactured with premium materials and advanced techniques, the pump exhibits excellent corrosion and wear resistance, ensuring long-term stable performance for continuous pumping tasks.
Product Details:
ISG series vertical centrifugal pumps are single-stage, single-suction vertical pipeline centrifugal pumps. This series employs motors equipped with low-noise bearings and impellers optimized for static and dynamic balance, ensuring low-noise operation and vibration-free performance. The shaft section utilizes hard alloy wear-resistant mechanical seals, completely eliminating the severe leakage issues commonly associated with gland packing seals in centrifugal pumps. This design extends service life and maintains a clean operating environment.
Application:
ISG series vertical pipeline pumps are suitable for conveying clean water and other liquids with physical and chemical properties similar to clean water. They are applicable for industrial and municipal water supply and drainage, pressurized water supply in high-rise buildings, landscape sprinkler irrigation, fire protection pressurization, long-distance transportation, refrigeration circulation, and pressurized circulation of hot and cold water in facilities such as bathrooms, as well as for equipment support.
Feature:
1. The motor bearings are optimally configured to effectively balance the radial and axial loads generated during pump operation, ensuring smooth running with minimal vibration and low noise levels.
2. Equipped with premium mechanical seals, both the rotating and stationary rings are crafted from hard alloy materials. This ensures exceptional wear resistance, leak-free operation, and extended service life.
3. It features a vertical housing design with identical inlet and outlet diameters aligned on the same centerline. Its compact and aesthetically pleasing appearance minimizes floor space requirements and reduces construction costs.
Performance Data:
| Model |
Flow Rate |
Head
(m) |
Efficiency
(%) |
Rev
(r/min) |
Motor
(KW) |
| (m³/h) |
(L/S) |
| 15-80 |
1.5 |
0.42 |
8 |
34 |
2800 |
0.18 |
| 20-110 |
2.5 |
0.69 |
15 |
34 |
2800 |
0.37 |
| 20-160 |
2.5 |
0.69 |
32 |
25 |
2900 |
0.75 |
| 25-110 |
4 |
1.11 |
15 |
42 |
2900 |
0.55 |
| 25-125 |
4 |
1.11 |
20 |
36 |
2900 |
0.75 |
| 25-125A |
3.6 |
1 |
16 |
35 |
2900 |
0.55 |
| 25-160 |
4 |
1.11 |
32 |
32 |
2900 |
1.5 |
| 25-160A |
3.7 |
1.03 |
28 |
31 |
2900 |
1.1 |
| 32-100 |
4.5 |
12.5 |
12.5 |
44 |
2900 |
0.55 |
| 32-100(I) |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.75 |
| 32-125 |
5 |
1.39 |
20 |
44 |
2900 |
0.75 |
| 32-125A |
4.5 |
1.25 |
16 |
43 |
2900 |
0.55 |
| 32-160 |
6.5 |
5 |
32 |
44 |
2900 |
1.5 |
| 32-160A |
4 |
1.1 |
25 |
34 |
2900 |
1.1 |
| 32-160(I) |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
| 32-200 |
4.5 |
12.5 |
50 |
32 |
2900 |
3 |
