Product Description

Summarize:

IS series single stage centrifugal pumps are single-stage, single-suction centrifugal pumps characterized by compact structure, reliable performance, small size, corrosion resistance, high efficiency, and low energy consumption. This product is suitable for conveying clean water and liquids with physical and chemical properties similar to water, free of solid particles. It is widely used in municipal water supply and drainage, pressurized water supply for high-rise buildings, landscape sprinkler irrigation, and seawater desalination. It is the preferred choice for worry-free operation in clean water conveyance applications.

Product Details:

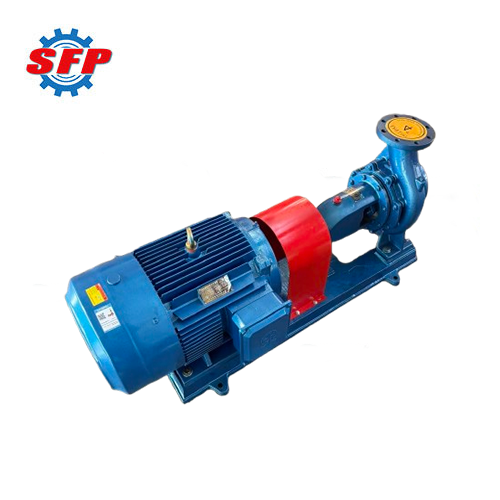

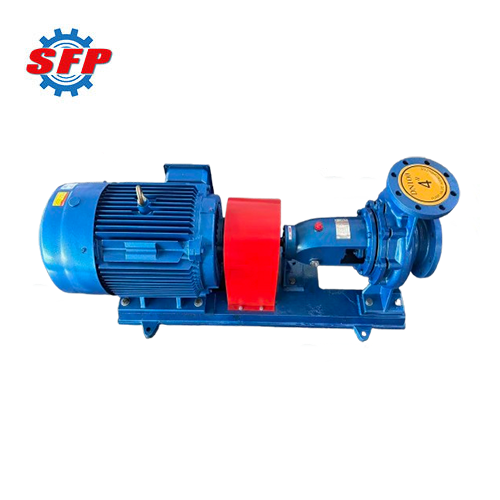

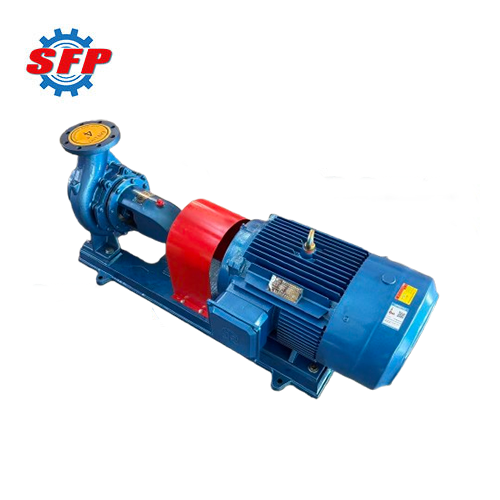

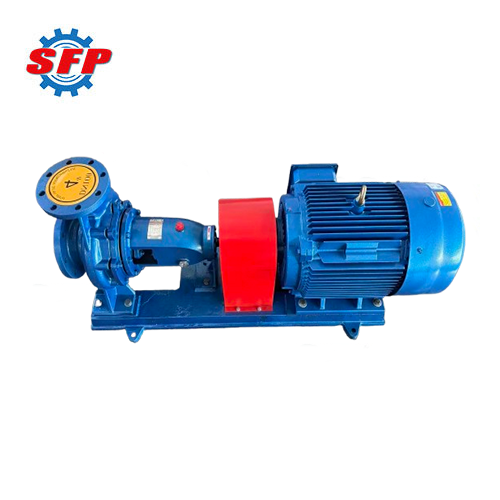

IS series horizontal centrifugal pump consists of a pump casing, pump cover, impeller, shaft, seal ring, shaft sleeve, and bearing assembly. When liquid is subjected to centrifugal force, the volume of liquid at the impeller center gradually decreases, creating suction at the pump inlet that draws fluid into the pump.

Application:

1. Shipbuilding Industry: It is commonly used in fuel transfer and lubricating oil circulation systems for vessels.
2. Food Industry: Employed in processing operations requiring edible oils, such as oil circulation in fried food production lines.
3. Machinery Industry: Provides stable oil supply for lubrication systems in equipment such as machine tools and construction machinery.
4. Petrochemical Industry: This equipment is used in refineries, chemical plants, and similar facilities to transport liquid oils such as crude oil, diesel, and lubricating oil.

Feature:

1. This pump features a high-efficiency design to ensure minimal energy consumption and lower operating costs, and the optimized impeller and volute design contributes to high efficiency.
2. The single-stage impeller and volute design combines high efficiency with ease of maintenance, which is suitable for applications requiring medium head and flow rates.
3. It employs a compact, lightweight design for easy installation and transportation, enabling effortless operation even in confined spaces.

Performance Data:

Model	Flow (m³/hrs)	Head (m)	Power (w)	Speed (r/m)
IS50-32-125	12.5	20	2.2	3000
IS50-32-160	12.5	32	3	3000
IS50-32-200	12.5	50	5.5	3000
IS50-32-250	12.5	80	11	3000
IS65-50-125	25	20	3	3000
IS65-50-160	25	32	5.5	3000
IS65-40-200	25	50	7.5	3000
IS65-40-250	25	80	15	3000
IS65-40-315	25	125	30	3000
IS80-65-125	50	20	5.5	3000
IS80-65-160	50	32	7.5	3000
IS80-50-200	50	50	15	3000
IS80-50-250	50	80	22	3000
IS80-50-315	50	125	37	3000
IS100-80-125	100	20	11	3000
IS100-80-160	100	32	15	3000
IS100-65-200	100	50	22	3000
IS100-65-250	100	80	37	3000
IS100-65-315	100	125	75	3000
IS100-65-315	100	125	11	1450
IS125-100-200	200	50	45	3000
IS125-100-250	200	80	75	3000
IS125-100-250	200	80	11	1450
IS125-100-315	200	125	110	3000
IS125-100-315	200	125	15	1450
IS125-100-400	100	50	30	1450
IS150-125-250	200	20	18.5	1450
IS150-125-315	200	32	30	1450
IS150-125-400	200	50	45	1450
IS200-150-250	400	20	37	1450
IS200-150-315	400	32	55	1450
IS200-150-400	400	50	90	1450
