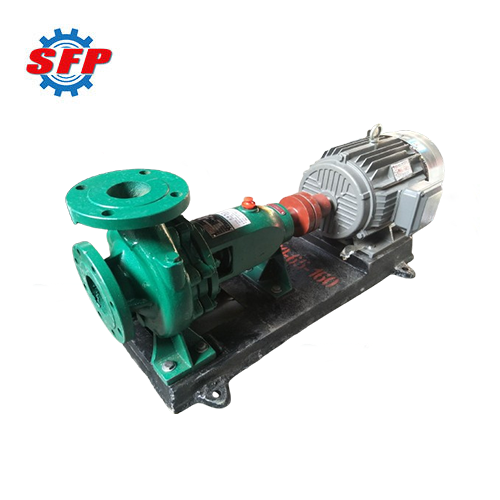

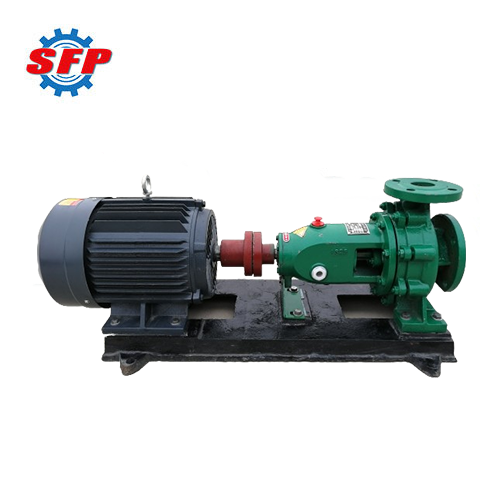

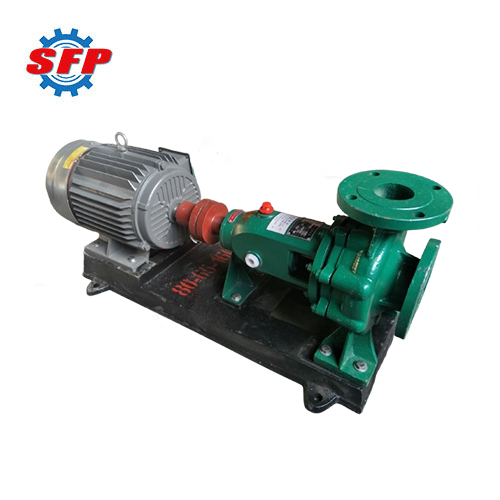

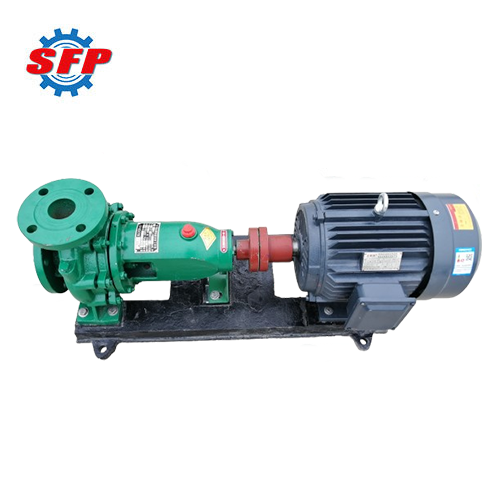

IS series single stage centrifugal pump is a single-stage, single-suction horizontal centrifugal pump and is also one of China's promoted high-efficiency energy-saving pump products. This pump can be used to transport clean water or liquids with physical and chemical properties similar to water in industries such as factories, cities, agriculture, and mining. The production and manufacturing of this pump comply with international standards, ensuring that it leads the industry in technical specifications and features superior performance, stable operation, and excellent quality.
Product Details:
IS series horizontal centrifugal water pumps consist of a pump body, pump cover, impeller, shaft, seal ring, shaft sleeve, and bearing components. As the liquid is subjected to centrifugal force, the amount of liquid at the center of the impeller gradually decreases, creating suction at the pump inlet and drawing the fluid into the pump. Additionally, the pump outlet is typically designed to be smaller in size. As the pressurized fluid passes through the outlet, the pressure further increases and the fluid is discharged from the outlet.
.png)
Application:
1. In the industrial sector, this pump can be used to transport process fluids, cooling water, chemicals, and other liquids in the chemical, petroleum, and manufacturing industries.
2. It is suitable for municipal water supply systems, water treatment plants, and residential and commercial water distribution networks, it is ideal for boosting water pressure and ensuring a stable water flow.
3. This pump is commonly used in agricultural irrigation systems to transport water from sources such as wells, rivers, and reservoirs to fields. Its ability to handle large volumes of water makes it a valuable tool for farmers.
Feature:
1. It features a high-efficiency design that ensures minimal energy consumption and lower operating costs.
2. This series of pumps features a compact and lightweight design, making installation and transportation convenient and allowing for easy operation even in confined spaces.
3. Its single-stage impeller and volute design guarantees high efficiency while facilitating maintenance, making it particularly suitable for applications requiring moderate head and flow rates.
Performance Data:
| Model |
Flow
(m³/h) |
Head
(m) |
Power
(w) |
Speed
(r/m) |
| IS50-32-125 |
12.5 |
20 |
2.2 |
3000 |
| IS50-32-160 |
12.5 |
32 |
3 |
3000 |
| IS50-32-200 |
12.5 |
50 |
5.5 |
3000 |
| IS50-32-250 |
12.5 |
80 |
11 |
3000 |
| IS65-50-125 |
25 |
20 |
3 |
3000 |
| IS65-50-160 |
25 |
32 |
5.5 |
3000 |
| IS65-40-200 |
25 |
50 |
7.5 |
3000 |
| IS65-40-250 |
25 |
80 |
15 |
3000 |
| IS65-40-315 |
25 |
125 |
30 |
3000 |
| IS80-65-125 |
50 |
20 |
5.5 |
3000 |
| IS80-65-160 |
50 |
32 |
7.5 |
3000 |
| IS80-50-200 |
50 |
50 |
15 |
3000 |
| IS80-50-250 |
50 |
80 |
22 |
3000 |
| IS80-50-315 |
50 |
125 |
37 |
3000 |
| IS100-80-125 |
100 |
20 |
11 |
3000 |
| IS100-80-160 |
100 |
32 |
15 |
3000 |
| IS100-65-200 |
100 |
50 |
22 |
3000 |
| IS100-65-250 |
100 |
80 |
37 |
3000 |
| IS100-65-315 |
100 |
125 |
75 |
3000 |
| IS100-65-315 |
100 |
125 |
11 |
1450 |
| IS125-100-200 |
200 |
50 |
45 |
3000 |
| IS125-100-250 |
200 |
80 |
75 |
3000 |
| IS125-100-250 |
200 |
80 |
11 |
1450 |
| IS125-100-315 |
200 |
125 |
110 |
3000 |
| IS125-100-315 |
200 |
125 |
15 |
1450 |
| IS125-100-400 |
100 |
50 |
30 |
1450 |
| IS150-125-250 |
200 |
20 |
18.5 |
1450 |
| IS150-125-315 |
200 |
32 |
30 |
1450 |
| IS150-125-400 |
200 |
50 |
45 |
1450 |
| IS200-150-250 |
400 |
20 |
37 |
1450 |
| IS200-150-315 |
400 |
32 |
55 |
1450 |
| IS200-150-400 |
400 |
50 |
90 |
1450 |
