Product Description

Summarize:

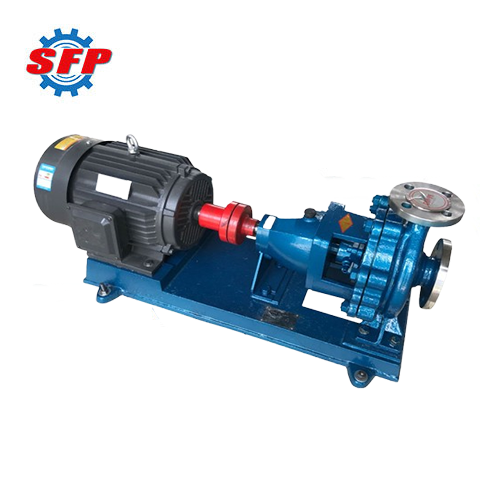

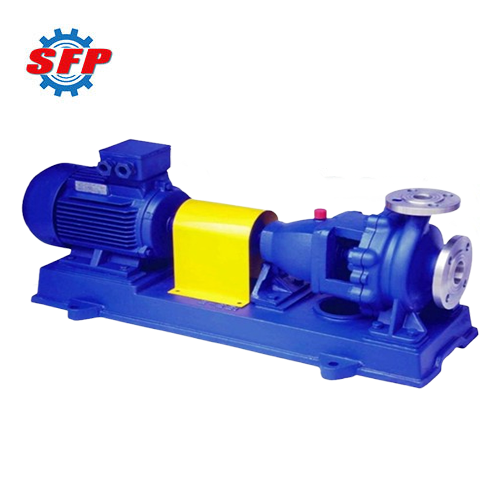

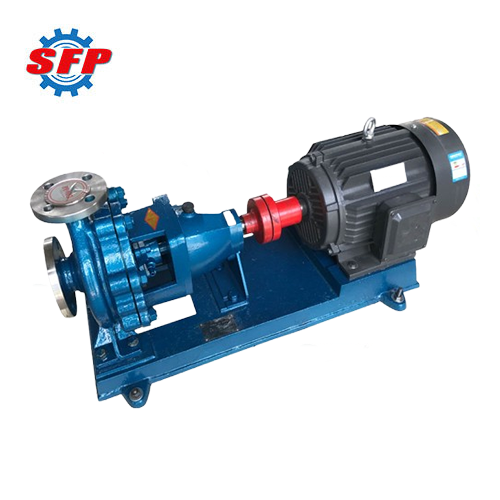

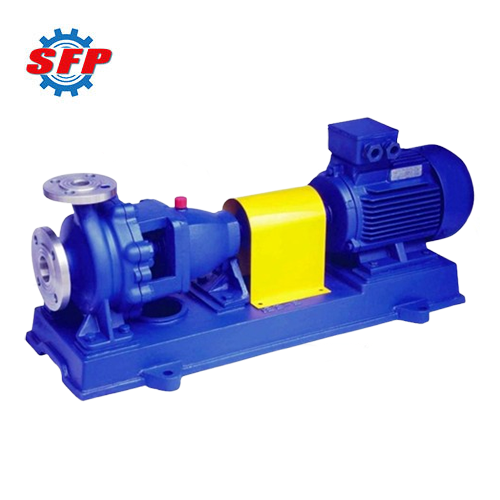

IH series chemical centrifugal pumps are single-stage, single-suction cantilever centrifugal pumps specifically designed for conveying water, corrosive, flammable, explosive, or toxic hazardous chemicals. They are commonly used in industries such as chemical processing, petroleum, agriculture, pharmaceuticals, and power generation. With their high mechanical strength, corrosion resistance, and long service life, these pumps have become specialized equipment for transporting highly corrosive media in chemical processes.

Product Details:

IH series chemical pumps primarily consist of the pump casing, impeller, pump cover, seals, suspension components, shaft, and other parts. The pump cover is clamped via connectors on the intermediate support bracket, then secured by the connection between the pump casing and the intermediate bracket. It is designed with axial suction, radial discharge, and a base bearing configuration, allowing direct mounting on a foundation.

Application:

1. It can be used in petroleum refining to transport crude oil, solvents, and additives.
2. In food processing, it can be used to transport beverages, sauces, and dairy products.
3. In the chemical industry, it can be used to transport corrosive liquids such as acids, alkalis, and salts.
4. This in the pharmaceutical industry to handle pharmaceutical solutions, solvent circulation, and other media.
5. In environmental protection projects, it can be used for wastewater treatment and circulating waste gas absorption liquids.

Feature:

1. This pump features a low cavitation margin and superior cavitation resistance compared to similar products, effectively preventing damage caused by cavitation during operation.
2. Suspension components and sealing parts employ a standardized design, offering high versatility and interchangeability for simplified maintenance and component replacement.
3. The rear-access door structure allows maintenance without disassembling inlet/outlet pipelines, ensuring efficient and convenient operation.

Performance Data:

Model	Speed	Flow (m³/h)	Flow (L/S)	Head (m)	Power
					Medium Density
					1.0	1.35	1.85
IH50-32-125	2900	12.5	3.47	20	2.2	6.0	4.0
IH50-32-125	1450	6.3	1.74	5.0	0.55	0.55	0.55
IH50-32-160	2900	12.5	3.47	32	3.0	4.0	5.5
IH50-32-160	1450	6.3	1.74	8.0	0.55	0.75	1.1
IH50-32-200	2900	12.5	3.47	50	5.5	7.5	11
IH50-32-200	1450	6.3	1.74	12.5	1.1	1.1	1.5
IH50-32-250	2900	12.5	3.47	80	11	15	18.5
IH50-32-250	1450	6.3	1.74	20	2.2	2.2	3.0
IH65-50-125	2900	25	1.53	2.0	3.0	4.0	5.5
IH65-50-125	1450	12.5	6.94	5.0	0.55	0.55	0.75
IH65-50-160	2900	25	2.78	32	5.5	7.5	11
IH65-50-160	1450	12.5	6.94	8.0	0.75	1.1	1.5
IH65-40-200	2900	25	2.92	50	11	11	15
IH65-40-200	1450	12.5	6.94	12.5	1.5	2.2	2.2
IH65-40-250	2900	25	2.92	80	15	3.0	30
IH65-40-250	1450	12.5	6.94	20	2.2	37	4.0
IH65-40-315	2900	25	3.06	125	30	5.5	55
IH65-40-315	1450	12.5	6.94	32.0	5.5	5.5	7.5
IH80-65-125	2900	50	13.9	20	5.5	7.5	11
IH80-65-125	1450	25	6.94	5.0	0.75	1.1	1.5
IH80-65-160	2900	50	13.9	32	11	11	15
IH80-65-160	1450	25	6.94	8.0	1.5	1.5	2.2
IH80-50-200	2900	50	13.9	50	15	18.5	30
IH80-50-200	1450	25	6.94	12.5	1.1	1.5	2.2
IH80-50-250	2900	50	13.9	80	30	37	45
IH80-50-250	1450	25	6.94	20	4.0	5.5	7.5
IH80-50-315	2900	50	13.9	125	45	55	75
IH80-50-315	1450	25	6.94	32	7.5	7.5	11
IH100-80-125	2900	100	27.8	20	11	15	18.5
IH100-80-125	1450	50	13.9	5.0	1.5	2.2	3.0
IH100-80-160	2900	100	27.8	32	15	22	30
IH100-80-160	1450	50	13.9	8.0	2.2	3.0	4.0
IH100-65-200	2900	100	27.8	50	30	37	45
IH100-65-200	1450	50	13.9	12.5	3.0	4.0	5.5
IH100-65-250	2900	100	27.8	80	45	55	75
IH100-65-250	1450	50	13.9	20	5.5	7.5	11
IH100-65-315	2900	100	55.6	125	75	90	132
IH100-65-315	1450	50	27.8	32	11	15	18.5
IH125-100-200	2900	200	55.6	50	45	55	90
IH125-100-200	1450	100	27.8	12.5	7.5	11	15
IH125-100-250	2900	200	55.6	80	11	110	132
IH125-100-250	1450	100	27.8	20	132	15	18.5
IH125-100-315	2900	200	55.6	125	18.5	160	220
IH125-100-315	1450	100	27.8	32	18.5	22	30
IH125-100-400	1450	100	27.8	50	18.5	30	37
IH50-125-250	1450	200	55.6	20	30	30	37
IH50-125-315	1450	200	55.6	32	30	37	55
IH50-125-400	1450	200	55.6	50	55	75	90
IH200-150-250	1450	400	111.1	20	37	55	75
IH200-150-315	1450	400	111	32	55	75	110
IH200-150-400	1450	400	111	50	90	132	160
