Product Description

Summarize:

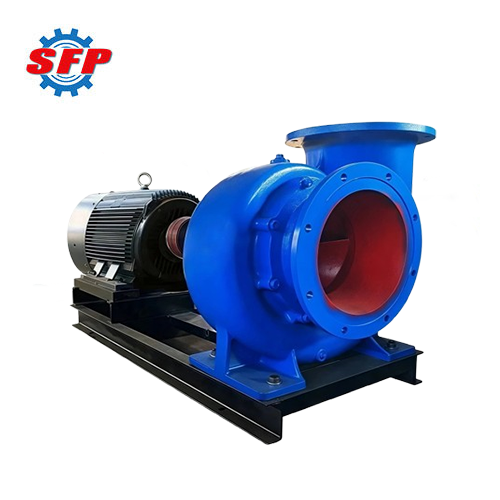

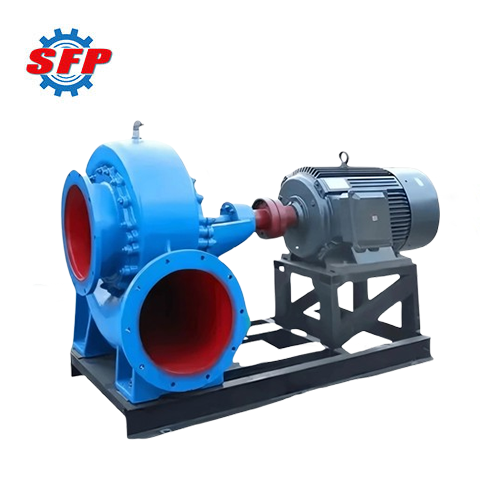

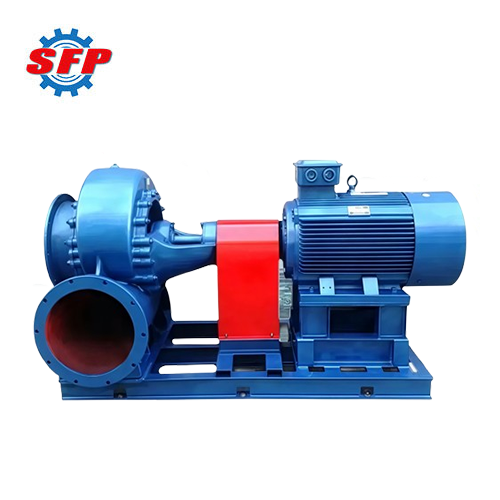

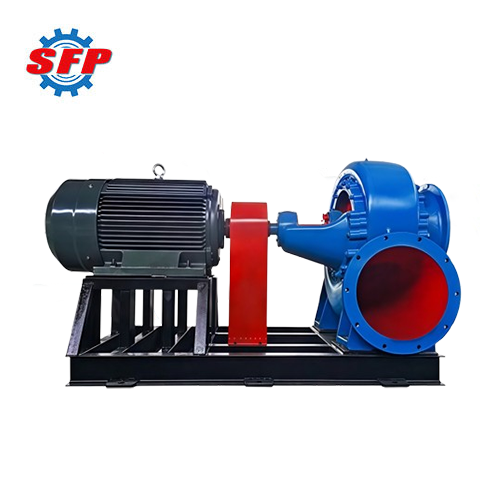

HW series mixed flow centrifugal pump is a horizontal, single-stage, single-suction volute-type mixed-flow pump that combines the working principles of centrifugal pumps and axial flow pumps. It features high efficiency, energy savings, ease of operation, excellent performance, compact size, convenient installation, and a long service life. This pump is suitable for conveying clean water or other liquids with physical and chemical properties similar to water at temperatures below 50°C. It can be widely applied in industries such as industrial and municipal water supply, agricultural irrigation, sugar mills, paper mills, and municipal engineering.

Product Details:

HW series horizontal water centrifugal pumps combine the working principles of centrifugal pumps and axial flow pumps. When the impeller rotates, it simultaneously generates centrifugal force and axial thrust, enabling the liquid to achieve high energy within the pump. The pump primarily consists of a pump cover, impeller, pump body, pump shaft, shaft sleeve, and bearing housing. Additionally, the shaft sealing device comprises packing, a packing gland, and packing rings, which prevent air from being drawn into the pump along the shaft and water from flowing out of the pump along the shaft.

Application:

1. Industrial circulating water: It is widely used in industrial circulating water systems in industries such as chemicals, power, metallurgy, and papermaking.
2. Urban water supply : Suitable for water supply and drainage systems in urban water treatment plants, sewage treatment plants, and other facilities.
3. Agricultural irrigation: This equipment is able to convey various agricultural irrigation projects, such as rice fields and dryland farming.
4. Other applications: It can be applied in fields such as water conservancy projects, flood control and drainage, and aquaculture.

Feature:

1. By adjusting the outer diameter of the impeller or replacing impellers with different performance characteristics, the needs of different users can be met.
2. This device can be used to add irrigation water or connected to a vacuum pump to pump water.
3. The cantilever design of this pump makes installation and use more flexible.
4. The front and rear open structure facilitates inspection and maintenance.

Performance Data:

Model	Capacity		Head	Speed	Effciency	Power(kw)		NPSHr
Model	(l/s)	(m³/h)	(m)	(r/min)	(%)	Shaft	Motor	(m)
100HW-5	25	90	5	2900	79	1.55	2.2	4
100HW-8	25	90	8	2900	81	2.42	3	4
100HW-12	25	90	12.5	2900	81	3.78	5.5	4
150HW-5	50	180	5	1450	82	2.99	4	2.7
150HW-8	50	180	8	1450	82	4.78		2.7
150HW-12	50	180	12.5	2900	82	7.47		6
200HW-4	95	340	4	1060	81	4.6		4
200HW-5	100	360	5	1450	81.5	6.01		4
200HW-8	100	360	8	1450	83.5	9.39	11	4
200HW-12	100	360	12.5	1450	83.5	14.68		4
250HW-4	125	450	4.2	980	82.5	6.3		4
250HW-5	150	540	5	1180	82	8.97		4
250HW-7	125	450	7	980	83	10.5	15	4
250HW-8	150	540	8	1180	84	14.01		4
250HW-12	150	540	12.5	1180	84	21.88		4
300HW-4	197	710	4	780	83.5	4.4	11	4
300HW-5	220	792	5	970	83	12.99		4
300HW-7	216	780	7	980	84	17.7	22	4
300HW-8	220	792	8	970	85	20.3		4
300HW-12	220	792	12.5	970	85	31.72		4
350HW-4	278	1000	4.3	980	85	16.6	22	4.5
350HW-8	278	1000	8	980	85.5	25.5		4.5
400HW-5	400	1440	5	730	84	23.34		4
400HW-7	350	1260	6.8	730	86	28.1	30	4
400HW-8	400	1440	8	730	86	36.48		4
400HW-10	390	1400	10	730	86	44.5	55	4
400HW-12	400	1440	12.5	730	86	57		5.5
500HW-6	550	1980	6.2	580	86	38.9	45	5.5
500HW-7	650	2340	7	730	85	52.48		5.5
500HW-11	650	2340	11	730	87	80.57		5.5
650HW-7	940	3400	6.5	450	90	68	90	5.5
650HW-10	923	3322	9.7	490	89	98.6	115	5.5
