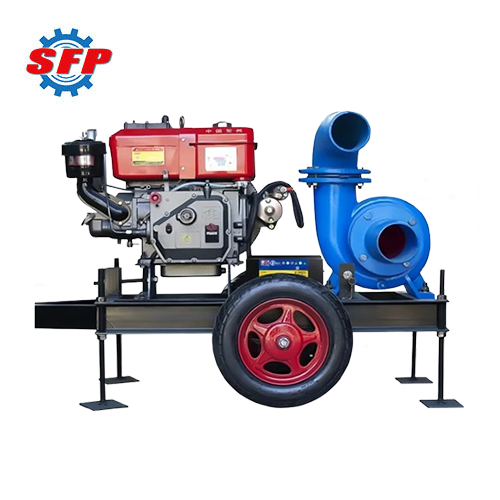

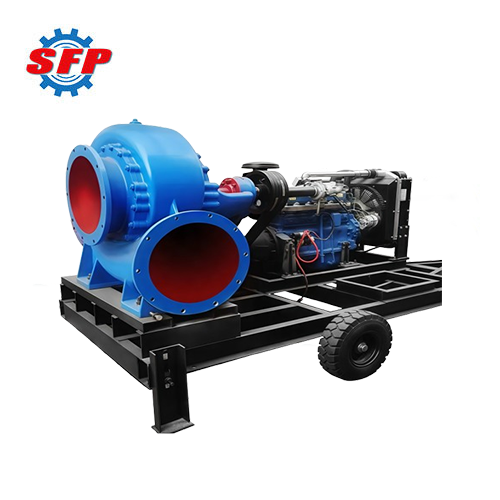

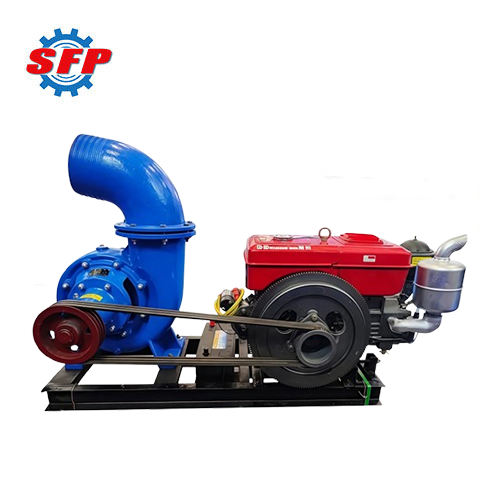

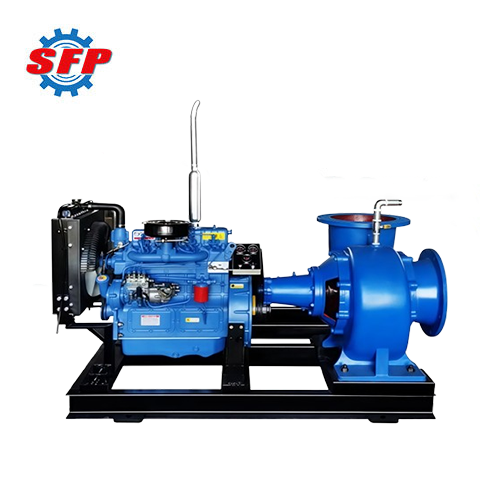

OEM Manufacturing HW Series High Flow Centrifugal Water Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

Mineral Water Bottle Filling Machine

G Series Sludge Screw Pump

ISW Series Horizontal Magnetic Pump Wholesale

ISW Series Inline Centrifugal Pump

LPG Gas Transfer Pump for Sale

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

HW series mixed flow pump is a high-efficiency, energy-saving, easy-to-operate, high-performance, easy-to-install, and long-lasting single-stage, single-suction pump designed for high-head applications. It is designed for heavy-duty industrial use in agriculture, chemical processing, power generation, metallurgy, papermaking, mining, and other industries, for conveying clean water or other liquids with physical and chemical properties similar to water.

Product Details:

HW series horizontal water centrifugal pump primarily consists of components such as the pump cover, impeller, pump casing, pump shaft, shaft sleeve, and bearing housing. Its shaft seal assembly comprises packing, a packing gland, and a packing ring, designed to prevent air from being drawn into the pump along the shaft and to prevent water from leaking out of the pump along the shaft.

Application:

1. Mining: Applicable for underground drainage, tailings conveyance, and concentrator plant return water.
2. Municipal: It is wuitable for urban water supply, drainage, stormwater pumping stations, and sewage plant lift stations.
3. Seawater Desalination: This pump is capable of seawater extraction, primary pressurization, and brine discharge applications.
4. Steel: Meets conveyance requirements for blast furnace circulating water, converter dust removal water, laminar cooling, and other processes.

Feature:

1. User requirements can be met by cutting the impeller outer diameter or replacing impellers with different performance characteristics.
2. This product features a front-and-back open structure for easy maintenance and inspection, minimizing downtime.
3. The cantilevered design allows for greater flexibility in pump installation and operation.

Performance Data:

Model	Capacity		Head	Speed	Effciency	Power(kw)		NPSHr
Model	(l/s)	(m³/h)	(m)	(r/min)	(%)	Shaft	Motor	(m)
100HW-5	25	90	5	2900	79	1.55	2.2	4
100HW-8	25	90	8	2900	81	2.42	3	4
100HW-12	25	90	12.5	2900	81	3.78	5.5	4
150HW-5	50	180	5	1450	82	2.99	4	2.7
150HW-8	50	180	8	1450	82	4.78		2.7
150HW-12	50	180	12.5	2900	82	7.47		6
200HW-4	95	340	4	1060	81	4.6		4
200HW-5	100	360	5	1450	81.5	6.01		4
200HW-8	100	360	8	1450	83.5	9.39	11	4
200HW-12	100	360	12.5	1450	83.5	14.68		4
250HW-4	125	450	4.2	980	82.5	6.3		4
250HW-5	150	540	5	1180	82	8.97		4
250HW-7	125	450	7	980	83	10.5	15	4
250HW-8	150	540	8	1180	84	14.01		4
250HW-12	150	540	12.5	1180	84	21.88		4
300HW-4	197	710	4	780	83.5	4.4	11	4
300HW-5	220	792	5	970	83	12.99		4
300HW-7	216	780	7	980	84	17.7	22	4
300HW-8	220	792	8	970	85	20.3		4
300HW-12	220	792	12.5	970	85	31.72		4
350HW-4	278	1000	4.3	980	85	16.6	22	4.5
350HW-8	278	1000	8	980	85.5	25.5		4.5
400HW-5	400	1440	5	730	84	23.34		4
400HW-7	350	1260	6.8	730	86	28.1	30	4
400HW-8	400	1440	8	730	86	36.48		4
400HW-10	390	1400	10	730	86	44.5	55	4
400HW-12	400	1440	12.5	730	86	57		5.5
500HW-6	550	1980	6.2	580	86	38.9	45	5.5
500HW-7	650	2340	7	730	85	52.48		5.5
500HW-11	650	2340	11	730	87	80.57		5.5
650HW-7	940	3400	6.5	450	90	68	90	5.5
650HW-10	923	3322	9.7	490	89	98.6	115	5.5
