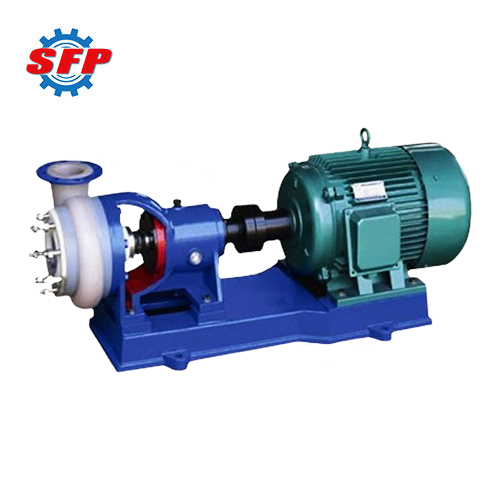

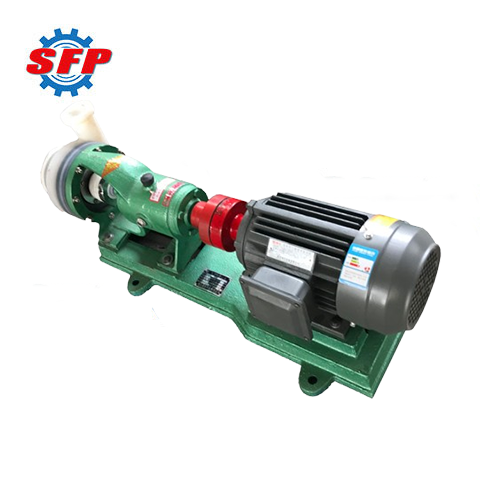

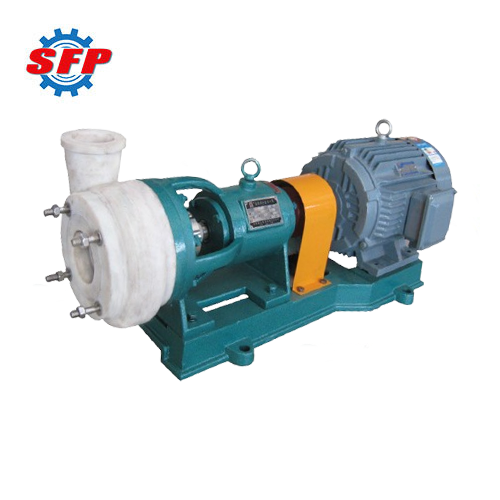

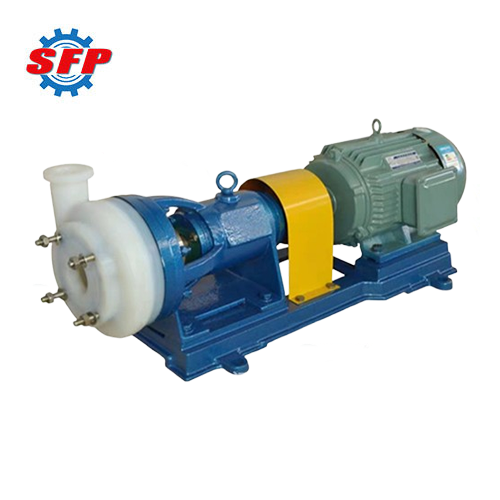

FSB series centrifugal pumps are a type of fluoroplastic alloy centrifugal pump, featuring outstanding corrosion resistance, high mechanical strength, anti-aging properties, non-toxic decomposition, and reliable performance. They are typically used in chemical processing, pharmaceutical production, metallurgy, electrolysis, and other industries to convey media such as hydrochloric acid, sulfuric acid, alkali solutions, strong oxidizing agents, and reducing agents at any concentration.
Product Details:
The fluid components of the FSB series chemical centrifugal pumps are manufactured from fluoroplastic alloys, offering exceptional corrosion resistance and high mechanical strength. To ensure reliable sealing performance, the pump is equipped with an external PTFE bellows mechanical seal featuring multi-layer protection.
Application:
FSB series fluoroplastic centrifugal pumps are suitable for conveying corrosive liquids of various concentrations. They find extensive application in industries such as petroleum, chemical, pharmaceutical, pesticide, acid washing, dye, coating, metallurgy, papermaking, electroplating, and food processing. Additionally, this series of pumps is the preferred equipment for automotive manufacturing and non-ferrous metal smelting industries.
Feature:
1. The impeller, pump cover, pump casing, front and rear sleeves, and other components of this pump are made of fluoroplastic, enabling the conveyance of acids, alkalis, strong oxidizing agents, organic solvents, and other substances at any concentration.
2. This pump features a self-lubricating seal chamber design. Combined with the high lubricity properties of fluoroplastic, it significantly reduces operational losses caused by field misoperation.
3. It adopts a rear-pullout structure, eliminating the need to disassemble inlet/outlet piping. Simply remove the rear cover to extract the rotor assembly, enabling mechanical seal replacement within minutes and reducing downtime by 70%.
Performance Data:
| Model |
Flow
(m³/h) |
Lift
(m) |
Motor Power
(kw) |
Speed
(r/min) |
NPSH
(m) |
Efficiency
(%) |
| 25FSB-25(D) |
3 |
25 |
1.5 |
2900 |
3 |
20 |
| 40FSB-15(D) |
5 |
15 |
1.5 |
2900 |
3 |
40 |
| 40FSB-20(D) |
10 |
20 |
2.2 |
2900 |
3 |
42 |
| 40FSB-30(D) |
10 |
30 |
3 |
2900 |
3 |
52 |
| 50FSB-20(D) |
12.5 |
20 |
3 |
2900 |
3.5 |
55 |
| 50FSB-25(D) |
12.5 |
25 |
3 |
2900 |
3.5 |
55 |
| 50FSB-30(D) |
15 |
30 |
4 |
2900 |
3.5 |
54 |
| 65FSB-32(D) |
25 |
32 |
5.5 |
2900 |
3.5 |
65 |
| 80FSB-20(D) |
50 |
20 |
5.5 |
2900 |
3 |
55 |
| 80FSB-25(D) |
50 |
25 |
5.5 |
2900 |
3.5 |
67 |
| 80FSB-32(D) |
50 |
32 |
7.5 |
2900 |
3.5 |
