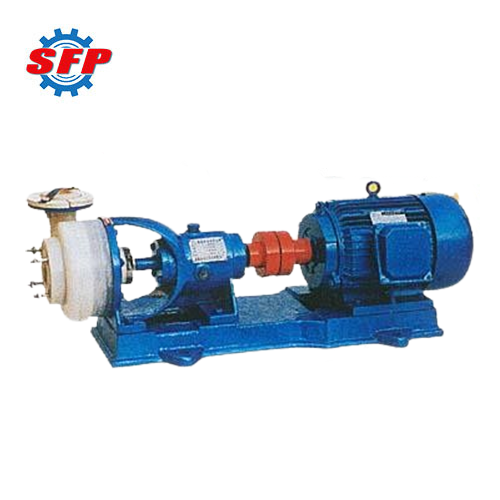

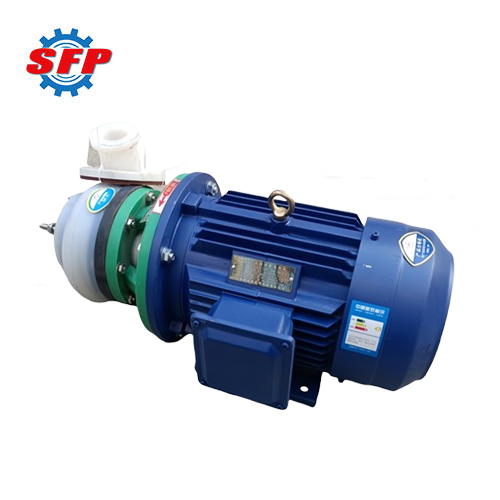

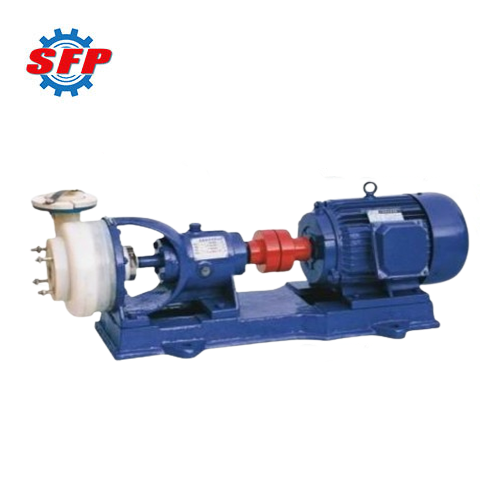

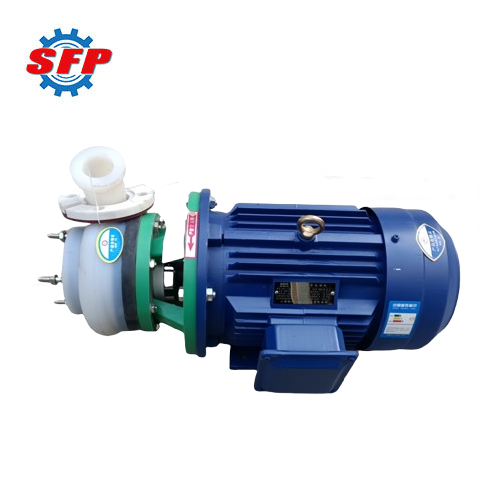

FSB series fluoroplastic centrifugal pumps are suitable for the long-term transportation of various acidic, oxidative, corrosive, and other media with physical properties similar to water. The flow-through components of the pump are entirely made of F46 or fluoroplastic alloy, combining the advantages of multiple plastics. They feature exceptional corrosion resistance, high mechanical strength, excellent sealing performance, and a compact structure.
.png)
| Model | Flow (m³/h) | Lift (m) | Motor Power (kw) |
speed (r/min) |
NPSH (m) | Efficiency (%) |
| 25FSB-25(D) | 3 | 25 | 1.5 | 2900 | 3 | 20 |
| 40FSB-15(D) | 5 | 15 | 1.5 | 2900 | 3 | 40 |
| 40FSB-20(D) | 10 | 20 | 2.2 | 2900 | 3 | 42 |
| 40FSB-30(D) | 10 | 30 | 3 | 2900 | 3 | 52 |
| 50FSB-20(D) | 12.5 | 20 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25(D) | 12.5 | 25 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30(D) | 15 | 30 | 4 | 2900 | 3.5 | 54 |
| 65FSB-32(D) | 25 | 32 | 5.5 | 2900 | 3.5 | 65 |
| 80FSB-20(D) | 50 | 20 | 5.5 | 2900 | 3 | 55 |
| 80FSB-25(D) | 50 | 25 | 5.5 | 2900 | 3.5 | 67 |
| 80FSB-32(D) | 50 | 32 | 7.5 | 2900 | 3.5 |
