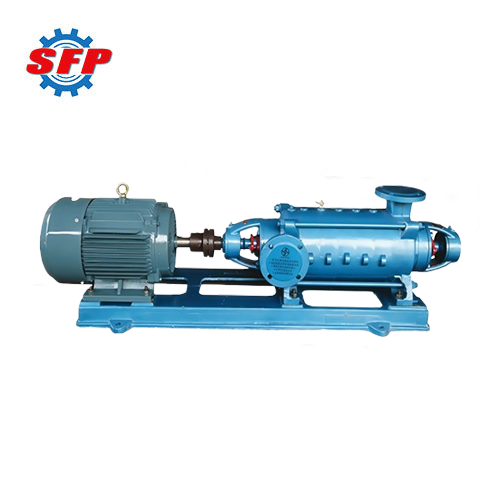

D Series Multistage Centrifugal Pump
D Series Multistage Centrifugal Pump
D Series High Pressure Centrifugal Pump
D series high pressure centrifugal pump is a multistage centrifugal pump characterized by high-efficiency delivery, superior performance, significant energy savings, and extended service life. It is suitable for conveying liquid media with physical and chemical properties similar to water, specifically engineered for high-head applications. This pump finds extensive use in mining drainage, industrial pressurization, boiler feedwater systems, long-distance water supply, and agricultural irrigation.
Head Lift: 49~650m
Flow Rate: 6.3-450m³/h
Motor Power: 3-1120kw
Product Description
Summarize:


D series multistage centrifugal pumps are available for handling clean water or other liquids with physical and chemical properties similar to water, provided their temperature does not exceed 80°C. For applications requiring the handling of hot water or mildly corrosive media, the pump's flow path components and seal configuration can be modified to meet the necessary conveyance requirements. The pumps feature high head and large flow capacity, making them particularly suitable for industrial-grade long-distance water supply, mine drainage, municipal high-pressure systems, and similar applications.

Product Details:

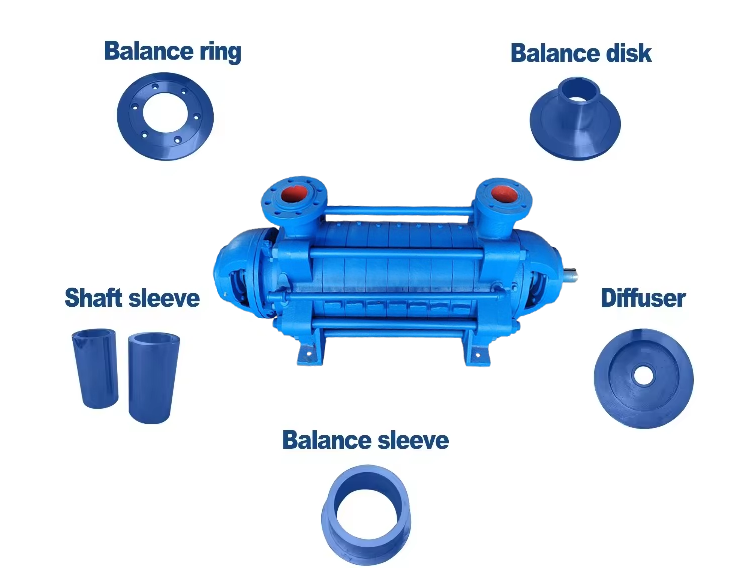

 D series horizontal centrifugal pump consists of components such as the rotor, bearings, seals, and couplings. Through the high-speed rotation of the impeller, the pump propels liquid from the impeller's center toward its periphery under centrifugal force, thereby converting the prime mover's mechanical energy into the liquid's kinetic and static pressure energy. During impeller rotation, liquid is continuously drawn in and discharged, creating a stable flow that achieves liquid transportation.
​​​​​​
Application:
D series multistage pumps are specifically designed for conveying media with physical and chemical properties similar to clean water. They are primarily used in industrial and municipal water supply and drainage systems, high-rise building pressurized water supply, landscape sprinkler systems, fire protection pressure boosting, long-distance water conveyance, heating systems, hot and cold water circulation pressurization for bathing facilities, and other applications.
Feature:
1. The pump employs a combination of mechanical seals or packing seals, utilizing high-quality hard alloy seal rings to significantly enhance the wear resistance of the sealing components.
2. It utilizes an advanced hydraulic model, ensuring safe and stable operation with low noise, extended service life, and convenient installation and maintenance.
3. With a compact structure and minimal footprint, the pump can be placed for outdoor use.
Performance Data:
