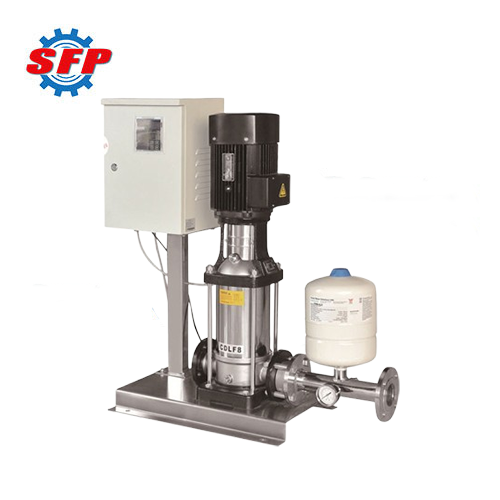

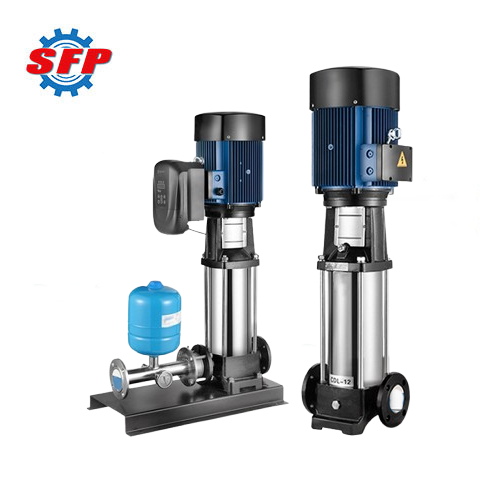

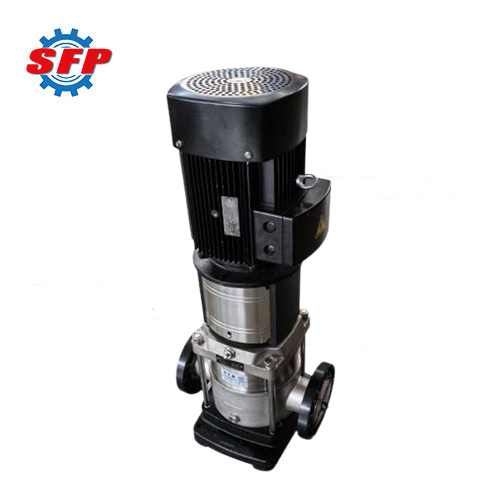

Factory CDLF Vertical Multistage Stainless Steel Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

ISW Series Horizontal Magnetic Pump Wholesale

ISW Series Inline Centrifugal Pump

LPG Gas Transfer Pump for Sale

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

CDLF stainless steel centrifugal pump is specifically designed for conveying clean liquid media free of solid particles or fibers, which is appropriate for production conditions requiring high head, low flow rate, and clean transportation. With its low noise, compact size, minimal footprint, and significant energy-saving performance, it has become the energy-efficient and quiet choice for systems such as high-rise water supply, industrial pressure boosting, boiler feedwater, and agricultural irrigation.

Product Details:

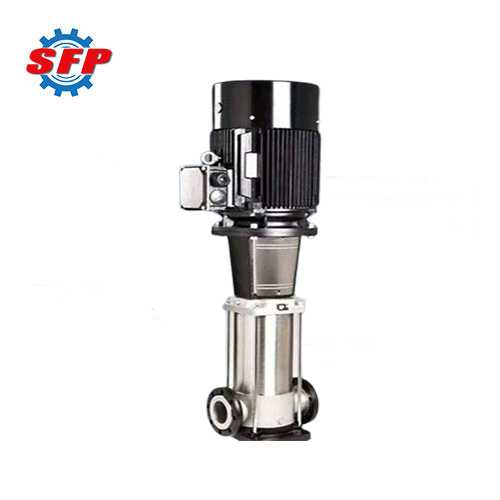

CDLF vertical centrifugal pump is driven by a standard motor, with the motor output shaft directly connected to the pump shaft via a coupling. Its pressure-resistant pump body and impeller assembly can be secured between the pump head and inlet/outlet sections using solid bolts, with this assembly required to remain coplanar at the pump base. While the product can be equipped with an intelligent protection device to effectively prevent dry running, phase loss, and overload conditions.

Application:

1. Irrigation: This pump meets requirements for farmland irrigation, sprinkler irrigation, and drip irrigation.
2. Industrial Boosting: It is suitable for process water systems, cleaning systems, high-pressure washing systems, and fire protection systems.
3. Water Treatment: This pump can be used in ultrafiltration systems, reverse osmosis systems, distillation systems, and swimming pool water treatment.
4. Water Supply Systems: Used for filtration and distribution in water treatment plants, zoned water supply, and pressure boosting for high-rise buildings.
5. Industrial Applications: For cooling and air conditioning systems, boiler feedwater and condensate systems, machine tool auxiliary systems, and transporting acidic or alkaline media.

Feature:

1. The use of advanced hydraulic modeling and cutting-edge manufacturing processes significantly enhances the pump's performance and service life.
2. As the inlet and outlet ports of this pump are both located on the same horizontal plane as the pump base, it can be directly integrated into pipeline systems.
3. The overflow section is fabricated from stainless steel plates via stamping and welding processes, making it suitable for mildly corrosive media applications.
4. Its shaft seal employs a composite mechanical seal combining hard alloy and fluororubber to improve operational reliability and enhance the temperature resistance of conveyed media.

Performance Data:

Model	Power	Flow Rate	1	1.2	1.6	2	2.4	2.8	3.2	3.5
Model	(KW)	(m³/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
CDL2.2	0.37	H(m)	18	17	16	15	13	12	10	8
CDL2.3	0.37	H(m)	27	26	24	22	20	18	15	12
CDL2.4	0.55	H(m)	36	35	33	30	26	24	20	16
CDL2.5	0.55	H(m)	45	43	40	37	33	30	24	20
CDL2.6	0.75	H(m)	53	52	50	45	40	36	30	24
CDL2.7	0.75	H(m)	63	61	57	52	47	41	35	28
CDL2.9	1.1	H(m)	80	78	73	67	61	54	45	37
CDL2.11	1.1	H(m)	98	95	89	82	73	64	54	44
CDL2.13	1.5	H(m)	116	114	106	98	89	78	65	52
CDL2.15	1.5	H(m)	134	130	123	112	100	90	73	60
CDL2.18	2.2	H(m)	161	157	148	136	121	108	91	76
CDL2.22	2.2	H(m)	197	192	180	165	148	130	110	90
CDL2.26	2.2	H(m)	232	228	214	198	179	158	130	110
