CDL/CDLF series multistage pumps are highly efficient, energy-saving, environmentally friendly vertical multistage centrifugal pumps suitable for conveying clear water or liquids with physical and chemical properties similar to those of clear water. Its design concept focuses on energy saving and environmental protection, safety and reliability, and adopts a new hydraulic design mode of industrial grade, which can ensure that the pump can be effectively transported with stable performance. Therefore, it can be widely applied in the fields of water supply, industrial pressurization, industrial liquid transportation, water treatment and agricultural irrigation.
Product Details:

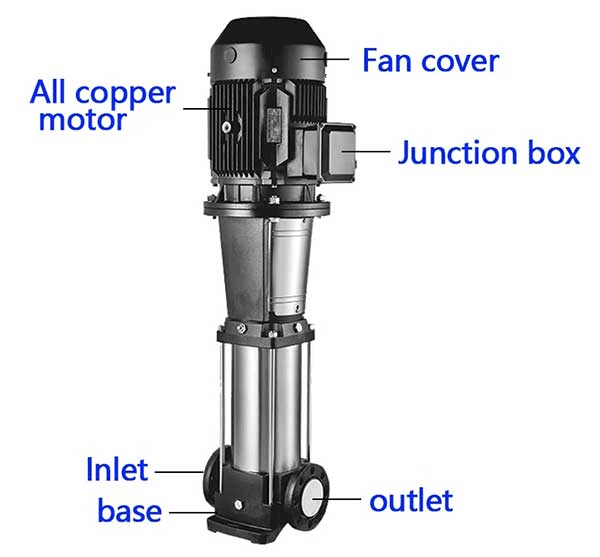

CDL/CDLF multistage centrifugal pumps adopt new sealing technology and can be easily dismantled with stainless steel casing mechanical seal. The unit is designed to be driven by a standard motor with the motor output shaft directly connected to the pump shaft by means of a coupling. Its pressure-resistant cylinder and runner assembly can be fixed between the pump head and the inlet and outlet sections by solid bolts, and its position needs to be on the same plane at the bottom of the pump. Also, the pump can be equipped with an intelligent protector, thus effectively preventing dry rotation, phase loss and overload.
.png)
Application:
1. Water Supply: Water plant filtration and transportation, water plant area water supply, main pipe pressurization, high-rise building pressurization.
2. Water Treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator and swimming pool water treatment system.
3. Industrial Pressurization: Process water system, cleaning system, high-pressure flushing system, fire-fighting system.
4. Irrigation: Agricultural irrigation, sprinkler irrigation, drip irrigation.
Feature:
1. The inlet and outlet of CDL/CDLF centrifugal pumps are located on the same level of the pump base. 6. the pump can be equipped with intelligent control system according to the user's needs.
2. Its shaft seal of this machine adopts mechanical seal made of hard alloy and fluorine rubber, which can improve the reliability of pump operation and the temperature of conveyed medium.
3. Intelligent protector can be configured according to the user's need, which can effectively protect the pump from dry rotation, phase failure and overload.
4. The overflow part of the machine is made of stainless steel plate stamping and welding, which makes the pump suitable for mildly corrosive media.
5. Adoption of excellent hydraulic model and advanced manufacturing technology greatly improves the performance and service life of the pump.
6. With the features of compact structure, small volume, light weight, low noise, energy saving effect is remarkable, easy maintenance.
Performance Data:
| Model |
Power |
Flow Rate |
1 |
1.2 |
1.6 |
2 |
2.4 |
2.8 |
3.2 |
3.5 |
| (KW) |
(m3/h) |
| CDL2.2 |
0.37 |
H(m) |
18 |
17 |
16 |
15 |
13 |
12 |
10 |
8 |
| CDL2.3 |
0.37 |
H(m) |
27 |
26 |
24 |
22 |
20 |
18 |
15 |
12 |
| CDL2.4 |
0.55 |
H(m) |
36 |
35 |
33 |
30 |
26 |
24 |
20 |
16 |
| CDL2.5 |
0.55 |
H(m) |
45 |
43 |
40 |
37 |
33 |
30 |
24 |
20 |
| CDL2.6 |
0.75 |
H(m) |
53 |
52 |
50 |
45 |
40 |
36 |
30 |
24 |
| CDL2.7 |
0.75 |
H(m) |
63 |
61 |
57 |
52 |
47 |
41 |
35 |
28 |
| CDL2.9 |
1.1 |
H(m) |
80 |
78 |
73 |
67 |
61 |
54 |
45 |
37 |
| CDL2.11 |
1.1 |
H(m) |
98 |
95 |
89 |
82 |
73 |
64 |
54 |
44 |
| CDL2.13 |
1.5 |
H(m) |
116 |
114 |
106 |
98 |
89 |
78 |
65 |
52 |
| CDL2.15 |
1.5 |
H(m) |
134 |
130 |
123 |
112 |
100 |
90 |
73 |
60 |
| CDL2.18 |
2.2 |
H(m) |
161 |
157 |
148 |
136 |
121 |
108 |
91 |
76 |
| CDL2.22 |
2.2 |
H(m) |
197 |
192 |
180 |
165 |
148 |
130 |
110 |
90 |
| CDL2.26 |
2.2 |
H(m) |
232 |
228 |
214 |
198 |
179 |
158 |
130 |
110 |
