Energy Saving ZYB Series Electric Edible Oil Gear Pump

ZYB Series Electric Oil Pump

ZYB series electric oil pumps are commonly used for conveying medium with temperature not higher than 260 ℃, viscosity not greater than 150 mm²/S and containing non-metallic impurities. It is available for transferring heavy oil, diesel oil, coal tar and grain and other media in chemical, petroleum, daily chemical, construction, food and other industries. Moreover, due to its stable operation, reliable performance and high conveying efficiency, it is especially suitable for the occasions requiring stable working pressure and long-term continuous work, such as strong lubrication system, fuel oil conveying and injection in the fuel oil burning system, etc.

Power: 3.0-22KW

Pressure: 0.4-4.0 MPa

Flow Rate: 4-60m³/h

Send Email Chat Now

Share With:

Product Classification

Gear Pump

Centrifugal Pump

Rotary Lobe Pump

Screw Pump

LPG Gas Pump

Filling Machine

Self-Priming Pump

Diaphragm Pump

Vacuum Pump

Multistage Pump

Magnetic Pump

Chemical Pump

Application

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

ZYB series electric oil gear pump adopts self-sealing lubrication and self-adjusting structure design, and the parts and components are made of high wear-resistant materials, featuring compact structure, smooth operation, good self-absorption performance, high conveying efficiency and strong adaptability. This machine can handle diesel oil, heavy oil, coal tar, motor oil and other media with temperature not higher than 260℃, viscosity not higher than 150 mm²/S and containing non-metallic impurities. In addition, it has good self-priming performance and can maintain stable working condition when conveying media containing impurities.

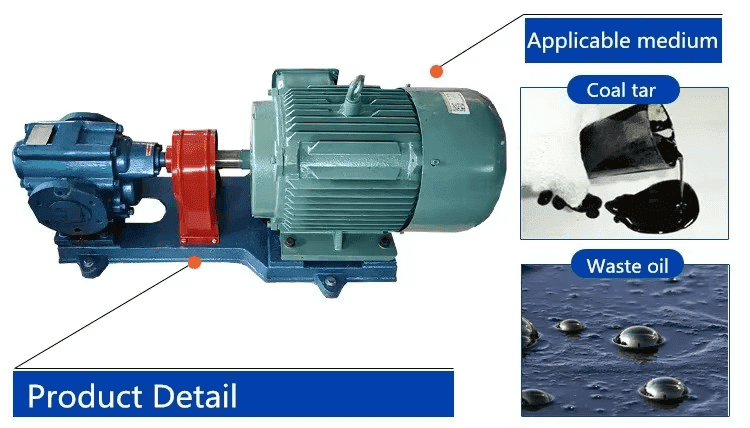

Product Details:

ZYB series gear oil pumps are mainly composed of pump body, pump cover, gear, shaft seal, gland and other components. Two active gears and passive gears of the same size are installed in the pump body, forming a sealed working chamber. When the motor drives the active gear of the gear pump to rotate, the passive gear also rotates. As the gears are disengaged, the volume between the teeth gradually increases, forming a local vacuum, and the oil in the tank will enter the teeth through the suction port under the action of atmospheric pressure. As the gears mesh, the volume between the teeth gradually decreases, and the oil is extruded and discharged from the outlet.

Application:

It is suitable for conveying diesel oil, heavy oil, residual oil, fuel oil and medium fuel pumps that can be used as fuel. It is especially suitable for fuel pumps of road and bridge engineering mixing stations and power plant burners. It should be noted that this machine is not suitable for conveying highly volatile or low flash point liquids, such as ammonia, benzene and so on.

Feature:

1. The pump has good self-priming performance and can maintain stable working condition when conveying media containing impurities.
2. ZYB series cooking oil pump adopts self-sealing lubrication and gap automatic adjustment structure, compact design, easy to install and maintain.
3. It is designed with full consideration of interchangeability with KCB series ordinary gear pumps, showing long life and stable pressure when conveying lubricated and impurity-free media.

Performance Data:

Type	Inlet & Outlet	Flow		Pressure	Speed	Suction Height	Power
Type	mm	m3/h	L/min	MPa	r/min	m	kw
ZYB4/0.6	25	4	66	0.6	960	5	1.5
ZYB7/0.6	40	7	116	0.6	960	5	3
ZYB13/0.6	50	13	216	0.6	960	5	4
ZYB13/1.0	50	13	216	1.0	960	5	5.5
ZYB18/0.6	70	18	300	0.6	960	5	7.5
ZYB18/1.0	70	18	300	1.0	960	5	11
ZYB30/0.6	80	30	500	0.6	960	5	7.5
ZYB38/0.4	100	38	633	0.4	960	5	15
ZYB45/0.6	100	45	750	0.4	960	5	18.5
ZYB60/0.6	100	60	1000	0.4	960	5	22
