Product Description

Summarize:

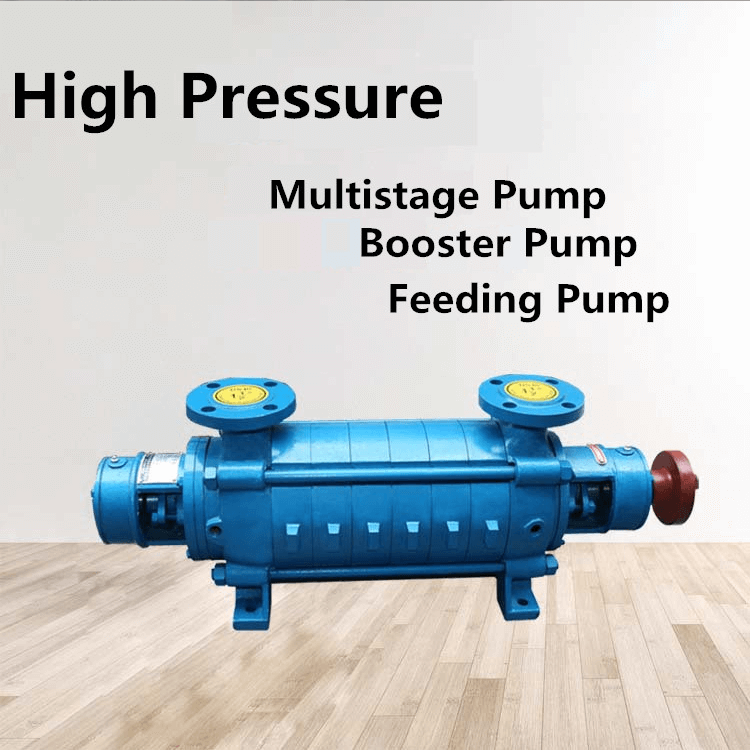

GC series centrifugal boiler feed water pump is horizontal single-suction multi-stage sectional centrifugal pump, mainly used for boiler water supply, so it is also called boiler water supply pump. This series of multi-stage pumps is suitable for conveying clear water or other non-corrosive liquids with physical and chemical properties similar to water, and can be widely used in boiler water supply of industrial and mining enterprises, garden irrigation, urban life water supply and other fields. At the same time, it can also realize the multi-phase transportation of liquid, gas and solid, which cannot be replaced by other pumps.

Product Details:

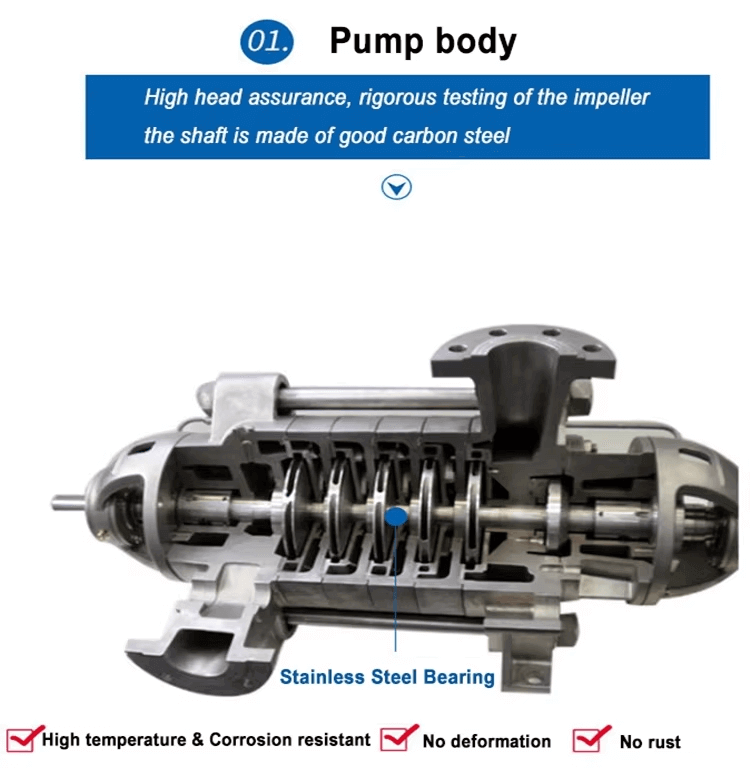

GC series hot water centrifugal pumps are horizontal single suction multi-stage centrifugal pumps with a structural design that enables the pumps to transport liquids smoothly during operation. When the motor drives the impeller to rotate, the water in the impeller rotates with it, and under the action of centrifugal force, the water is thrown to the edge of the impeller, thus producing a vacuum in the centre of the impeller. In the vacuum state, the water is sucked into the centre of the impeller from the suction pipe and finally discharged through the outlet pipe.

Application:

GC series centrifugal boiler feed water pump is especially suitable for small boiler feed water, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire boosting, water washing, food, brewing, medicine, chemical industry, aquaculture, environmental protection, chemical process and machine tool supporting industries, as a power equipment for water supply and drainage.

Feature:

1. The pump adopts reliable mechanical seal, which can ensure no leakage during the operation of the pump and improve the safety and environmental protection of the pump.
2. It adopts advanced hydraulic model with high efficiency and wide performance range, which can effectively reduce energy consumption.
3. It adopts segmented structure, which is easy to disassemble and repair, and reduce the maintenance cost.
4. This pump runs smoothly and has low noise, which can reduce the impact on the environment.

Performance Data:

Type	Capacity (m3/h)	Head (m)	Power (KW)
1.5GC-5*2	6	46	3
1.5GC-5*3	6	69	4
1.5GC-5*4	6	92	5.5
2GC-5*2	10	64	7.5
2GC-5*3	10	96	11
2GC-5*4	10	128	15
2.5GC-6*2	15	62	7.5
2.5GC-6*2	20	54	7.5
2.5GC-6*3	15	93	11
2.5GC-6*3	20	81	11
2.5GC-6*4	15	124	15
2.5GC-6*4	20	108	15
4GC-8*2	30	86	22
	45	82
	55	76
4GC-8*3	30	129	30
	45	123
	55	144
4GC-8*4	30	172	45
	45	164
	55	152
5GC-8*2	72	138	55
	90	129
	110	120
5GC-8*2A	72	122	55
	90	144
	110	106
5GC-8*2B	72	117	45
	90	110
	110	102
