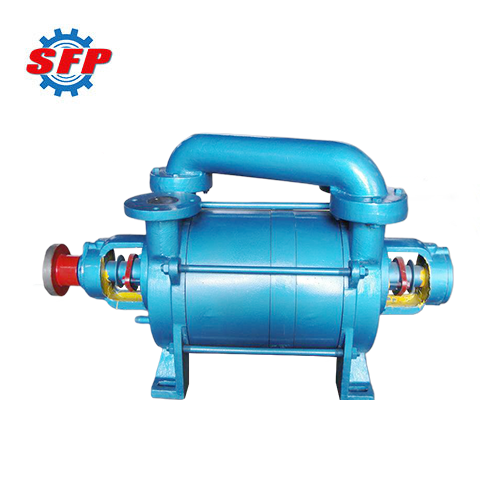

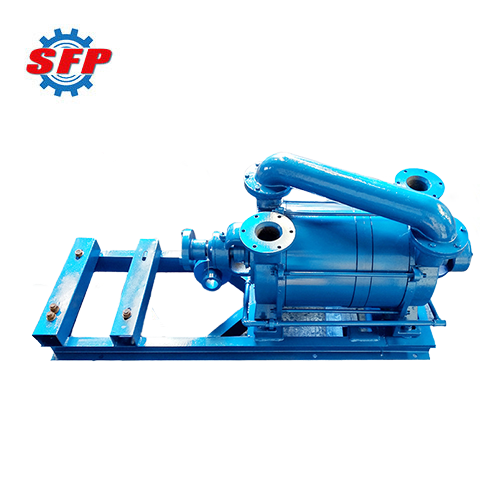

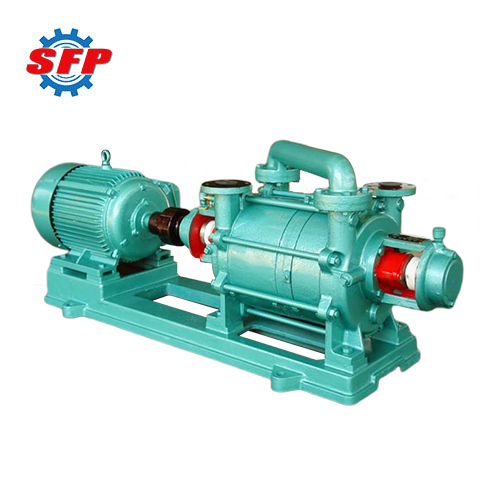

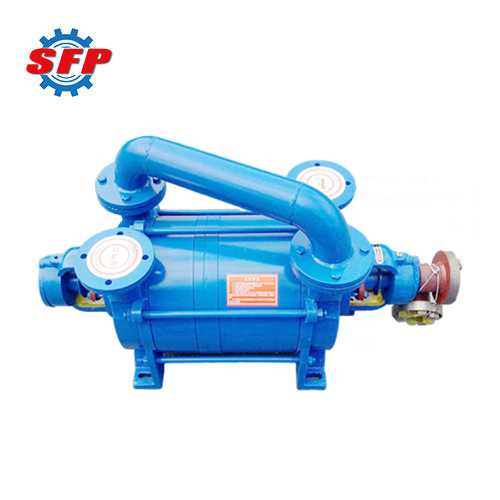

2SK series industrial vacuum pumps are two-stage water ring vacuum pumps that can extract air and other non-corrosive, water-insoluble gases that do not contain solid particles in industries such as textiles, pharmaceuticals, food, metallurgy, chemicals, and electronics. Compared with single-stage water ring vacuum pumps, this series of vacuum pumps has higher pumping efficiency and vacuum degree in high vacuum areas, and can more effectively meet the needs of vacuum environments.
Product Details:
2SK two-stage vacuum pump creates a rotating water ring inside the pump housing through the rotation of the impeller, utilizing centrifugal force. The impeller is eccentrically mounted inside the pump housing. When the impeller rotates, water is flung outward by centrifugal force, forming a water ring. The inner surface of the water ring contacts the impeller hub. As the impeller rotates, the inner surface of the water ring gradually separates from the hub, creating a cavity. The gas to be drawn in enters the cavity through the inlet pipe, thereby achieving gas suction and compression.
Application:

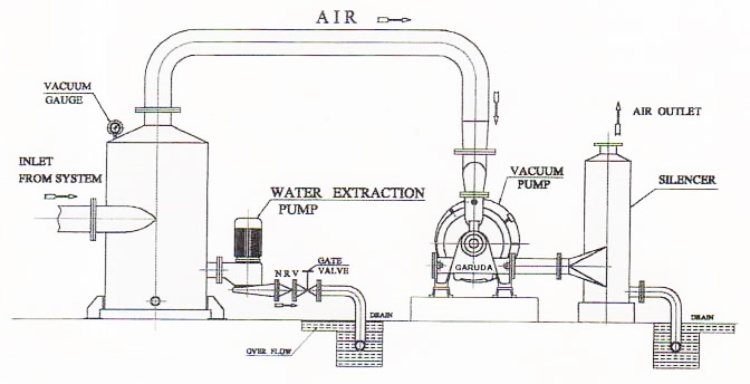

2SK series vacuum pumps can be deployed in the food, chemical, pharmaceutical, and textile industries for processes such as vacuum dehydration, vacuum drying, vacuum packaging, vacuum evaporation, vacuum concentration, and vacuum distillation.
Feature:
1. It primarily uses water as the working medium, ensuring simple maintenance and low operational costs.
2. This pump features a compact structural design, occupying minimal space and offering convenient installation and operation.
3. In high-vacuum applications, the pump boasts high vacuum levels and rapid pumping speeds, effectively meeting the demands of high-vacuum environments.
4. It exhibits excellent operational stability and reliability, capable of continuous operation for extended periods in production environments and stable performance under harsh conditions.
Performance Data:
| Model |
Inspiratory Volume
(m³/min) |
Ultimate Vacuum |
Power
(kW) |
Speed
(r.p.m) |
Water
Consumption
(L/min) |
Weight
(kg) |
| Max |
Suction pressure
is -0.093MPa |
mmHg |
MPa |
| 2SK-1.5 |
1.5 |
0.9 |
-735 |
-0.098 |
4 |
1440 |
10~15 |
200 |
| 2SK-3 |
3 |
2 |
-735 |
-0.098 |
7.5 |
1440 |
15~20 |
310 |
| 2SK-6 |
6 |
4 |
-735 |
-0.098 |
15 |
1460 |
25~35 |
460 |
| 2SK-12 |
12 |
8 |
-735 |
-0.098 |
22 |
970 |
40~50 |
730 |
| 2SK-20 |
20 |
14 |
-735 |
-0.098 |
45 |
740 |
60~80 |
1650 |
| 2SK-30 |
30 |
20 |
-735 |
-0.098 |
55 |
740 |
70~90 |
2300 |
