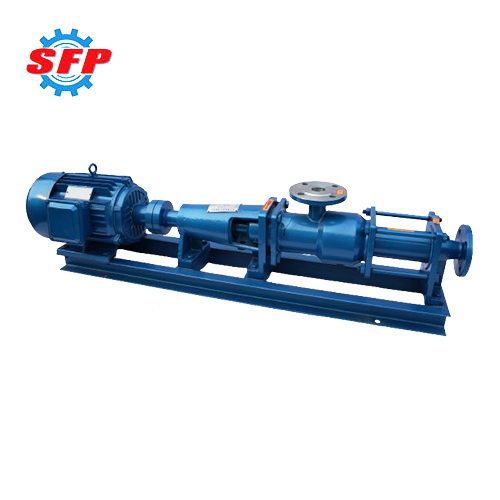

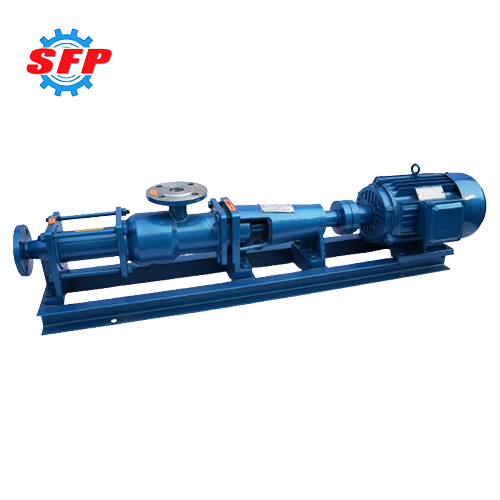

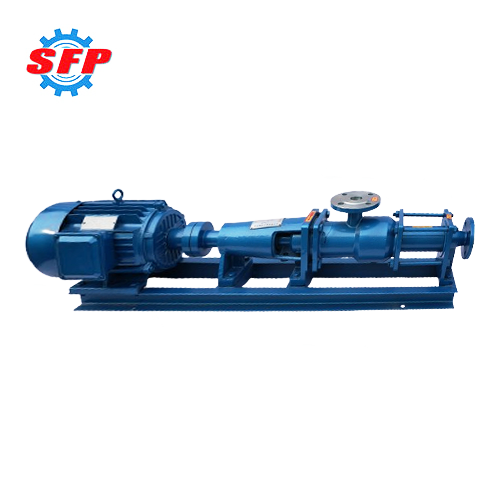

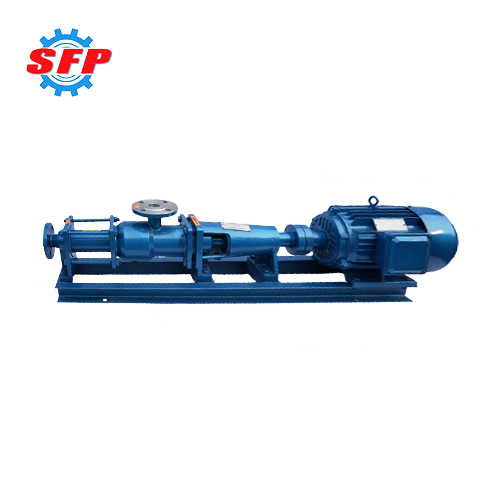

G series mud screw pump belongs to a positive displacement pump designed based on the single-screw working principle, featuring stable flow, high passage capacity, minimal pressure pulsation, and simple maintenance. It is primarily used in mining, chemical processing, wastewater treatment, pharmaceuticals, and food industries for conveying high-viscosity media containing hard suspended particles or fibers. Moreover, this pump ensures the conveyed medium remains free from shear damage during transportation, making it an ideal choice for handling sensitive and fragile materials.
(1).png)
(1).png)
| Model | Flow (m³/h) |
Pressure (MPa) |
Speed (r/min) |
Motor Power (kw) |
Inlet Size (mm) |
Outlet Size (mm) |
Max Solid Size (mm) |
Max Fiber Length (mm) |
| G10-1 | 0.1 | 0.6 | 960 | 0.55 | 25 | 25 | 0.8 | 15 |
| G10-2 | 1.2 | 0.55 | 25 | 25 | ||||
| G13-1 | 0.4 | 0.6 | 960 | 0.55 | 25 | 25 | 0.8 | 15 |
| G13-2 | 1.2 | 0.55 | 25 | 25 | ||||
| G15-1 | 0.6 | 0.6 | 960 | 0.55 | 25 | 25 | 1 | 20 |
| G15-2 | 1.2 | 0.75 | 25 | 25 | ||||
| G20-1 | 0.8 | 0.6 | 960 | 0.75 | 25 | 25 | 1.5 | 25 |
| G20-2 | 0.6 | 1.1 | 25 | 25 | ||||
| G25-1 | 2 | 0.6 | 960 | 1.5 | 32 | 25 | 2 | 30 |
| G25-2 | 1.2 | 2.2 | 32 | 25 | ||||
| G30-1 | 5 | 0.6 | 960 | 2.2 | 50 | 40 | 2.5 | 30 |
| G30-2 | 1.2 | 3 | 50 | 40 | ||||
| G35-1 | 8 | 0.6 | 960 | 3 | 65 | 50 | 3 | 40 |
| G35-2 | 1.2 | 4 | 65 | 50 | ||||
| G40-1 | 12 | 0.6 | 960 | 4 | 80 | 65 | 3.8 | 45 |
| G40-2 | 1.2 | 5.5 | 80 | 65 | ||||
| G50-1 | 20 | 0.6 | 960 | 5.5 | 100 | 80 | 5 | 50 |
| G50-2 | 1.2 | 7.5 | 100 | 80 | ||||
| G60-1 | 30 | 0.6 | 960 | 11 | 125 | 100 | 6 | 60 |
| G60-2 | 1.2 | 15 | 125 | 100 | ||||
| G70-1 | 45 | 0.6 | 720 | 11 | 150 | 125 | 8 | 70 |
| G70-2 | 1.2 | 18.5 | ||||||
| G85-1 | 65 | 0.6 | 720 | 15 | 150 | 150 | 10 | 80 |
| G85-2 | 0.6 | 30 | ||||||
| G105-1 | 80 | 0.6 | 720 | 22 | 200 | 150 | 10 | 80 |
| G135-1 | 100 | 0.6 | 720 | 30 | 200 | 150 | 10 | 80 |
