Product Description

Summarize:

3RP series lobe rotor pumps are designed to handle corrosive media and high viscosity suspensions containing solid particles, and can be applied to daily chemical, petroleum, biopharmaceutical, brewing, food and other processing industries. The pump has a stable flow rate and pressure, can meet the requirements of different industries and different working conditions. Moreover, it also has the advantages of strong self-priming ability, wide application, reasonable design and convenient maintenance.

Product Details:

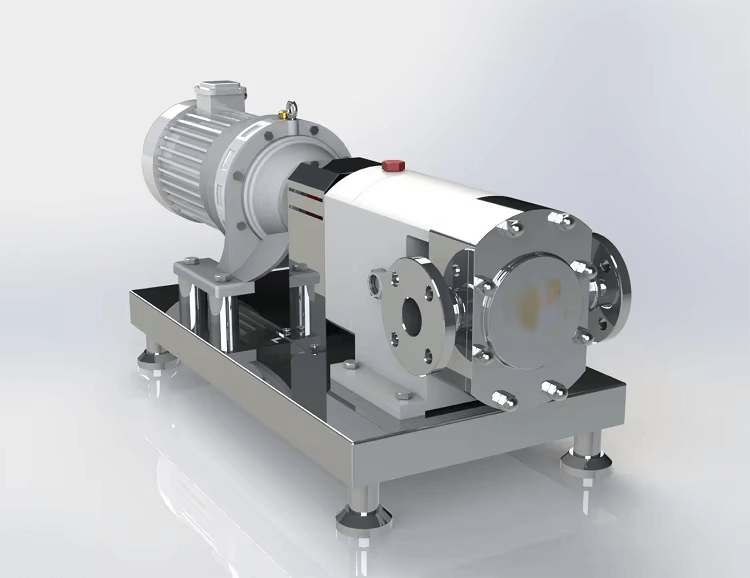

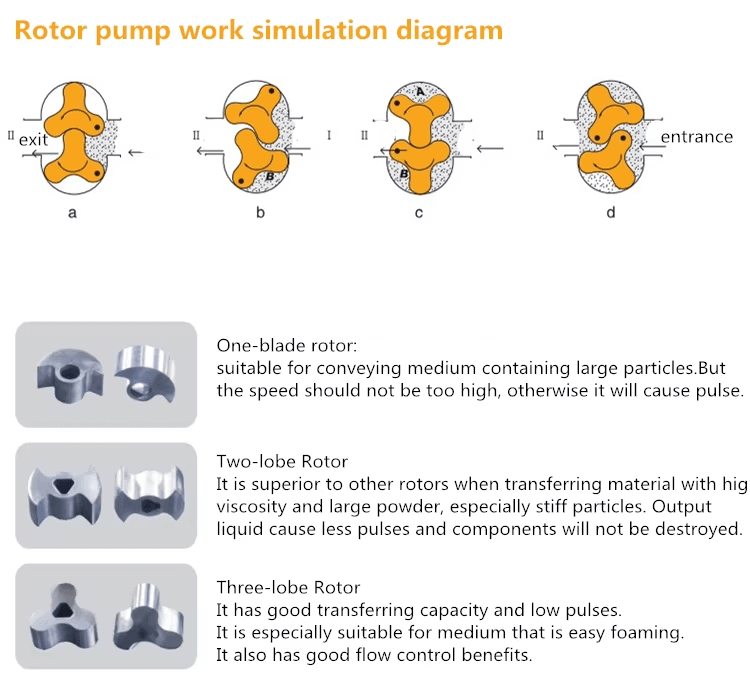

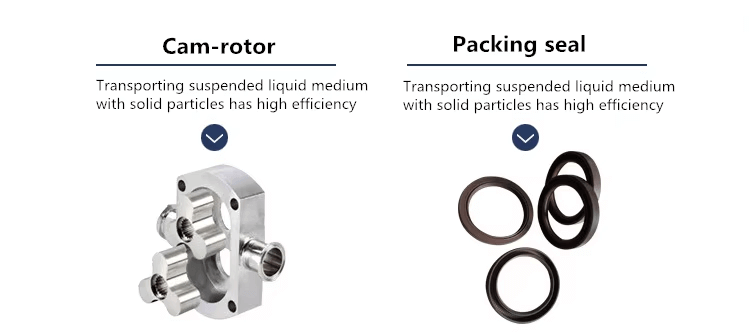

3RP small lobe rotor pump is a kind of stainless steel rotary lobe pump pump, which is mainly consists mainly of a rotor, a shaft seal, a gearbox and a pair of synchronized meshing active gears, which drive the rotor to convey the medium. It consists of two synchronized rotors and cams driven by a pair of synchronized gears in the gearbox. The two rotors rotate in opposite directions driven by the main shaft and the secondary shaft, which can change the volume of the pump and increase the vacuum and discharge pressure.

Application:

3RP series small lobe rotor pumps are suitable for conveying suspended liquids containing solid particles and media with high corrosive and hygienic requirements.
1. Food Industry: Milk, yogurt, cream, ice cream, etc.
2. Chemical Industry: Gasoline, diesel, kerosene, crude oil, etc.
3. Construction Industry: Various paints, coatings, resins and so on.
4. Daily Chemical Industry: Facial cleanser, shampoo, detergent, etc.
5. Environmental Protection Industry: Slurry, manure, fertilizer solution, etc.
6. Other Industries: Nanomaterials, paper, textile, plastic, biochemical, coal, etc.
7. Pharmaceutical Industry: A variety of health care products, pharmaceuticals, vaccines and so on.

Advantage:

1. Wide range of application: It can ensure the reliability of continuous operation and no leakage time. With the use of special materials, the screw pump can convey sludge, sewage and other media containing solid particles. The viscosity of the medium can be ≤500000cp, and slurry with 70% solid content. It can convey vapor, liquid and solid three-phase flow mixture. After the configuration of frequency converter, the flow rate can be adjusted at will, and can be used as a general metering pump.
2. Customized features: According to user needs, in the pump shell to increase the thermal insulation device. According to the user's connection requirements, optional flange type, screw type, fast interface type.
3. High efficiency and energy saving: Keep a certain gap between rotor and rotor, no friction coefficient, long service life.
4. Smooth conveying: With the features of energy efficient, smooth conveying, low failure rate, reliable sealing, low noise.
5. Convenient maintenance: Simple assembly and disassembly, easy maintenance and cleaning, few wearing parts.

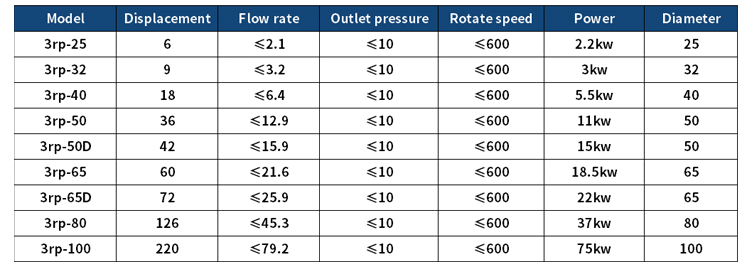

Performance Data:

Model	Flow (L/100r)	Discharge Pressure (bar)	Inlet/Outlet (mm)	Rev (r/min)	Medium Viscosity (cp)
3rp-25	12.5	≤10	25	≤600	1-2000000
3rp-40	21	≤10	40	≤600	1-2000000
3rp-50	52	≤10	50	≤600	1-2000000
3rp-80	107	≤10	80	≤600	1-2000000
3rp-100	156	≤10	100	≤600	1-2000000
3rp-125	680	≤10	125	≤600	1-2000000
3rp-150	1280	≤10	150	≤600	1-2000000
3rp-200	2000	≤10	200	≤600	1-2000000
3rp-250	3000	≤10	250	≤600	1-2000000
3rp-300	4000	≤10	300	≤600	1-2000000
