Product Description

Summarize:

ZYB series electric oil pump adopts self-sealing lubrication, gap automatic adjustment structure, and the parts are made of high wear-resistant materials. The product has strong interchangeability, its shape and installation dimensions and technical parameters are the same as those of KCB series pumps, so the interchangeability can be accomplished in case of emergency. In addition, when the liquid is contaminated, the working life of the pump is more than 10 times of the general gear pump. This machine has the features of compact structure, good self-absorption performance, high efficiency and strong adaptability, etc. When the liquid is contaminated, the working life of the pump is more than 10 times that of general gear pumps.

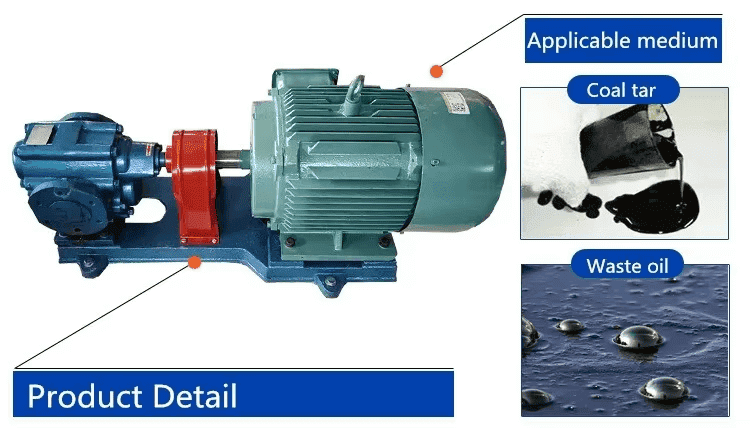

Product Details:

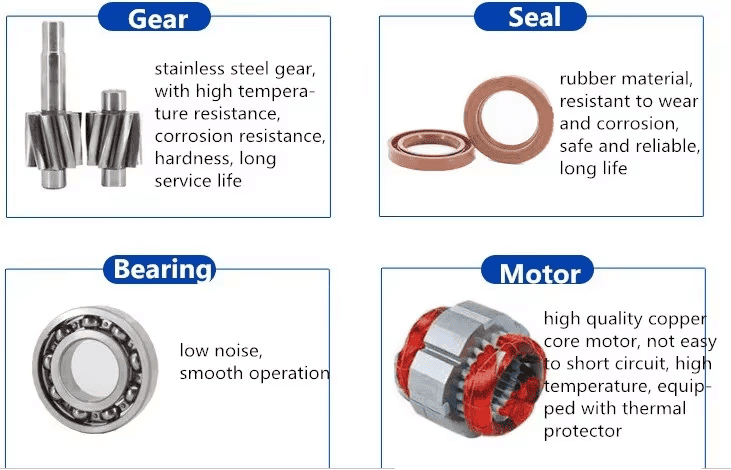

ZYB series electric oil pump's main parts and components are made of more high-quality wear-resistant materials, which are heat-treated to have high strength and hardness. A number of original hydraulic balance technology is adopted in the structure, which makes the pump work at high pressure with high efficiency, low noise, smooth operation, long pressure holding time and other unique properties.

Application:

ZYB series gear oil pumps are suitable for transporting impurities such as heavy oil, diesel oil, coal tar and grain, oil, chemicals, building materials and daily chemical products with a temperature not higher than 260 ° C and a viscosity of not more than 150 mm 2 /S containing non-metallic impurities. It is especially suitable for fuel pumps of road and bridge engineering mixing stations and power plant burners. However, it should be noted that it is not suitable to transport liquids with high volatility or low flash point, such as ammonia and benzene.

Feature:

1. This machine adopts self-sealing lubrication and automatic clearance adjustment structure, featuring simple structure and reasonable design.
2. It has good self-priming ability, which can suck in liquid automatically to a certain extent, and can complete self-priming without additional auxiliary devices.
3. The internal parts are optimized design, which makes the gears bear less torque, bearing load and wear in the work, thus effectively improving the pump conveying efficiency.

Performance Data:

Type	Inlet and Outlet	Flow		Pressure	Speed	Suction Height	Power
Type	mm	m3/h	L/min	MPa	r/min	m	kw
ZYB4/0.6	25	4	66	0.6	960	5	1.5
ZYB7/0.6	40	7	116	0.6	960	5	3
ZYB13/0.6	50	13	216	0.6	960	5	4
ZYB13/1.0	50	13	216	1.0	960	5	5.5
ZYB18/0.6	70	18	300	0.6	960	5	7.5
ZYB18/1.0	70	18	300	1.0	960	5	11
ZYB30/0.6	80	30	500	0.6	960	5	7.5
ZYB38/0.4	100	38	633	0.4	960	5	15
ZYB45/0.6	100	45	750	0.4	960	5	18.5
ZYB60/0.6	100	60	1000	0.4	960	5	22
