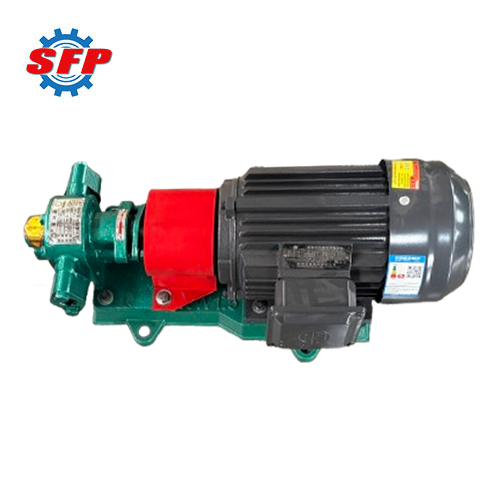

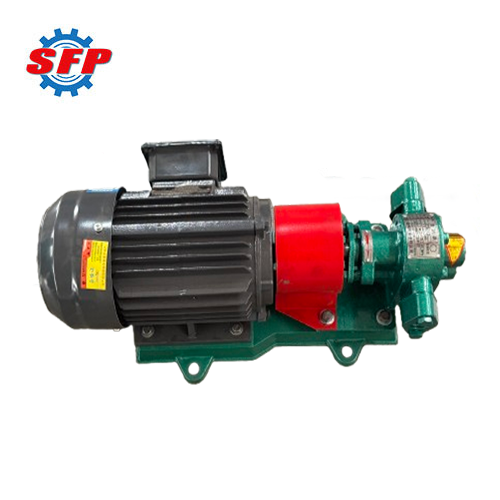

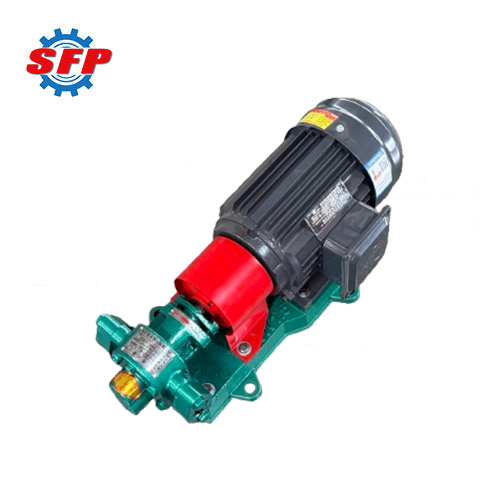

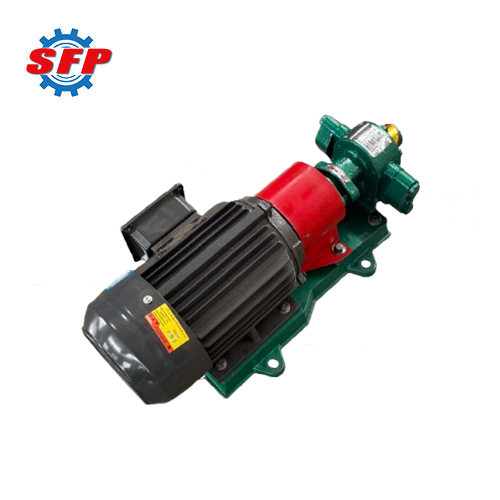

China Factory ZYB Cast Iron High Temperature Heavy Oil Gear Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

LPG Gas Pump for Sale

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

ZYB series gear pumps incorporate a positive displacement design, enabling them to effectively minimize fluctuations in delivery performance caused by medium viscosity when pumping heavy oil, diesel, fuel oil, and high-viscosity lubricating oil. Meanwhile, with their high volumetric efficiency and robust load-bearing capacity, these pumps meet the demands of industrial applications for continuous oil supply, stable pressure buildup, and precise delivery. As a result, whether for transferring liquids between storage tanks or providing a continuous oil supply to combustion equipment, generator sets, boilers, and industrial production lines, these pumps prove to be the core power equipment in oil delivery systems.

Product Details:

The ZYB oil pump operates as follows: during operation, the drive gear rotates the driven gear in sync. After entering the pump housing, the fluid is drawn into the working space between the gears and the pump chamber and moves from the suction side to the discharge side as the gears rotate. As the gears re-engage, the volume of the working chamber gradually decreases, causing the fluid to be compressed and generating discharge pressure, thereby enabling continuous delivery.

Application:

ZYB horizontal gear pumps serve various applications in fuel systems, the petroleum industry, and industrial production processes to handle applications such as the transfer of diesel, heavy oil, and fuel oil, boiler fuel supply, oil loading and unloading, lubricating oil circulation, and raw material conveyance.

Feature:

1. Even under high-pressure conditions, it maintains high efficiency, low noise, minimal pulsation, and a long pressure-holding time.
2. ZYB series gears are highly effective for high-viscosity oil media and can still maintain stable delivery performance through the gear working chamber even under low flow rates.
3. The pump body and key components of this pump are manufactured from high-strength, highly wear-resistant materials, enabling long-term operation in harsh industrial environments and extending the equipment’s service life.

Performance Data:

Type	Inlet and Outlet	Flow		Pressure	Speed	Suction Height	Power
Type	mm	m³/h	L/min	MPa	r/min	m	kw
ZYB4/0.6	25	4	66	0.6	960	5	1.5
ZYB7/0.6	40	7	116	0.6	960	5	3
ZYB13/0.6	50	13	216	0.6	960	5	4
ZYB13/1.0	50	13	216	1.0	960	5	5.5
ZYB18/0.6	70	18	300	0.6	960	5	7.5
ZYB18/1.0	70	18	300	1.0	960	5	11
ZYB30/0.6	80	30	500	0.6	960	5	7.5
ZYB38/0.4	100	38	633	0.4	960	5	15
ZYB45/0.6	100	45	750	0.4	960	5	18.5
ZYB60/0.6	100	60	1000	0.4	960	5	22
