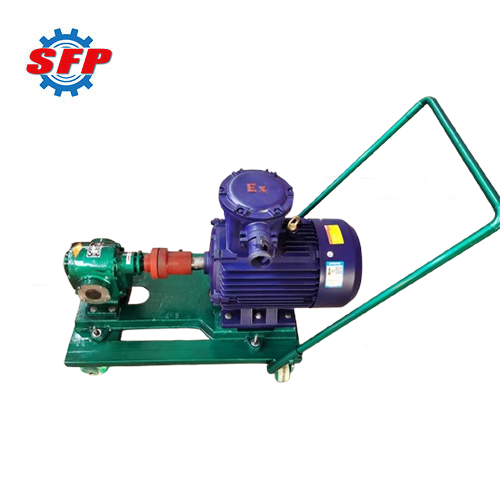

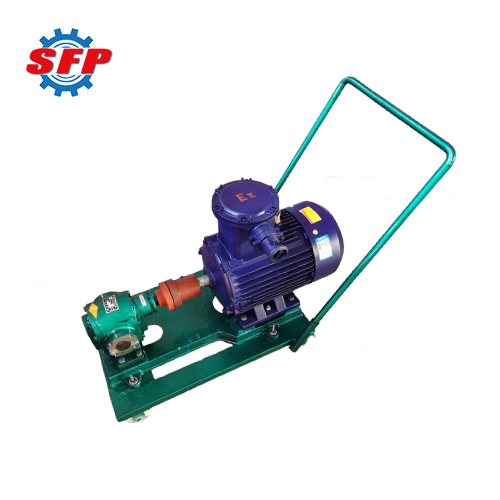

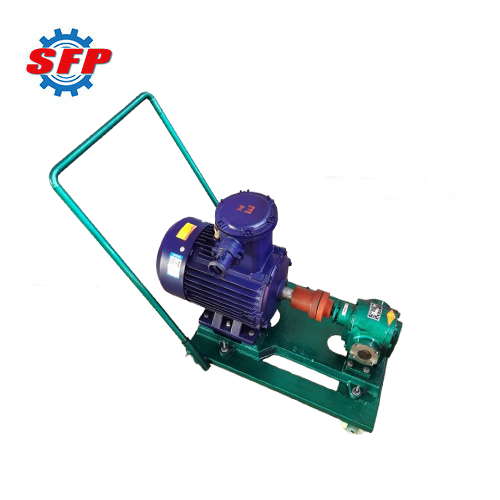

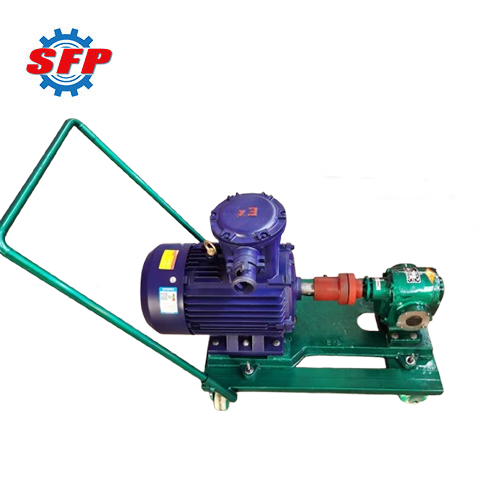

CBN gear oil pump is a medium-to-high pressure, high-efficiency external gear pump designed for conveying various viscous liquids with viscosities below 2000 mm²/s. It is suitable for use in chemical, mining, construction, and industrial automation sectors to transport media such as asphalt, rosin, paint, paraffin, soap, and high-viscosity lubricating grease. To enable prolonged continuous operation, the pump features a high-strength aluminum alloy housing and precision-engineered gear structure, achieving high efficiency and stable performance.
Product Details:
CBN series gear oil pump consists of a pump body, pump cover, gears, shaft end seals, and other components. This pump conveys fluid by utilizing the volume changes and motion of the working medium formed between the pump chamber and the meshing gears through the interaction of two or more rotating gears.
Application:
CBN series horizontal gear pumps are available for various viscous liquids and can operate under conditions where temperatures are below 230°C and viscosity is approximately 2000 mm²/s. This pump boasts a broad application range, covering coatings, rosin, paraffin wax, soap solutions, sludge, asphalt, high-viscosity oils, butter, syrups, sauce products, lubricating greases, toothpaste, pharmaceutical raw materials, and various liquid and paste-like products.
Feature:
1. Utilizing advanced gear design and manufacturing techniques, it features low friction losses and high energy conversion efficiency, enabling high-efficiency fluid transmission and reducing energy consumption in hydraulic systems.
2. This equipment delivers high flow rates and stable pressure characteristics, meeting diverse hydraulic system requirements while maintaining consistent output even in high-temperature or low-temperature environments.
3. To ensure low-noise operation, optimized tooth profiles and bearing structures keep noise levels below 75dB.
Performance Data:
| Model |
Inlet/Outlet |
Flow |
Discharge Pressure |
Motor Power |
|
mm |
m³/h |
L/min |
MPa |
KW |
| CBN-4 |
32 |
4 |
66 |
0.75 |
1.5 |
| CBN-7 |
40 |
7 |
116 |
0.75 |
3 |
| CBN-13 |
50 |
13 |
216 |
0.75 |
5.5 |
| CBN-18 |
70 |
18 |
300 |
0.6 |
7.5 |
| CBN-30 |
80 |
30 |
500 |
0.6 |
11 |
| CBN-38 |
100 |
38 |
633 |
0.6 |
15 |
| CBN-45 |
100 |
45 |
750 |
0.6 |
18.5 |
| CBN-60 |
100 |
60 |
1000 |
0.4 |
22 |
