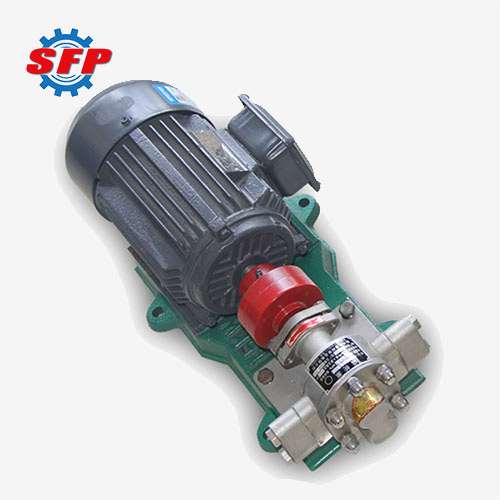

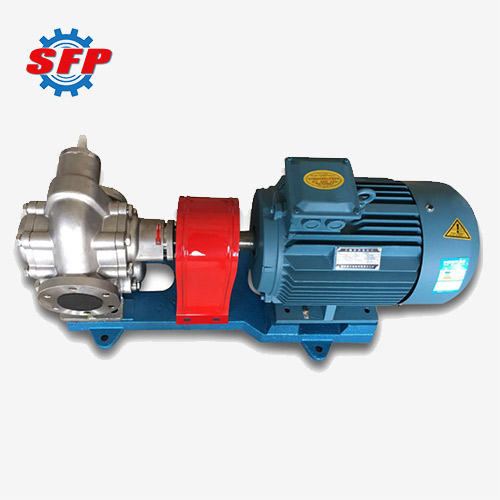

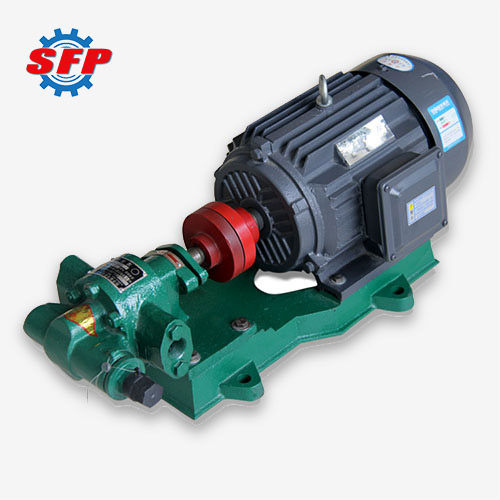

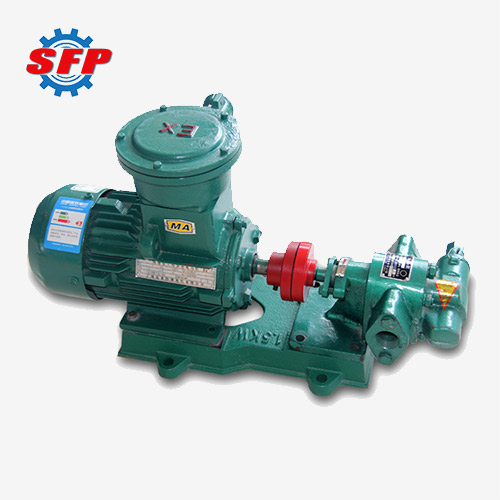

Hot oil pump KCB 1
Hot oil pump KCB 1
Hot Oil Pump Series
It is suitable for conveying lubricating oils containing no solid particles and fibers, temperatures not higher than 300 ° C, viscosity of 5-1500 cst or other liquids similar to lubricating oils and for hydraulic transmission systems. Reduce the speed of the pump, the viscosity of the transport medium can reach 5 * 100000cst.
Flow Rate: 0.6-58m3/h 10-960L/min
Pressure: 7.5/10/25bar
Applications: fuel oil,lubricating oil,engine oil,edible oil,vegetable oil
Product Description
Generally used in:



Hot oil pump can be used as:
1. Transmission and booster pump in oil transportation systems.
2. Fuel pump for conveying, pressurizing and spraying in the fuel system.
3. Hydraulic pump to provide hydraulic power in a hydraulic transmission system.
4. Lubricating oil pump in all industrial fields.

Performance Data:
Model Capacity Q Speed Exhaust pressure  Motor
M³/H L/Min R/Min Mpa Power Kw
KCB-18.3 1.1 18.3 1400 1.45 1.5
KCB-33.3 2 33.3 1420 1.45 2.2
KCB-55 3.3 55 1400 0.33 1.5
KCB-83.3 5 83.3 1420 0.33 2.2
KCB-135 8 135 940 0.33 2.2
KCB-200 12 200 1440 0.33 4
KCB-300 18 300 960 0.36 5.5
KCB-483.3 29 483.3 1440 0.36 7.5
KCB-633 38 633 970 0.28 11
KCB-960 58 960 1470 0.28 11
KCB-1200 72 1200 740 0.6 37
KCB-1600 96 1600 980 45
KCB-1800 110 1800 740 0.6 55
KCB-2500 150 2500 985 75
KCB-2850 170 2850 740 0.6 90
KCB-3800 230 3800 989 110
KCB-4100 245 4100 743 0.6 132
KCB-5400 325 5400 989 160
KCB-5600 330 5600 744 0.6 160
KCB-7600 460 7600 989 200
KCB-7000 420 7000 744 0.6 185
KCB-9600 570 9600 989 250
KCB-13000 800 13000 490 0.6 315
