Automatic BIB Filling Machine for Wine Automatic Bag In Box Filling Machine BIB Sachet Pouch Filling Machine BIB Liquid Filling Machine for Sale
  • Automatic BIB Filling Machine for Wine
  • Automatic Bag In Box Filling Machine
  • BIB Sachet Pouch Filling Machine
  • BIB Liquid Filling Machine for Sale
Automatic BIB Filling Machine for Wine
Automatic BIB Filling Machine for Wine

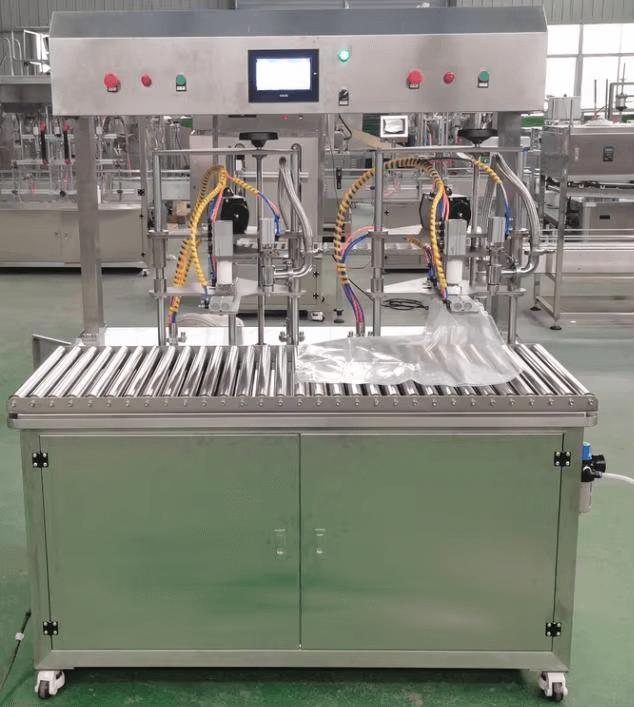

BIB Wine Pouch Filling Machine
BIB wine pouch filling machine designed to efficiently and accurately fill a variety of pasty, liquid and sauce media. Whether it is fruit juice, milk, fruit juices, alcoholic beverages, edible oils, oral liquids, shampoos, lotions, etc., this product can fulfill the filling task efficiently and accurately. The product can be widely used in food, beverage, pharmaceutical, cosmetic, chemical and other fields
Filling Precision: ±1%
Filling Speed: 220-240 bags/hour
Filling Range: 1L-30L
Product Description
Summarize:


BIB wine pouch filling machine can automatically complete the process of opening the cap, quantitative filling, vacuuming, sealing and so on.  This machine also adopts a flow meter to control the amount of material discharged each time, with high filling precision, intuitive and convenient adjustment. It is not only capable of handling regular fluid materials, but also can easily cope with high viscosity materials, including jam, cream, honey, and ketchup to ensure hygiene and safety during the production process.

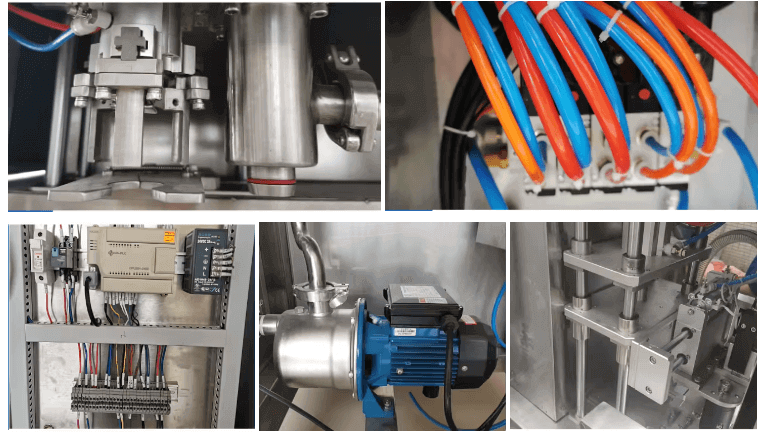

Product Details:
With the automatic bag-in-box filling machine, the boxes and bags to be filled need to be fed into the filling position and held in place by a positioning mechanism to ensure that they are stable and immobile. The filling head is then lowered and accurately inserted into the mouth of the bag, into which the material is injected according to the preset quantity. In the filling process, the machine will monitor the material flow and level in real time to ensure that the filling volume of each bag is consistent and appropriate, neither too much to cause overflow, nor too little to cause waste or underfilling phenomenon.

Application:
It is suitable for automated packaging production lines for various pasty and semi-solid foodstuffs, cosmetics, pharmaceuticals and other industries. It can be widely used in bag-in-box filling of liquid materials such as wine, fruit juice, milk, alcoholic beverage, jam, yogurt, chocolate sauce, edible oil, concentrated seasonings, creams, lotions, syrups and ointments.
Feature:
1. Adopting flow meter to measure, high filling precision and easy to adjust the filling volume.
2. Full-automatic completion of filling, cap pulling, vacuuming, quantitative filling and capping in one step.
3.The machine has vacuum function, which can be vacuumed before filling to help extend the shelf life of the product.
4. Its parts in contact with materials are made of 304# stainless steel and food grade plastic tube. It can be CIP cleaned and meets the hygiene requirements.
Performance Data:
Filling Quanity Range 1L-30L
Filling Precision ±1%
Filling Speed 220---240 bags/hour
Material Pressure ≤0.3-0.35 Mpa
Voltage AC220V/50Hz±10%/ Customized
