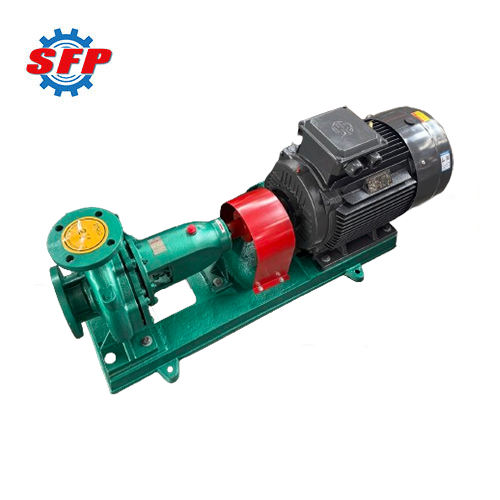

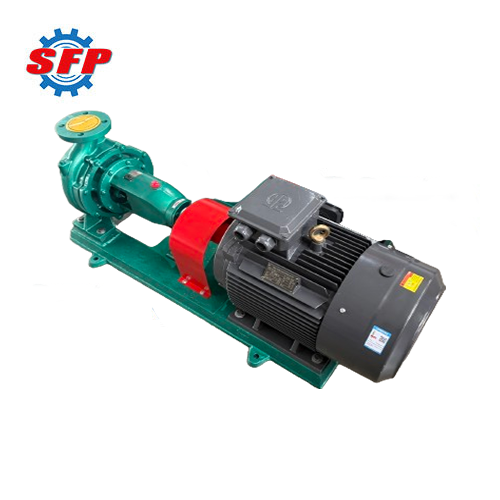

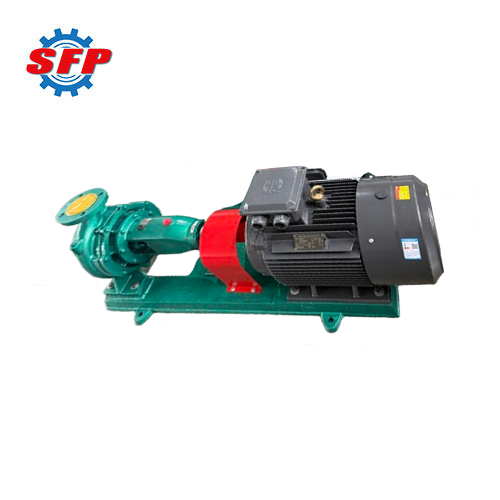

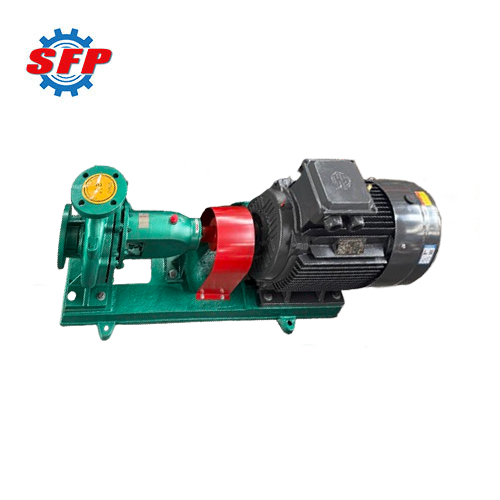

IS series centrifugal water pumps, as single-stage, single-suction centrifugal pumps, are primarily designed for conveying clean water and liquid media with physical and chemical properties similar to water, free of solid particles, and can be applied in municipal water supply and drainage, pressurized water supply for high-rise buildings, landscape sprinkler systems, seawater desalination, wastewater treatment, and other fields. With their compact structure, reliable performance, small footprint, corrosion resistance, and low energy consumption, they serve as the preferred solution for worry-free operation in clean water conveyance applications.
Product Details:
The impeller of the IS series centrifugal pump rotates at high speed driven by the pump shaft, generating powerful centrifugal force. The liquid between the blades is flung toward the outer periphery of the impeller under centrifugal force, imparting kinetic energy to the fluid. As the liquid flows through the volute-shaped passage of the pump casing, the gradually widening flow path converts part of the fluid's kinetic energy into static pressure energy, thereby achieving pressurized delivery. Simultaneously with the ejection of liquid, a low-pressure zone forms at the impeller's center. Liquid is continuously drawn into the impeller through the suction pipe. As the impeller rotates continuously, liquid is endlessly drawn in and expelled.
Application:
1. Urban Water Supply: Suitable for municipal water treatment plants, sewage treatment facilities, industrial and mining enterprises' water supply and drainage systems, as well as boosting domestic water pressure in residential areas.
2. Building Services and Fire Protection: It is applicable for chilled water circulation in high-rise building air conditioning systems, boiler feedwater makeup, and fire protection pipeline pressure boosting.
3. Industrial Processes: Employed in chemical, metallurgical, papermaking, textile, and other industries for conveying circulating water or process water during production.
4. Agricultural Irrigation: It is used for drainage and irrigation operations in farmlands, orchards, and irrigation areas, as well as for water conservancy project construction.
Feature:
1. This equipment features an advanced hydrodynamically optimized impeller and pump casing flow path design, delivering high efficiency and excellent cavitation resistance. It effectively balances axial forces, thereby reducing bearing loads and ensuring smooth operation.
2. It eliminates the need to disassemble the pump casing, suction piping, discharge piping, or motor during rotor component maintenance, significantly reducing downtime.
3. This pump series features a compact, lightweight design for easy installation and transportation, enabling effortless operation even in confined spaces.
Performance Data:
| Model |
Flow
(m³/h) |
Head
(m) |
Power
(w) |
Speed
(r/m) |
| IS50-32-125 |
12.5 |
20 |
2.2 |
3000 |
| IS50-32-160 |
12.5 |
32 |
3 |
3000 |
| IS50-32-200 |
12.5 |
50 |
5.5 |
3000 |
| IS50-32-250 |
12.5 |
80 |
11 |
3000 |
| IS65-50-125 |
25 |
20 |
3 |
3000 |
| IS65-50-160 |
25 |
32 |
5.5 |
3000 |
| IS65-40-200 |
25 |
50 |
7.5 |
3000 |
| IS65-40-250 |
25 |
80 |
15 |
3000 |
| IS65-40-315 |
25 |
125 |
30 |
3000 |
| IS80-65-125 |
50 |
20 |
5.5 |
3000 |
| IS80-65-160 |
50 |
32 |
7.5 |
3000 |
| IS80-50-200 |
50 |
50 |
15 |
3000 |
| IS80-50-250 |
50 |
80 |
22 |
3000 |
| IS80-50-315 |
50 |
125 |
37 |
3000 |
| IS100-80-125 |
100 |
20 |
11 |
3000 |
| IS100-80-160 |
100 |
32 |
15 |
3000 |
| IS100-65-200 |
100 |
50 |
22 |
3000 |
| IS100-65-250 |
100 |
80 |
37 |
3000 |
| IS100-65-315 |
100 |
125 |
75 |
3000 |
| IS100-65-315 |
100 |
125 |
11 |
1450 |
| IS125-100-200 |
200 |
50 |
45 |
3000 |
| IS125-100-250 |
200 |
80 |
75 |
3000 |
| IS125-100-250 |
200 |
80 |
11 |
1450 |
| IS125-100-315 |
200 |
125 |
110 |
3000 |
| IS125-100-315 |
200 |
125 |
15 |
1450 |
| IS125-100-400 |
100 |
50 |
30 |
1450 |
| IS150-125-250 |
200 |
20 |
18.5 |
1450 |
| IS150-125-315 |
200 |
32 |
30 |
1450 |
| IS150-125-400 |
200 |
50 |
45 |
1450 |
| IS200-150-250 |
400 |
20 |
37 |
1450 |
| IS200-150-315 |
400 |
32 |
55 |
1450 |
| IS200-150-400 |
400 |
50 |
90 |
1450 |
