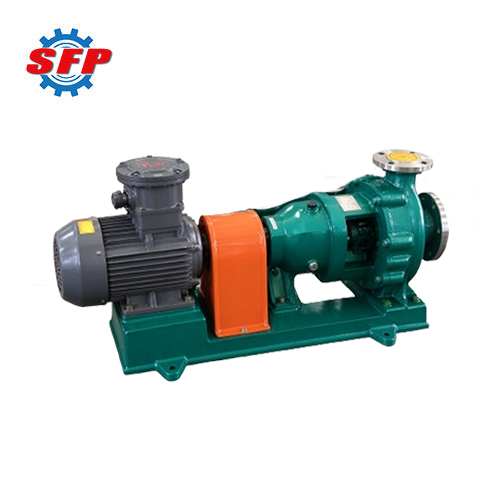

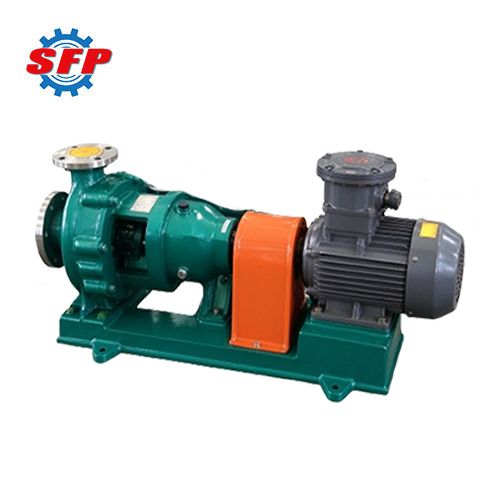

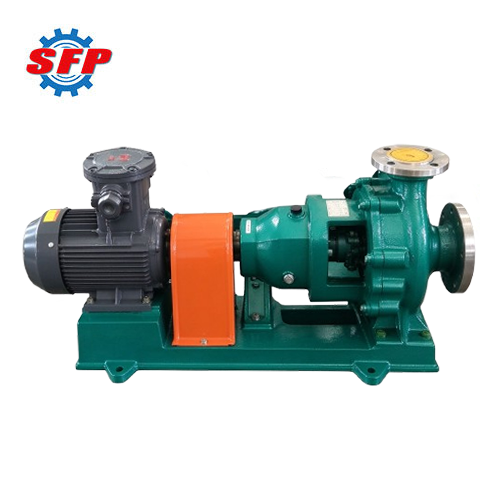

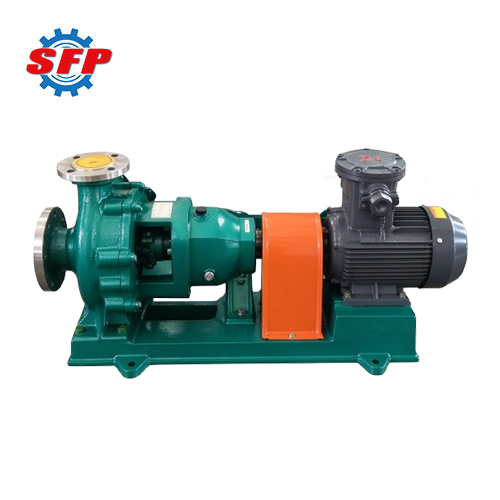

Large Quantity IH Series Single Stage Chemical Liquid Transfer Centrifugal Pumps

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

LPG Gas Pump for Sale

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Mineral Water Bottle Filling Machine

Product Description

Summarize:

IH series chemical transfer centrifugal pump is capable of pumping media such as acidic and alkaline liquids and chemical solutions that are both clean and moderately corrosive, and can also safely handle flammable, explosive, toxic, or hazardous chemical media. The internal design and material selection of this equipment minimize the impact of various industrial media on the pump body and flow-passing components, maintaining stable performance during long-term operation. Its trailing-shaft design requires less disassembly of inlet and outlet piping during maintenance, ultimately shortening equipment downtime and facilitating the continuation of production.

Product Details:

IH chemical centrifugal pumps transport liquids using the centrifugal force generated by the rotation of the impeller. When the pump is started, the motor drives the impeller to rotate at high speed, causing the liquid entering the center of the impeller to gain pressure energy due to the action of the blades and flow outward along the impeller’s flow path toward the outer edge. The continuous rotation of the impeller ensures a steady supply of liquid at the suction inlet, resulting in a stable and continuous flow rate.

Application:

IH chemical resistant centrifugal pumps deliver liquids that contain no solid particles, are corrosive, and have a viscosity similar to that of water. Therefore, they are capable of handling the transfer of acidic and alkaline liquids, chemical solutions, and certain organic media in industrial production, as well as liquid transfer in industries like petrochemicals, metallurgy, petroleum, papermaking, power generation, and environmental protection.

Feature:

1. The pump is designed and manufactured to standardized specifications, offering a degree of versatility and interchangeability.
2. Its seals, pump body, and other components can be selected based on the characteristics of the medium, its stability, and actual operating conditions, enabling the pump to perform its pumping tasks more effectively.
3. The pump's pull-back design allows for maintenance without having to move the entire pump body or the inlet and outlet piping under certain configurations, which helps reduce the complexity of maintenance work.

Performance Data:

Model	Speed	Flow (m³/h)	Flow (L/S)	Head (m)	Power
					Medium Density
					1.0	1.35	1.85
IH50-32-125	2900	12.5	3.47	20	2.2	6.0	4.0
IH50-32-125	1450	6.3	1.74	5.0	0.55	0.55	0.55
IH50-32-160	2900	12.5	3.47	32	3.0	4.0	5.5
IH50-32-160	1450	6.3	1.74	8.0	0.55	0.75	1.1
IH50-32-200	2900	12.5	3.47	50	5.5	7.5	11
IH50-32-200	1450	6.3	1.74	12.5	1.1	1.1	1.5
IH50-32-250	2900	12.5	3.47	80	11	15	18.5
IH50-32-250	1450	6.3	1.74	20	2.2	2.2	3.0
IH65-50-125	2900	25	1.53	2.0	3.0	4.0	5.5
IH65-50-125	1450	12.5	6.94	5.0	0.55	0.55	0.75
IH65-50-160	2900	25	2.78	32	5.5	7.5	11
IH65-50-160	1450	12.5	6.94	8.0	0.75	1.1	1.5
IH65-40-200	2900	25	2.92	50	11	11	15
IH65-40-200	1450	12.5	6.94	12.5	1.5	2.2	2.2
IH65-40-250	2900	25	2.92	80	15	3.0	30
IH65-40-250	1450	12.5	6.94	20	2.2	37	4.0
IH65-40-315	2900	25	3.06	125	30	5.5	55
IH65-40-315	1450	12.5	6.94	32.0	5.5	5.5	7.5
IH80-65-125	2900	50	13.9	20	5.5	7.5	11
IH80-65-125	1450	25	6.94	5.0	0.75	1.1	1.5
IH80-65-160	2900	50	13.9	32	11	11	15
IH80-65-160	1450	25	6.94	8.0	1.5	1.5	2.2
IH80-50-200	2900	50	13.9	50	15	18.5	30
IH80-50-200	1450	25	6.94	12.5	1.1	1.5	2.2
IH80-50-250	2900	50	13.9	80	30	37	45
IH80-50-250	1450	25	6.94	20	4.0	5.5	7.5
IH80-50-315	2900	50	13.9	125	45	55	75
IH80-50-315	1450	25	6.94	32	7.5	7.5	11
IH100-80-125	2900	100	27.8	20	11	15	18.5
IH100-80-125	1450	50	13.9	5.0	1.5	2.2	3.0
IH100-80-160	2900	100	27.8	32	15	22	30
IH100-80-160	1450	50	13.9	8.0	2.2	3.0	4.0
IH100-65-200	2900	100	27.8	50	30	37	45
IH100-65-200	1450	50	13.9	12.5	3.0	4.0	5.5
IH100-65-250	2900	100	27.8	80	45	55	75
IH100-65-250	1450	50	13.9	20	5.5	7.5	11
IH100-65-315	2900	100	55.6	125	75	90	132
IH100-65-315	1450	50	27.8	32	11	15	18.5
IH125-100-200	2900	200	55.6	50	45	55	90
IH125-100-200	1450	100	27.8	12.5	7.5	11	15
IH125-100-250	2900	200	55.6	80	11	110	132
IH125-100-250	1450	100	27.8	20	132	15	18.5
IH125-100-315	2900	200	55.6	125	18.5	160	220
IH125-100-315	1450	100	27.8	32	18.5	22	30
IH125-100-400	1450	100	27.8	50	18.5	30	37
IH50-125-250	1450	200	55.6	20	30	30	37
IH50-125-315	1450	200	55.6	32	30	37	55
IH50-125-400	1450	200	55.6	50	55	75	90
IH200-150-250	1450	400	111.1	20	37	55	75
IH200-150-315	1450	400	111	32	55	75	110
IH200-150-400	1450	400	111	50	90	132	160
