Product Description

Summarize:

GC series centrifugal water pump is ideal for conveying clear water and liquids similar to water in physicochemical properties, and can be used in boiler water supply of industrial and mining enterprises, urban life water supply, garden sprinkler irrigation, fire-fighting pressure boosting, and long-distance conveying and other fields. The pump has the advantages of sturdy structure, smooth operation, stable conveying, small pulse, strong self-absorption ability, etc. It is also irreplaceable by any other pumps, and can realize multi-phase conveying of liquid, gas and solid.

Product Details:

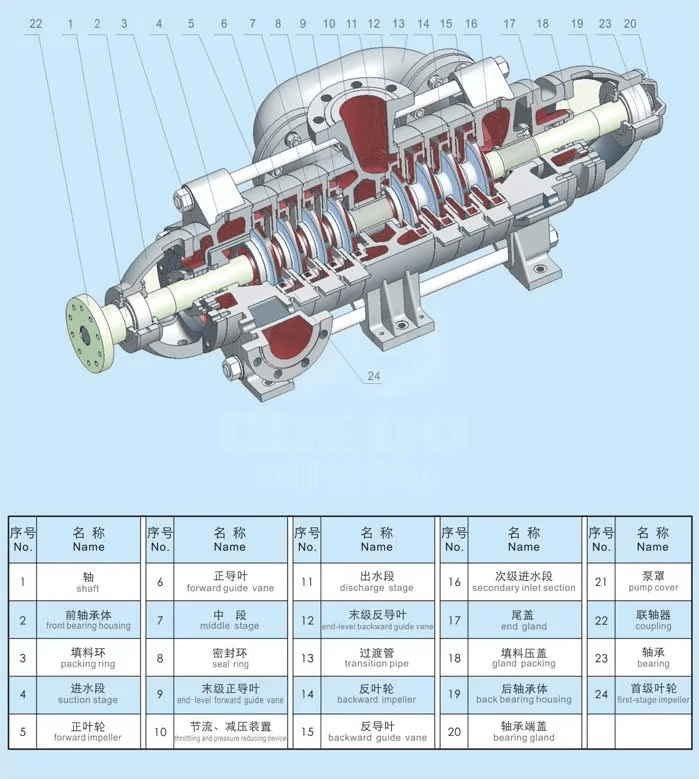

GC series centrifugal pumps are horizontal single suction multi-stage centrifugal pump, which structural design enables the pumps to transport liquids smoothly during operation. When the motor drives the impeller to rotate, the water in the impeller rotates with it, and under the action of centrifugal force, the water is thrown to the edge of the impeller, thus forming a vacuum in the center of the impeller. In the vacuum state, the water is sucked into the center of the impeller from the suction pipe and finally discharged through the outlet pipe.

Application:

It is especially suitable for small boiler water supply, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire fighting pressure boosting, water washing, food, brewing, medicine, chemical industry, aquaculture, environmental protection, chemical process and machine tool supporting and other industries, as water supply and drainage power equipment. Next show some of the media often transported.
1. Handling viscous paste, emulsified paste, uncoated cosmetics, etc.
2. It can transport residual oil, oil water and oil residue in oil tanker.
3. To convey viscous starch, edible oil, honey, syrup, puree, cream and other leftovers.
4. For conveying slurries in brewing, construction, mining, printing, paper making and other industries.
5. In industrial wastewater and domestic wastewater, as well as muddy water containing solid particles and short fibers.

Feature:

1. The sealing performance of the pump is reliable, ensuring that the pump has no leakage during operation, improving the safety of the pump and environmental protection.
2. Adopting advanced hydraulic model, high efficiency, wide range of performance, can effectively reduce energy consumption.
3. Its shaft seal adopts soft packing seal, which is safe, reliable, simple structure, and convenient and quick maintenance.
4. This pump runs smoothly with low noise, so that reducing the impact on the environment.
5. With segmented structure, easy to disassemble and repair, reduce maintenance costs.

Performance Data:

Type	Capacity (m3/h)	Head (m)	Power (KW)
1.5GC-5*2	6	46	3
1.5GC-5*3	6	69	4
1.5GC-5*4	6	92	5.5
2GC-5*2	10	64	7.5
2GC-5*3	10	96	11
2GC-5*4	10	128	15
2.5GC-6*2	15	62	7.5
2.5GC-6*2	20	54	7.5
2.5GC-6*3	15	93	11
2.5GC-6*3	20	81	11
2.5GC-6*4	15	124	15
2.5GC-6*4	20	108	15
4GC-8*2	30	86	22
	45	82
	55	76
4GC-8*3	30	129	30
	45	123
	55	144
4GC-8*4	30	172	45
	45	164
	55	152
5GC-8*2	72	138	55
	90	129
	110	120
5GC-8*2A	72	122	55
	90	144
	110	106
5GC-8*2B	72	117	45
	90	110
	110	102
