Product Description

Summarize:

CYZ fuel centrifugal pump is a kind of self-priming centrifugal pump developed according to international technical data and are commonly used for conveying fuel oil, diesel oil, kerosene, gasoline and other mediums that do not contain solid particles and have a temperature of not more than 80℃. The product has become the preferred equipment for petroleum industry, land oil depot and tanker trucks due to its smooth operation, easy maintenance and strong self-priming ability.

Product Details:

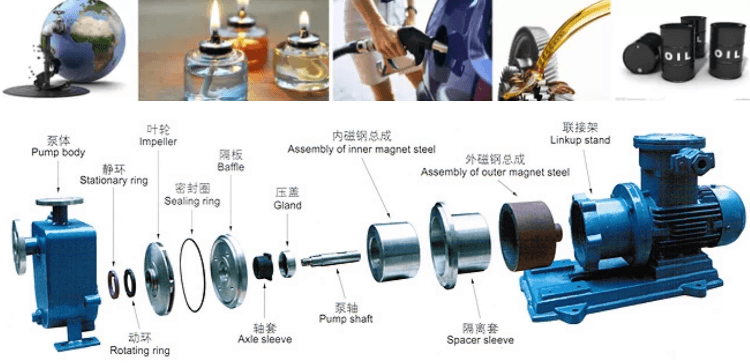

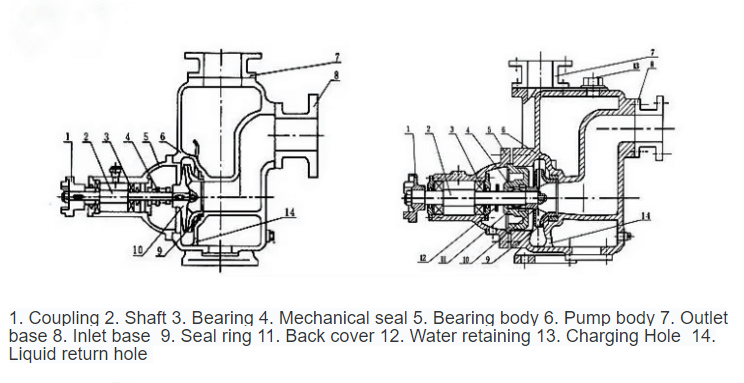

CYZ series self-priming oil pumps are composed of suction chamber, liquid storage chamber, vortex chamber, return liquid hole, gas-liquid distribution chamber and so on. When the product is started, the high-speed rotation of the impeller will generate centrifugal force, which will throw the liquid out from the center of the impeller and then into the vortex chamber of the pump body. In the vortex chamber, the speed of the liquid gradually decreases and the pressure gradually increases, and then it is discharged through the discharge pipe. At the same time, due to the rotation of the impeller will form a certain vacuum in the center of the impeller, and the external liquid is sucked into the pump body under the action of atmospheric pressure, thus realizing the continuous suction and discharge process.

Application:

CYZ series centrifugal oil transfer pumps can transport fuel oil, diesel oil, kerosene, gasoline and other media which do not contain solid particles and the temperature does not exceed 80℃. It is an ideal product for petroleum industry, onshore oil depots and tankers, and can also be used in cargo oil pumps, bilge pumps, fire pumps and ballast pumps of ships and cooling water circulation of machines.

Advantage:

1. Its main features have simple structure, easy operation and maintenance, stable work, high efficiency, long service life and good self-absorption performance. That means the users can start the pump without complicated operation.
2. The pump body and impeller of the machine are refined with high quality materials, and the seal adopts hard alloy mechanical seal. Therefore, it effectively prolongs the service life and reduces the downtime.
3. There if no safety valve is needed in the output line and no bottom valve is needed in the suction line, simplifying the piping system and improving the working conditions.
4. The use of the pump can give full play to its advantages, improve the efficiency and quality of work, and ensure the saving of time and material resources.

Performance Data:

Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Port(mm)
Model	Flow m3/h	Head m	Self Priming m	Revolution(r/min)	Power(KW)	Inlet	Outlet
25CYZ-20	3.2	20	6.5	2900	0.75	25	25
25CYZ-32	3.2	32	6.5	2900	1.1	25	25
40CYZ-20	6.3	20	6.5	2900	1.1	40	32
40CYZ-40	10	40	6.5	2900	4	50	40
50CYZ-12	15	12	6.5	2900	1.5	50	50
50CYZ-20	18	20	6.5	2900	2.2	50	50
50CYZ-35	14	35	6.5	2900	4	50	50
50CYZ-40	10	40	6.5	2900	4	50	50
50CYZ-50	12.5	50	6.5	2900	5.5	50	50
50CYZ-60	15	60	6.5	2900	7.5	50	50
50CYZ-75	20	75	6.5	2900	11	50	50
65CYZ-15	30	15	6.5	2900	3	65	50
65CYZ-32	25	32	6	2900	5.5	65	50
80CYZ-13	35	13	6	2900	3	80	65
80CYZ-17	43	17	6	2900	4	80	65
80CYZ-22	40	22	6	2900	5.5	80	65
80CYZ-25	50	25	6	2900	7.5	80	80
80CYZ-32	50	25	6	2900	7.5	80	80
80CYZ-55	60	25	6	2900	18.5	80	80
80CYZ-70	60	70	6	2900	22	80	80
100CYZ-20	100	20	6	2900	11	100	80
100CYZ-40	100	40	6	2900	22	100	100
100CYZ-40A	100	40	6	1470	22	100	80
100CYZ-65	100	65	6	2900	30	100	100
100CYZ-75	70	75	6	2900	30	100	100
150CYZ-45	170	45	5	2900	37	150	100
150CYZ-55	160	55	5	2900	45	150	100
150CYZ-65	170	65	5	2833	55	150	100
150CYZ-80	160	80	5	1450	55	150	100
200CYZ-63	280	63	5	1450	90	200	150
250CYZ-50	400	50	5	1480	90	250	200
300CYZ-50	500	50	5	1450	110	300	250
300CYZ-55	550	55	5	1450	132	300	250
