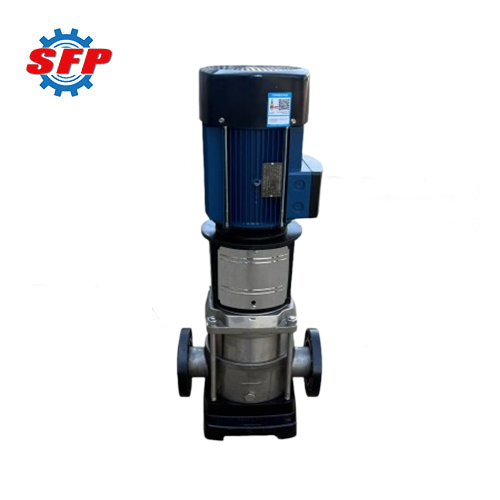

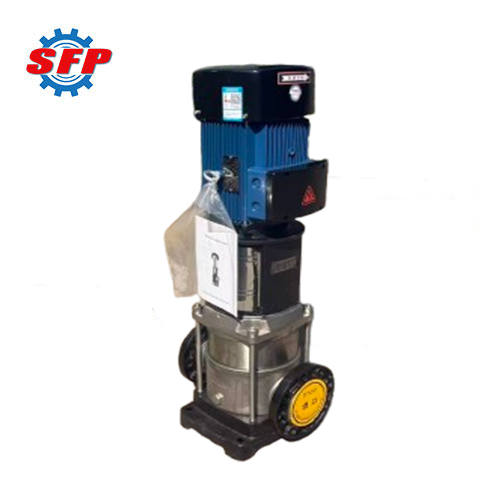

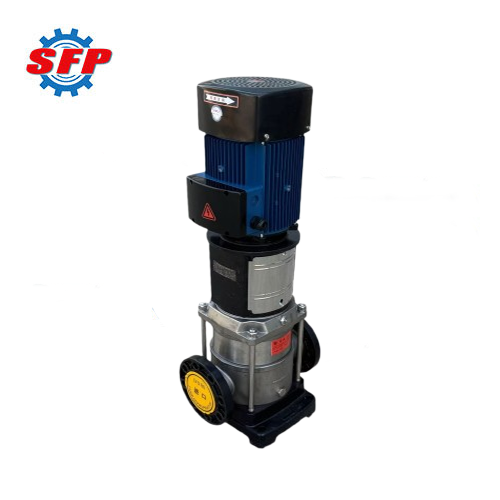

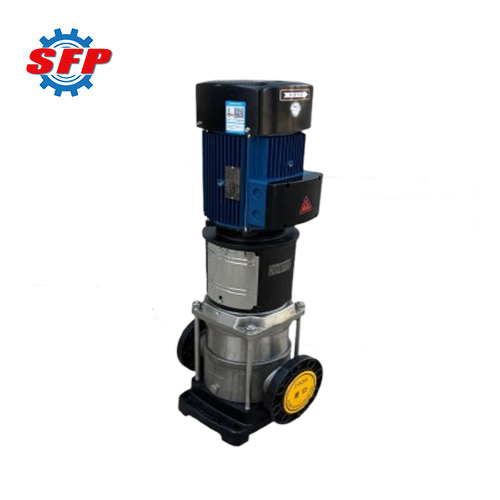

CDL series centrifugal pumps mainly serve to boost pressure, transport, and circulate clean water and low-viscosity liquids with physical and chemical properties similar to those of clean water. Through continuous energy transfer between multiple impellers, this series enables the liquid to achieve a high delivery head within a limited equipment space, effectively meeting the diverse requirements of industrial production regarding water supply pressure, delivery distance, and system operational continuity. These pumps are highly practical for use in industrial water supply, water treatment equipment, building pressure boosting, boiler makeup water, and process water systems.
Product Details:
CDL series centrifugal pumps primarily consist of a motor, pump shaft, impeller, pump casing, shaft seal, and other key components. The motor drives multiple impellers to rotate synchronously via the pump shaft, causing the liquid entering the pump casing to convert part of its kinetic energy into pressure energy under the centrifugal force generated by the impellers. As the liquid passes through the impeller and the flow-guiding structures, pressure gradually builds up, ultimately delivering the liquid from the discharge port to the target pipeline. This method is effectively utilized for projects involving the delivery of water to higher floors, long-distance water supply lines, or industrial equipment with specific pressure requirements.
Application:
1. In building water supply systems, CDL multistage centrifugal pumps can be used for pressure boosting in high-rise buildings, as well as for secondary pressure boosting in domestic water supply networks and downstream of water storage equipment.
2. In agricultural irrigation and landscaping water supply systems, this series is used for boosting pressure in pipelines requiring a certain head and for the conveyance of clean water.
3. Within the water treatment industry, these pumps can be integrated into processes such as filtration, ultrafiltration, and reverse osmosis for feedwater supply or pressure boosting.
4. It can be applied in the industrial manufacturing sector for the conveyance of process water, high-pressure washing, and auxiliary water supply systems.
Feature:
1. The inlet and outlet of this series are arranged on the same horizontal plane, facilitating installation and integration into suitable piping systems.
2. Compared to horizontal equipment, which occupies more floor space, the vertical multistage design helps reduce construction costs for projects with limited space.
3. The CDL series of multistage centrifugal pumps feature a vertical design, with multiple hydraulic components arranged vertically, enabling high head output within a limited floor space.
4. It allows for the optimal configuration of motor power, protective devices, and control systems, thereby reducing the risk of equipment damage caused by overloads, dry running, or abnormal operating conditions.
