Product Description

Summarize:

ZX series horizontal centrifugal pump is a single-stage single-suction self-priming centrifugal pump with simple structure, smooth operation, high efficiency, low noise, smooth operation and strong self-priming ability. It can be used to convey clear water, sewage, seawater, light oil, acid and alkali as well as chemical liquids in chemical, petroleum, metallurgy, construction, pharmaceutical, electric power, mining and other industries. This pump has a simple structure design and does not need to install a bottom valve on the pipeline, thus simplifying the pipeline system and improving the working conditions.

Product Details:

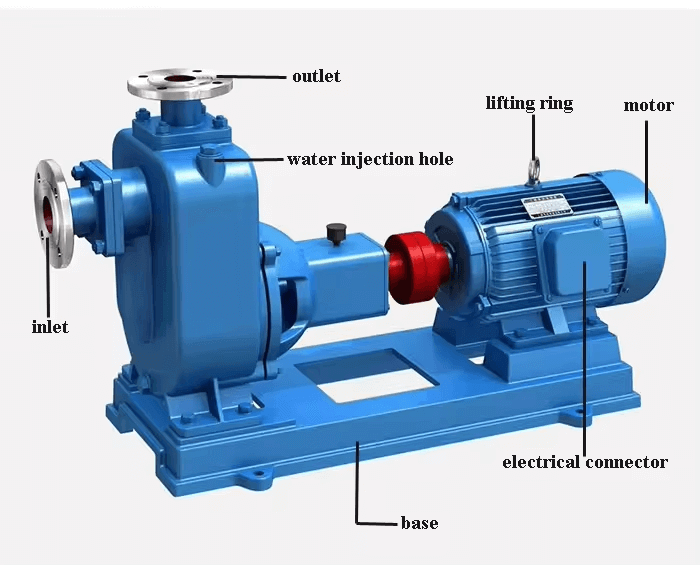

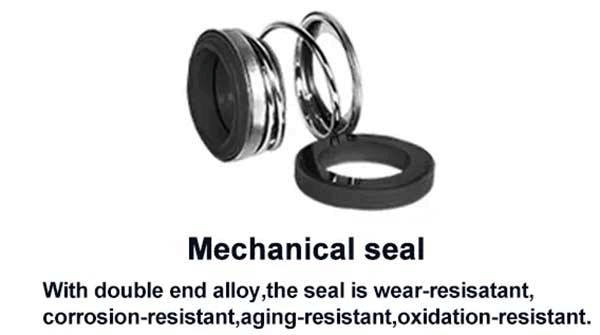

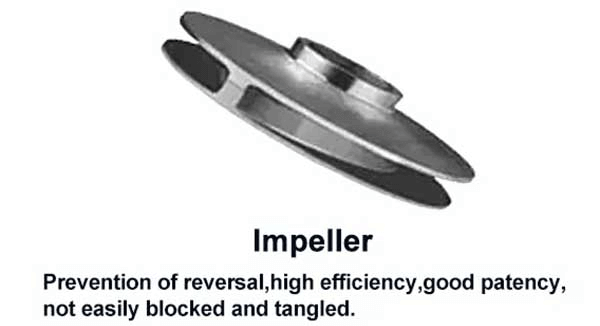

ZX series centrifugal pump is a new type of high efficiency and energy saving centrifugal pump, which adopts international advanced design software development. It has single-stage single-suction cantilever structure, mainly composed of pump body, impeller, seal, bearing and coupling and other components. The pump can throw the liquid to the outer edge of the scroll chamber by centrifugal force, and then discharged through the outlet of the pump body. The rotation of the impeller converts the mechanical energy of the motor into the kinetic energy and pressure energy of the liquid, thus realizing the transportation of the liquid.

Application:

1. It is suitable for urban environmental protection, construction, fire protection, chemical, pharmaceutical, dyestuff, printing and dyeing, brewing, electric power, electroplating, papermaking, petroleum, mining, equipment, cooling, oil tanker drainage and other industries.
2. This machine is applicable for handling clear water, seawater, acidic and alkaline chemical media liquid and general paste (medium viscosity ≤ 100PCT, solid content does not exceed 30%) slurry.
3. The pump can be installed with rocker type nozzle to spray water into the air and then into small rain spots. It is a good helper for farms, nurseries, orchards and tea gardens.
4. It can be used with any type and specification of filter press, and it is the most ideal pump type to be fed into the filter for pressure filtration.

Advantage:

1. This pump is not designed with a backstop valve, so it has a simple structure, reliable operation, long trouble-free working time, and easy maintenance and use.
2. With strong self-priming ability, it can quickly self-priming without disassembling the pump inlet and outlet pipelines.
3. The product runs smoothly and has low noise, so it can be used in occasions with strict environment.
4. It adopts advanced hydraulic model with high efficiency and remarkable energy-saving effect.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	M3/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
