Analysis of the Reasons for Self-Priming in the ZX Self-priming Centrifugal Pumps
2025-08-04 16:36:05
Read:
Share:

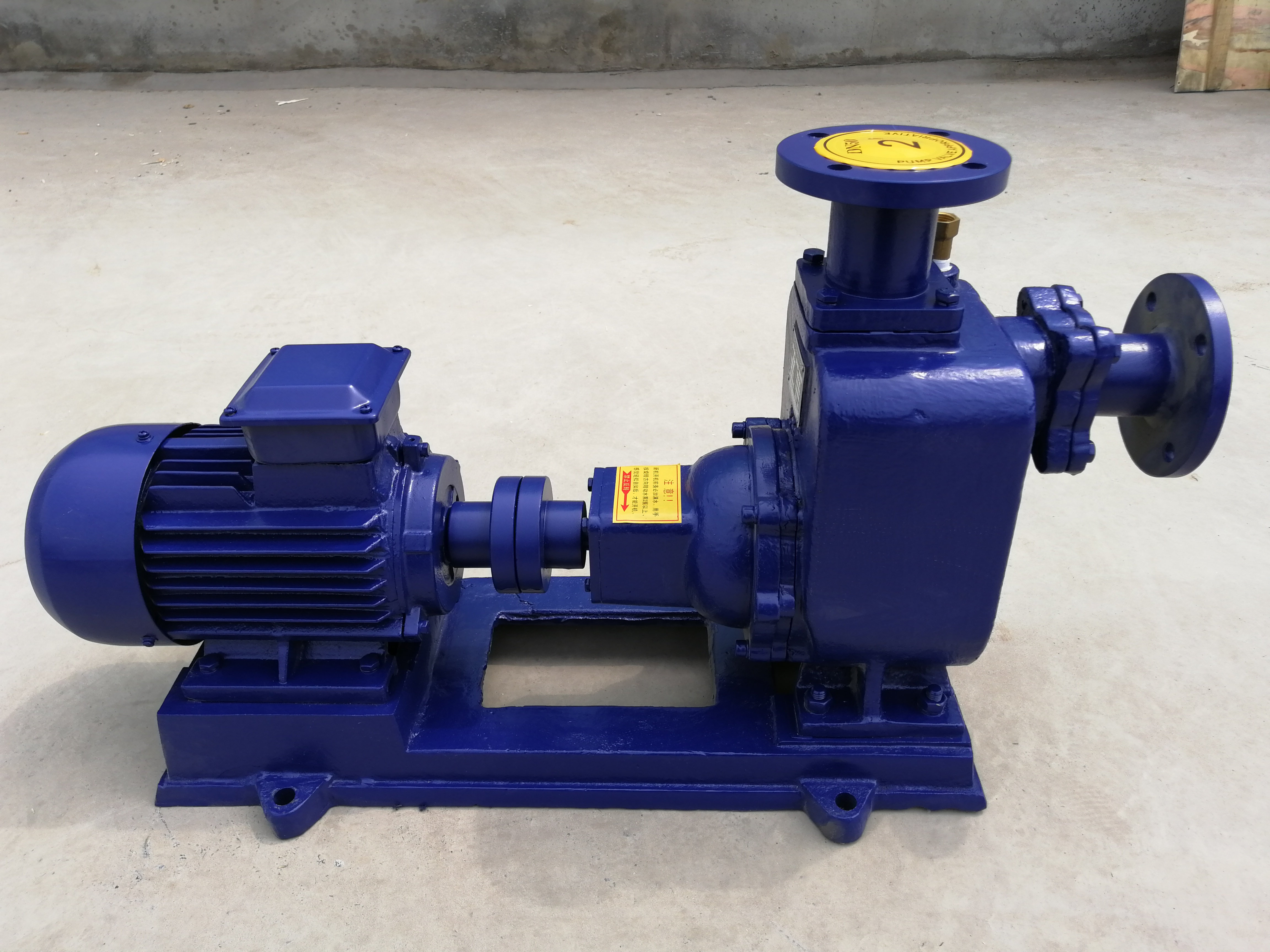

ZX series self-priming centrifugal pumps are specifically designed for pumping clean water, seawater, viscous slurries, and liquids containing acidic or alkaline chemical media. Additionally, this pump can self-prime and initiate normal pumping operations without requiring an external priming liquid, provided there is a sufficient amount of priming water stored within the pump. This design not only enables the pump to perform excellently in challenging conditions such as inconvenient working locations or media containing a high concentration of suspended particles, but simplifies its piping system. However, how does the pump achieve self-priming? Let us now reveal the secret behind its self-priming capability.
It pump's ability to self-prime stems primarily from its internal design and operating principle. Typically, the impeller inside a centrifugal pump generates centrifugal force through high-speed rotation, drawing liquid into the pump body from the inlet and then pushing it toward the outlet through the flow channels. However, if there is no liquid stored inside the pump initially, the impeller cannot generate sufficient centrifugal force to draw in liquid, so internal design features are required to enable the self-priming process.
ZX series self priming transfer pump features a negative pressure zone at the outlet of the pump body, commonly referred to as the self-priming chamber. When the pump is started, the impeller begins to rotate, causing the air within the self-priming chamber to be expelled and forming a low-pressure zone. Simultaneously, atmospheric pressure forces liquid into the self-priming chamber, creating a mixture of liquid and gas. As the impeller rotates at high speed, this mixture is flung toward areas with greater centrifugal force, causing the gas to be gradually expelled from the pump body while the liquid is pushed into the pump interior.
Additionally, the ZX series self-priming pump is equipped with a recirculation pipe inside the pump body, which redirects part of the high-speed rotating liquid back to the self-priming chamber. This step further enhances the mixing of liquid and gas, facilitating the expulsion of gas and the smooth intake of liquid into the pump body. By continuously repeating this cycle, the pump gradually completes the liquid flow, ultimately achieving self-priming and performing the pumping operation. ZX series centrifugal water pumps adopt an axial liquid recirculation pump body structure, endowed with robust self-priming capability. Therefore, it is only necessary to ensure that the pump body contains a sufficient amount of priming water prior to operation. This design simplifies the piping system and improves operational conditions. It is suitable for scenarios where the vertical height of the inlet water level is lower than the vertical height of the pump inlet, preventing liquid from flowing into the pump cavity by gravity. ZX series centrifugal pumps achieve self-priming by utilizing the negative pressure zone generated by the impeller's rotation and the recirculation pipeline. This design is particularly advantageous in specific applications where the vertical height of the incoming liquid is lower than the vertical height of the pump inlet, providing convenience and reliability for fluid conveyance.
