New Model DBY Series Electric Chemical Diaphragm Pumps
2025-04-23 17:40:11
Read:
Share:

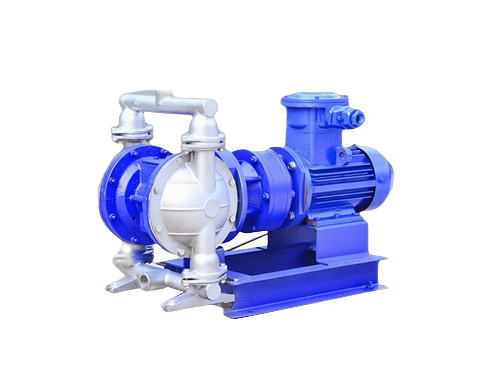

DBY series electric operated diaphragm pump is a positive displacement pump that combines the advantages of self-priming pumps, submersible pumps, slurry pumps and other delivery pumps. It has the characteristics of stable fluid delivery, strong self-priming ability, low viscosity of the delivered fluid, low vibration and low noise. This pump is available for handling various corrosive, particle-carrying, high-viscosity, volatile, flammable, explosive, and highly toxic liquids. It is usually widely used in many industries such as petrochemicals, coatings, wastewater treatment, chemicals, food, brewing, medicine, ceramics, textiles, and papermaking. It can provide a suction range of 6-8m, a head of 15-130m, and a flow rate of 2-40h/m³, which can meet the needs of different users for flow and head.
DBY series diaphragm pump adopts a cycloidal pinwheel reducer drive, which drives the double diaphragm to reciprocate through the crankshaft slider mechanism, so that the volume of the working chamber changes alternately, thereby achieving continuous suction and discharge of the liquid. At the same time, a new diaphragm design is adopted, which can completely separate the pumped medium from the transmission mechanical parts of the pump, so the transported medium will not leak out, and the service life is greatly extended, thereby reducing environmental pollution and equipment failure caused by shaft seal leakage. DBY series horizontal diaphragm pump has good passing performance, and can pass the maximum particle diameter of 10mm, so it can easily handle media containing impurities such as particles and mud. The pump also has excellent self-priming ability, does not require water injection, and the self-priming capacity can be as high as 8m. It can quickly self-prime and put into production, and is suitable for various complex production conditions. In addition, the pump has a reasonable design, compact structure, small size, light weight, easy installation and disassembly, so it can be installed and used in a relatively narrow space. In addition, the diaphragm of this product can be divided into a variety of materials such as chloroprene rubber, fluororubber, nitrile rubber, polytetrafluoroethylene, Teflon (F46), etc., and the appropriate diaphragm can be selected according to the different media to be transported to meet the requirements of different users. Moreover, the motor is also divided into ordinary motors, explosion-proof motors, reduction motors, etc. to meet the requirements of different working environments and media. DBY series electric diaphragm transfer pump is a new type of energy-saving product. With its excellent self-priming ability, stable operation, low noise, leak-free transportation, and efficient transportation, it has become an important transportation equipment in petrochemical, chemical, electric power, food, medicine, textile and other industries. Feel free to consult our staff for getting latest price.
