Product Description

Summarize:

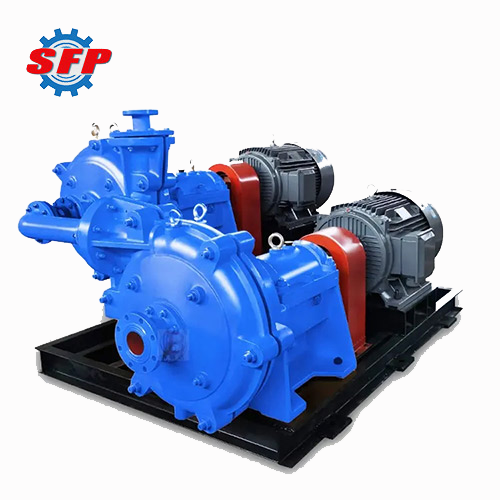

ZJ series heavy duty slurry pump belongs to horizontal single-stage single-suction centrifugal slurry pump, which is used to deal with abrasive slurry containing solid particles. And by virtue of high efficiency and durability, strong corrosion resistance, reasonable operation, low noise and other points, so that it has become the first choice in the field of power plant ash removal, coal processing plant and heavy media coal processing, coastal river mining operations to transport slurry and so on.

Product Details:

ZJ series slurry centrifugal pump is a single-stage single-suction centrifugal slurry pump with simple structure and easy maintenance. The pump generates centrifugal force through the rotation of the impeller, sucks the slurry containing solid particles from the axial direction, then throws the slurry to the edge of the pump casing under the action of centrifugal force, and finally discharges it from the outlet.

Application:

ZJ series heavy duty slurry pump can be widely used in mining, electric power, metallurgy, coal, environmental protection and other industries to transport slurry containing abrasive solid particles. It can also meet the transport requirements of metallurgical plant slurry transport, thermal power plant ash removal, coal washing plant coal slurry and heavy media transport, river dredging, river dredging, etc.

Feature:

1. Adopting the international advanced design theory, designed according to the principle of minimum loss, so that the shape of the overflow parts and the slurry flow state reaches the ideal state, improving the efficiency of the pump.
2. Its overflow parts are made of high hard wear-resistant cast iron alloy or anti-abrasive high chromium wear-resistant alloy, which has high anti-abrasive, corrosion-resistant and high-strength impact-resistant properties, prolonging the service life of the pump.
3. The pump body adopts internal and external bimetallic structure, the outer pump casing is generally made of ductile cast iron, and the inner casing is made of high chromium anti-abrasive cast iron or cast steel, which is convenient for replacing the over-flow parts.

Performance Data:

Model	Capacity （m3/h）	Head（m）	Speed（r/min）	Power（kw）
40ZJ-I-A17	9	44.6	2900	5.5
	18	42.7		7.5
	23	39.3		7.5
50ZJ-I-A33	26	42.5	1480	15
	40	410.0		18.5
	54	34.5		18.5
50ZJ-I-A46	48	85.8	1480	45
	77	82.3		55
	94	79.9		55
50ZJ-I-A50	57	110.7	1480	75
	91	105.5		75
	111	99.8		90
65ZJ-I-A27	42	28.2	1460	11
	56	27.5		11
	71	25.9		11
65ZJ-I-A30	47	34.8	1460	11
	62	33.9		15
	79	32.0		15
80ZJ-I-A33	90	43.2	1780	30
	128	40.3		30
	174	35.9		37
80ZJ-I-A36	98	51.4	1480	30
	140	48.0		37
	190	42.7		45
80ZJ-I-A39	121	60.7	1480	45
	158	57.9		55
	189	55.4		55
100ZJ-I-A33	119	41.6	1480	30
	202	37.8		37
	205	36.5		45
100ZJ-I-A36	130	18.2	1480	37
	220	16.6		55
	245	16.0		55
