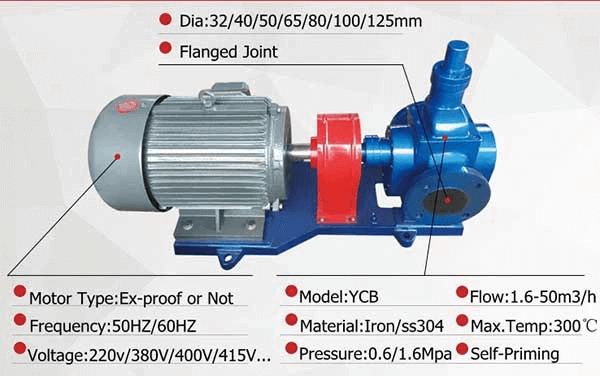

YCB series asphalt gear oil pump adopts double arc sinusoidal curve tooth design, so that there is no relative sliding of the teeth when the gears mesh, and there is no abrasion of the tooth surface. The equipment also features smooth operation, no trapped liquid phenomenon, low noise and high efficiency. Thus, it is the preferred equipment for transporting lubricating oil with temperature not higher than 300°C, non-corrosive lubricating oil with viscosity 5-1500cst or other similar lubricating liquids in chemical, petroleum and pharmaceutical industries.
Product Details:

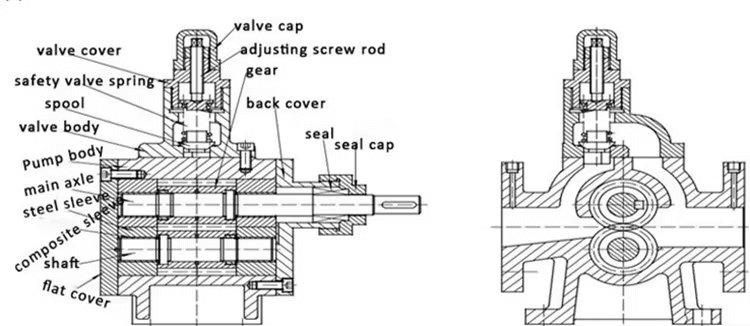

YCB series gear oil pump is mainly composed of gears, shafts, pump body, pump cover, bearing sleeve, shaft end seal and other components. The pump conveys liquid through the change of working volume between the pump casing and meshing gears. When the gears rotate in a specific direction, the volume of the cavity on the gear meshing side changes from small to large, forming a vacuum to draw in the liquid, and the volume of the cavity on the gear meshing side changes from large to small, squeezing the liquid into the discharge pipe.
.png)
.png)
Application:
YCB arc gear oil pumps are suitable for conveying lubricating oil or other liquids with properties similar to lubricating oil without corrosive solid particles and fibers, at a temperature of not more than 200°C, and with a viscosity of 5-1500 cst. If it is necessary to transport high temperature media of 200-300 °C, it is necessary to change the process.
1. It is suitable for be used as lubricating oil pump in all industrial fields.
2. This machine can be used as transmission pump, pressurizing pump and injection pump in fuel system.
3. YCB series diesel gear pump can be used as transmission pump and booster pump in oil transmission system.
4. This machine is can be used as hydraulic pump to provide hydraulic power for hydraulic transmission system.
Feature:
1. It adopts a dual rotary design, thus allowing the discharge end to be replaced.
2. The machine's circular design allows for smooth and efficient oil delivery, thus increasing overall productivity.
3. The use of reliable materials and advanced technology ensures high machine performance even under harsh working conditions.
4. With compact construction and durable materials reduce downtime and lower maintenance costs throughout the life of the machine.
Performance Data:
| Model |
Flow (m3/h) |
Presure (Mpa) |
Rev (r/min) |
Npshr (m) |
Frequency (hz) |
YCB0.6-0.6 |
0.6 |
0.6 |
910 |
5.5 |
50 |
| 1 |
1390 |
50 |
| 0.7 |
1130 |
60 |
| 1.2 |
1710 |
60 |
YCB0.6-1.6 |
0.6 |
1.6 |
910 |
7 |
50 |
| 1 |
1400 |
50 |
| 0.7 |
1130 |
60 |
| 1.2 |
1710 |
60 |
YCB1.6-0.6 |
1.6 |
0.6 |
910 |
5.5 |
50 |
| 2.5 |
1400 |
50 |
| 1.9 |
1130 |
60 |
| 3 |
1710 |
60 |
YCB1.6-1.6 |
1.6 |
1.6 |
940 |
7 |
50 |
| 2.5 |
1440 |
50 |
| 1.9 |
1150 |
60 |
| 3 |
1750 |
60 |
YCB3.3-0.6 |
3.3 |
0.6 |
940 |
5 |
50 |
| 5 |
1420 |
50 |
| 4 |
1150 |
60 |
| 6 |
1730 |
60 |
YCB3.3-1.6 |
3.3 |
1.6 |
960 |
7 |
50 |
| 5 |
1440 |
50 |
| 4 |
1170 |
60 |
| 6 |
1750 |
60 |
YCB4-0.6 |
4 |
0.6 |
940 |
5 |
50 |
| 6 |
1420 |
50 |
| 4.8 |
1150 |
60 |
| 6 |
1730 |
60 |
YCB4-1.6 |
4 |
1.6 |
960 |
7 |
50 |
| 6 |
1440 |
50 |
| 4.8 |
1170 |
60 |
| 7.2 |
1750 |
60 |
YCB8-0.6 |
8 |
0.6 |
960 |
5 |
50 |
| 12 |
1440 |
50 |
| 9.6 |
1170 |
60 |
| 14.4 |
1750 |
60 |
YCB8-1.6 |
8 |
1.6 |
970 |
7 |
50 |
| 12 |
1460 |
50 |
| 9.6 |
1170 |
60 |
| 14.4 |
1760 |
60 |
YCB10-0.6 |
10 |
0.6 |
960 |
5 |
50 |
| 15 |
1440 |
50 |
| 12 |
1170 |
60 |
| 18 |
1750 |
60 |
YCB10-1.6 |
10 |
.1.6 |
970 |
7 |
50 |
| 15 |
1470 |
50 |
| 12 |
1170 |
60 |
| 18 |
1770 |
60 |
