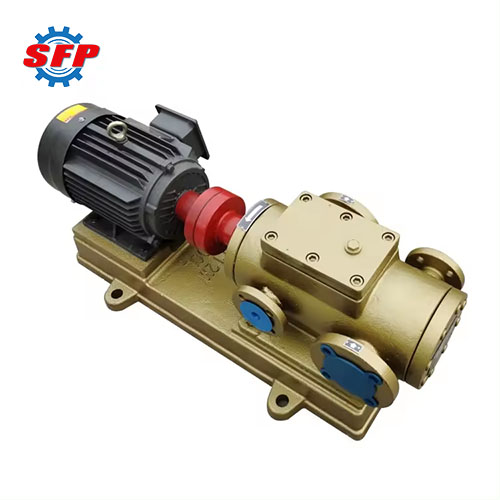

B2B 3GB Series Heat Insulation Three Screw Asphalt Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

Automatic Mineral Water Water Bottle Filling Machine

Mineral Water Bottle Filling Machine

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

3GB asphalt three screw pump is a rotor-type volumetric pump, which can be used for conveying all kinds of non-solid particles, non-corrosive, lubricating media, such as fuel oil, lubricating oil, heavy oil, hydraulic oil and other media. With its high speed, simple structure, low pressure pulsation, low noise, high efficiency, etc., it has become the preferred equipment for conveying various lubricating media in petrochemical, electric power, metallurgy and other industries.

Product Details:

3GB series screw oil pumps make use of the screw meshing principle, relying on the rotating screws meshing with each other in the pump casing to enclose the conveying medium in the gear cavity and push it continuously and uniformly along the axial direction of the screws to the outlet, providing stable pressure for the system. In addition, the pumps are available in insulated and non-insulated structures, which can be selected according to user needs.

Application:

3GB series bitumen insulation screw pump is suitable for transferring various non-corrosive oils and similar oils, such as fuel oil, lubricating oil, hydraulic oil, heavy oil, asphalt and other similar oils. The viscosity of the transport liquid is generally 30-760mm/s, and high-viscosity media can be transported by heating and viscosity-reducing, and the temperature typically does not exceed 350 °C. It is widely used in petroleum, chemical fiber, metallurgy, machinery, electric power, machine tools, ships, glass, highways and other industries.

Feature:

1. The liquid is continuously conveyed in the direction of thrust without agitation and the sealing chamber operates as an infinite piston, high suction ranges can be easily ensured without cavitation.
2. Since the rotating element has only three rotors, is relatively small and rotates by liquid pressure, it ensures natural, smooth and quiet operation even at high speeds and pressures.
3. The liquid is enclosed in a chamber sealed by the rotor and sleeve and proceeds continuously from suction to discharge without pulsation or agitation.
4. Internal leakage losses are also low through precision machining of the rotating elements.

Performance Data:

Model	Flow		Pressure Mpa	Speed r/min	Power KW		NPSHr (m)
Model	m3/h	L/min	Pressure Mpa	Speed r/min	Shaft	Motor	NPSHr (m)
90*2-42	28.2	470.9	0.6	950	6.6	11	5.5
	27.5	457.6	1.0	950	10.2	15
	43.1	718.8	0.6	1450	10	15
	41.9	698.5	1.0	1450	15.5	18.5
90*2-46	34.0	566.7	0.8	950	9.7	11	5.5
	52.6	875.4	0.6	1450	12	15
	520	866	0.8		14.9	18.5
	51.4	8561	1.0		18.6	22
100*2-46	48.0	800	0.8	950	13.3	15	5.5
	72.7	1212	0.6	1450	165	18.5
	72.0	1200	0.8		20.4	22
	71.2	1187	1.0		25.5	30
100*2-51	56.9	948.9	0.6	950	12.5	15	5.5
	55.7	928.6	1.0	950	20.8	30
	86.9	1448.3	0.6	1450	19.1	22
	850	1417.2	1.0	1450	31.8	37
110*2-46	60.9	1015	0.6	950	13.7	18.5	5.5
	58.9	951.7	1.0	950	21.8	30
	96.7	1611	0.6	1450	21.9	30
	94.6	1577	1.0	1450	33.9	45
120*2-42	67.9	1131	0.6	950	15.5	18.5	5.5
	65.4	1090	1.0	950	24.5	30
	108	1802	0.6	1450	24.7	30
	105	1760	1.0	1450	38.2	45
120*2-46	79.6	1327	0.6	950	17.8	22	5.5
	77.2	1285	1.0	950	28.2	37
	126	2101	0.6	1450	28.5	37
	123	2059	1.0	1450	44.1	55
150*2-46	158	2640	0.6	950	34.6	45	5.5
	154	2582	1.0	950	54.5	75
	241.7	4029.7	0.6	1450	53.8	7590
	236.5	3942.2	1.0	1450	82.2
